B. Hardware Installation
1. Connector Instruction

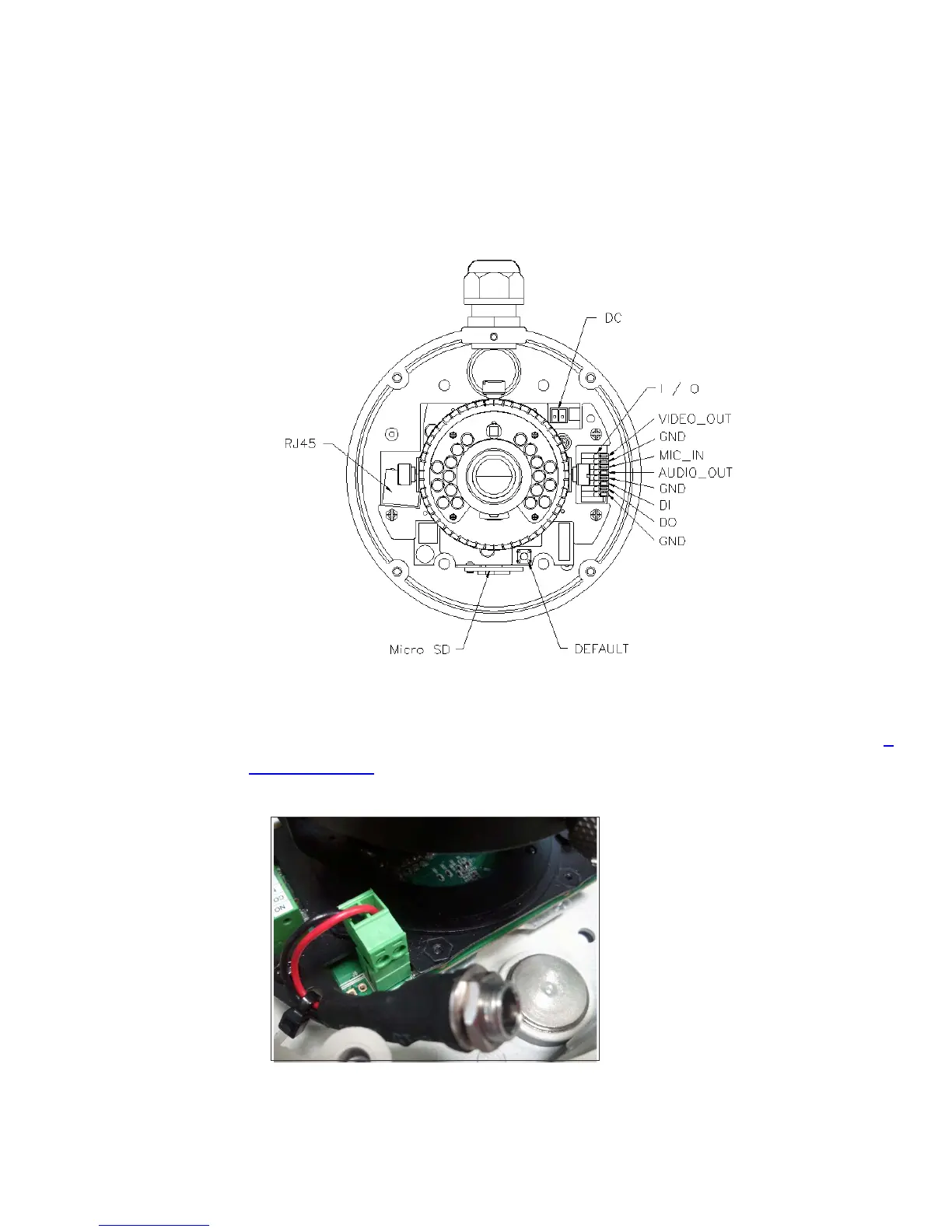

Remove the dome cover, and you will see the structure as below.
Connect power adaptor first, then connect the IP Camera to PC or
network, and set up the network configurations according to the network
environment. About I/O setting, please refer to chapter VII in User Manual: "I/
O Configuration
" for detail.
The following picture shows a DC 12V connector for adapter jack plug.
2. Vandal Dome Installation Tips
In order to ensure IP66 waterproof level, please install the vandal dome
according to the instruction.
a. The Unused cable outlet hole must be closed, and the waterproof
connector on the used hole must be locked closely.
