FINEPLACER
®
lambda
Rev-Nr. 1.1
The base plate rests on foot screws which are used to level it.
Align the base plate in a way that it slightly slopes backwards, away from the
operator.
The incline should be between 0.1 mm/m and 0.3 mm/m.
Use a circular level for alignment.
Alternatively, use a spirit level.
Make sure there is no horizontal tilt.
The table should always slowly slide away from the operator towards the machine
when the air cushion is activated. After adjusting the angle of slope, test this
movement carefully with both hands on the positioning table.

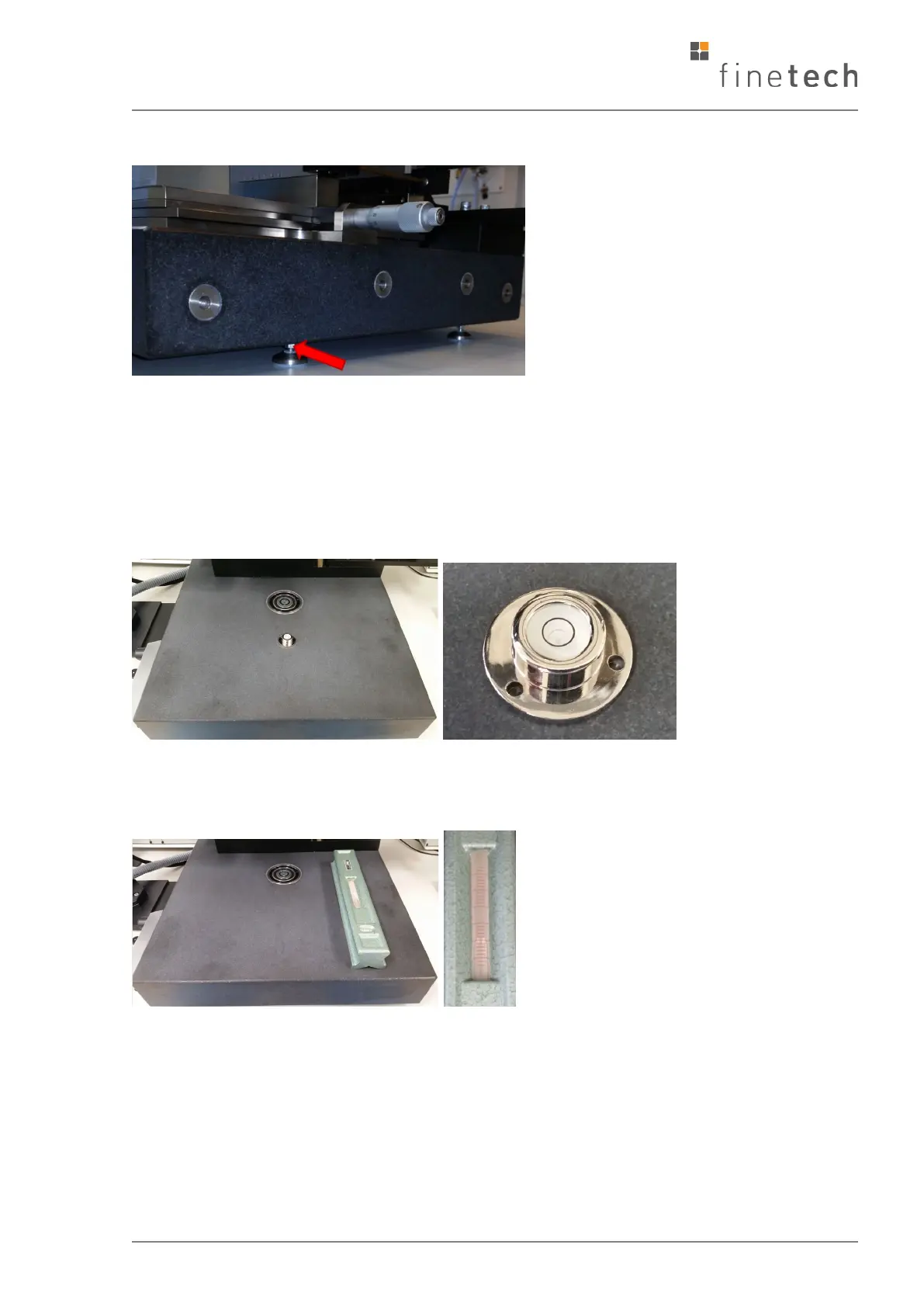

Example: Machine base plate, adjusted with spirit level
Example: Machine base plate, adjusted with circular level
