finetech FINEPLACER lambda - Operating Principle, Method of Working and System Features

FINEPLACER
®
lambda
Rev-Nr. 1.1
6
2.2 Operating Principle, Method of Working and System
Features
The patented advanced Vision Alignment System of the lambda is based on the
principle of imaging two orthogonal images simultaneously into one common image
plane, using a stationary beam splitter (30) and a single beam deflection (see fig. 1):

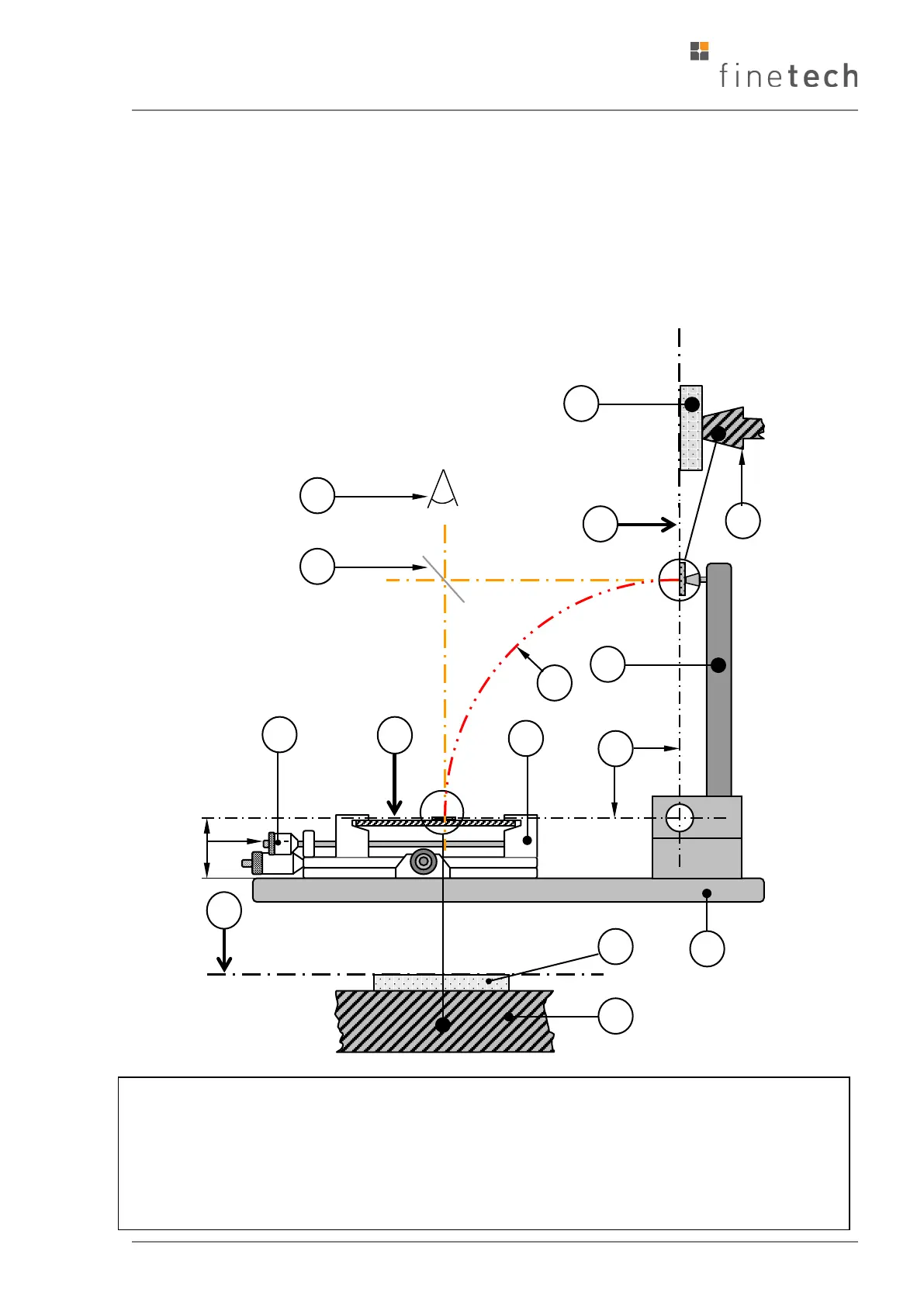

Fig. 1: Operating principle of A6/A7 (sketch of the lateral view, right hand side)
A Observation point (camera) B Working level
C Bottom glass scale or substrate D Surface of the heating
E UAP Upper Arm Position F Top glass scale or component
H Working level and UAP must form angle of 90°
A
F
H
30
C
B
51a
E
B
70
D
27
29
G
20
