3.2.4 Placer Control Box
The Placer Control Box is an essential part of any FINEPLACER
Basic Module. It
generates and reacts to all signals for operating the placer, as well as supplying it
with compressed air and a vacuum.
The Placer Control Box contains the following basic functional groups:
1. mains connection
2. displays and operating elements
3. generation of vacuum for fixing devices and compressed air for the
positioning table air cushion
4. placer support, consisting of:
• lighting control
• supervision of pivot arm

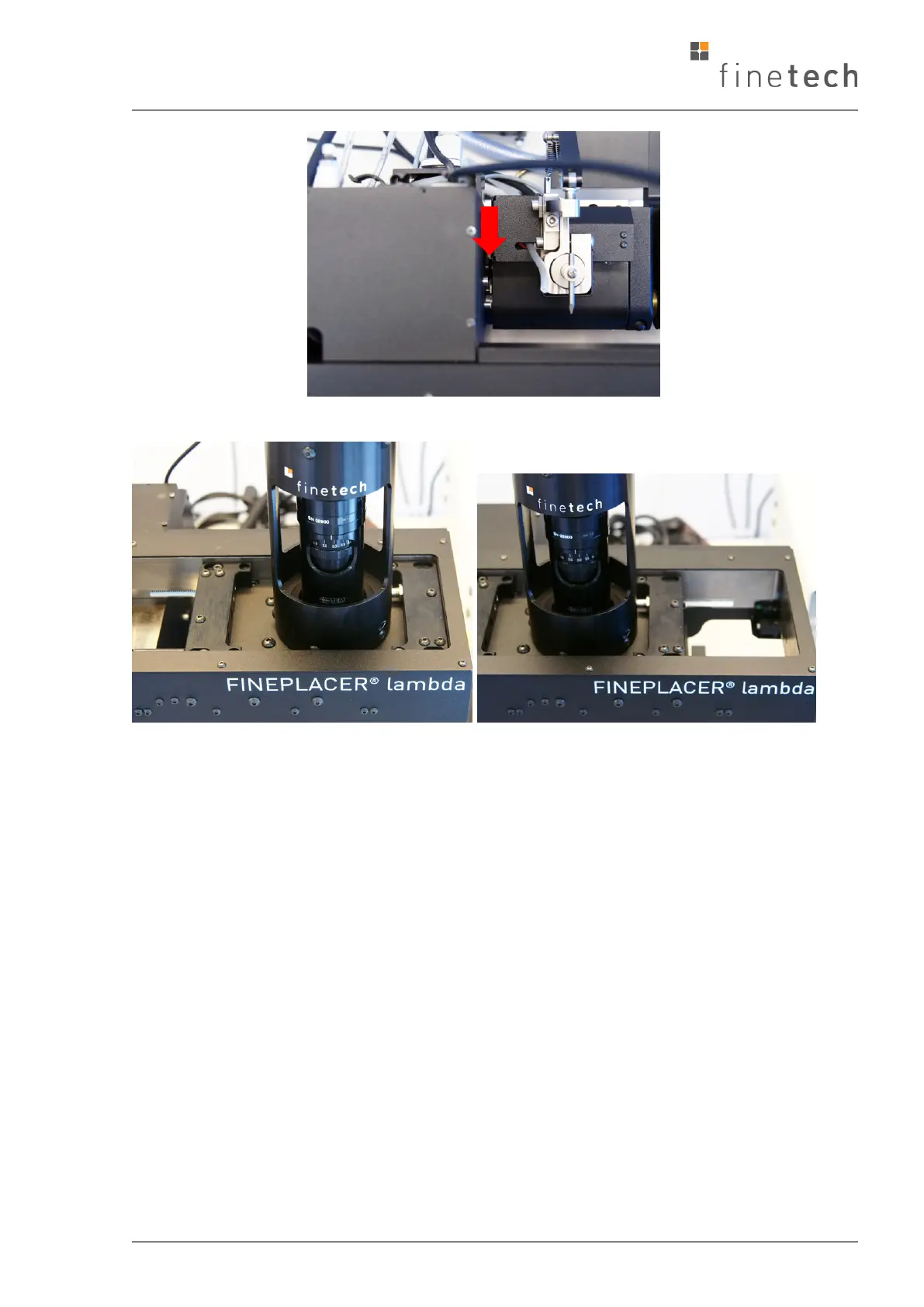

Optics shifting in swivel position. Pivot arm
can be swivelled down.
Optics shifting in working position (each
position apart from swivel position).
Pivot
arm cannot be swivelled down.
