FINEPLACER

lambda

Rev-Nr. 1.1

5 Operating Instructions

The following instructions assume that you are informed and fully aware of the

function of the equipment (see chapter 3) and of the safety instructions (see chapter

2) and that the FINEPLACER

has been calibrated and checked out (see chapter

4.2).

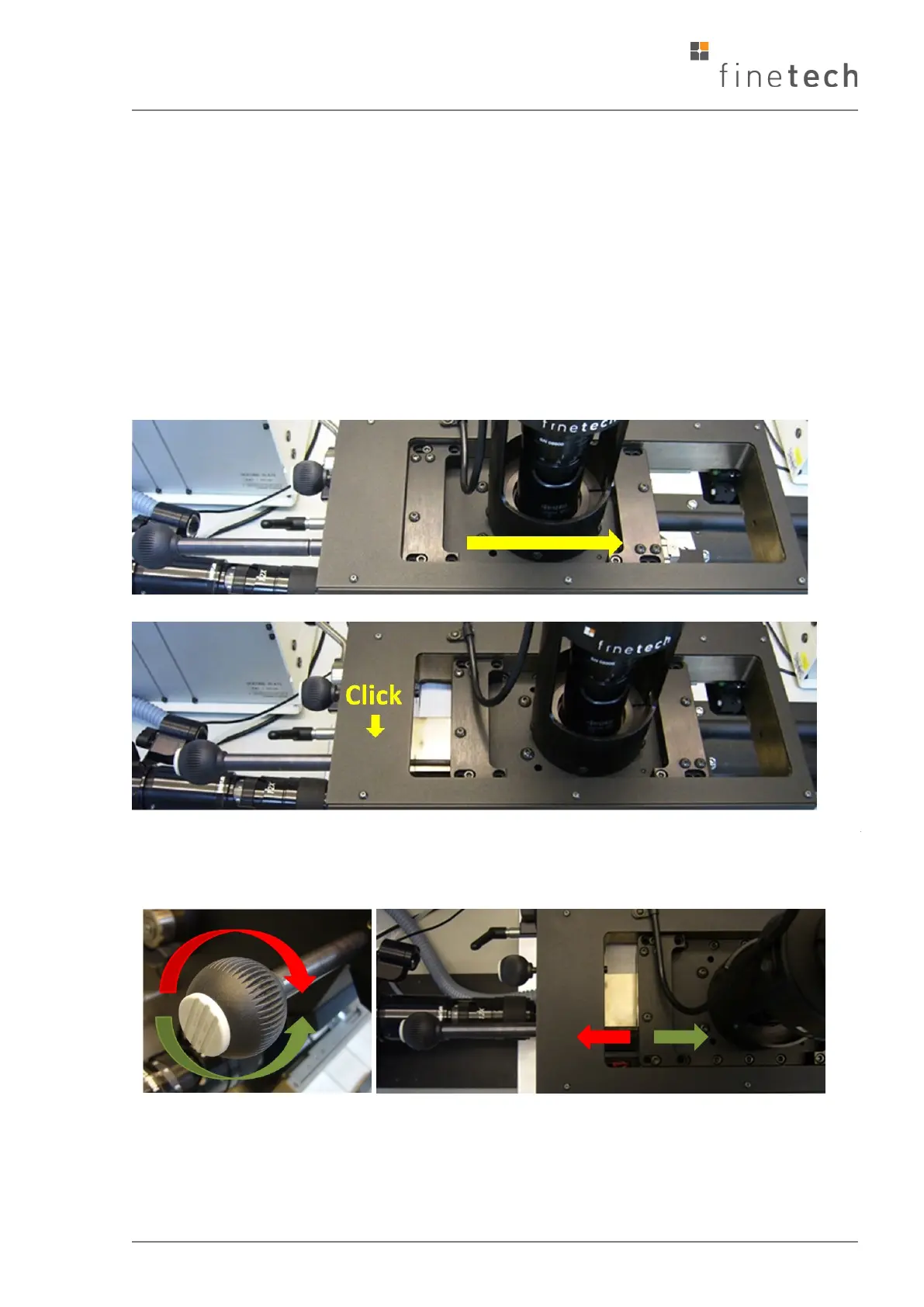

5.1 Adjustable lock position for the manual optics shifting

The manual optics shifting has a lock position to restore an optics position.

After the optics shifting locks into the right position you can adjust this position by

rotating the slider.
