FINEPLACER
®
lambda
Rev-Nr. 1.1
9. Double check the orientation by using the parallelism adjustment tool with a
spacer or reflecting light, as described under 6.
10. As soon as the orientation is adjusted, tighten the fixing screws on the back
side.

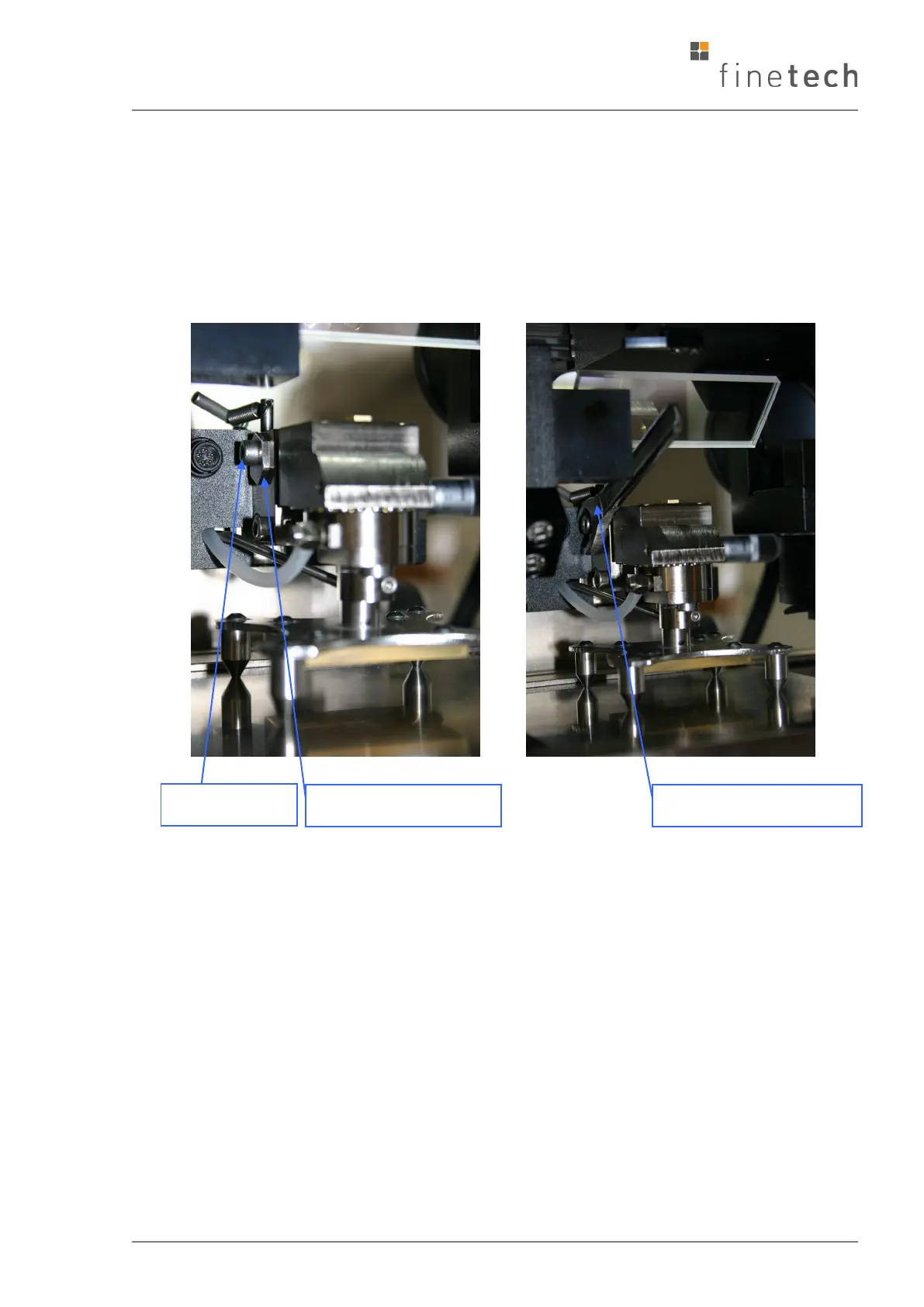

11. For rotating the tool holder around the x axis, loosen the fixing screw on the
left side of the placement arm counter clockwise.
12. Use a wrench size 13 mm to rotate the tool holder around the x axis.
13. Check the orientation by using the parallelism adjustment tool with a spacer or
reflecting light, as described under 6.
14. As soon as the orientation is adjusted, tighten the side fixing screws 1 and 2.
15. Never forget to remove the four leg parallelism adjustment tool.
16. Reconnect the 25 pin connector on the back side of the swivel module.
17. Switch on the system and, in case of a motorized machine, re-initialize it.
