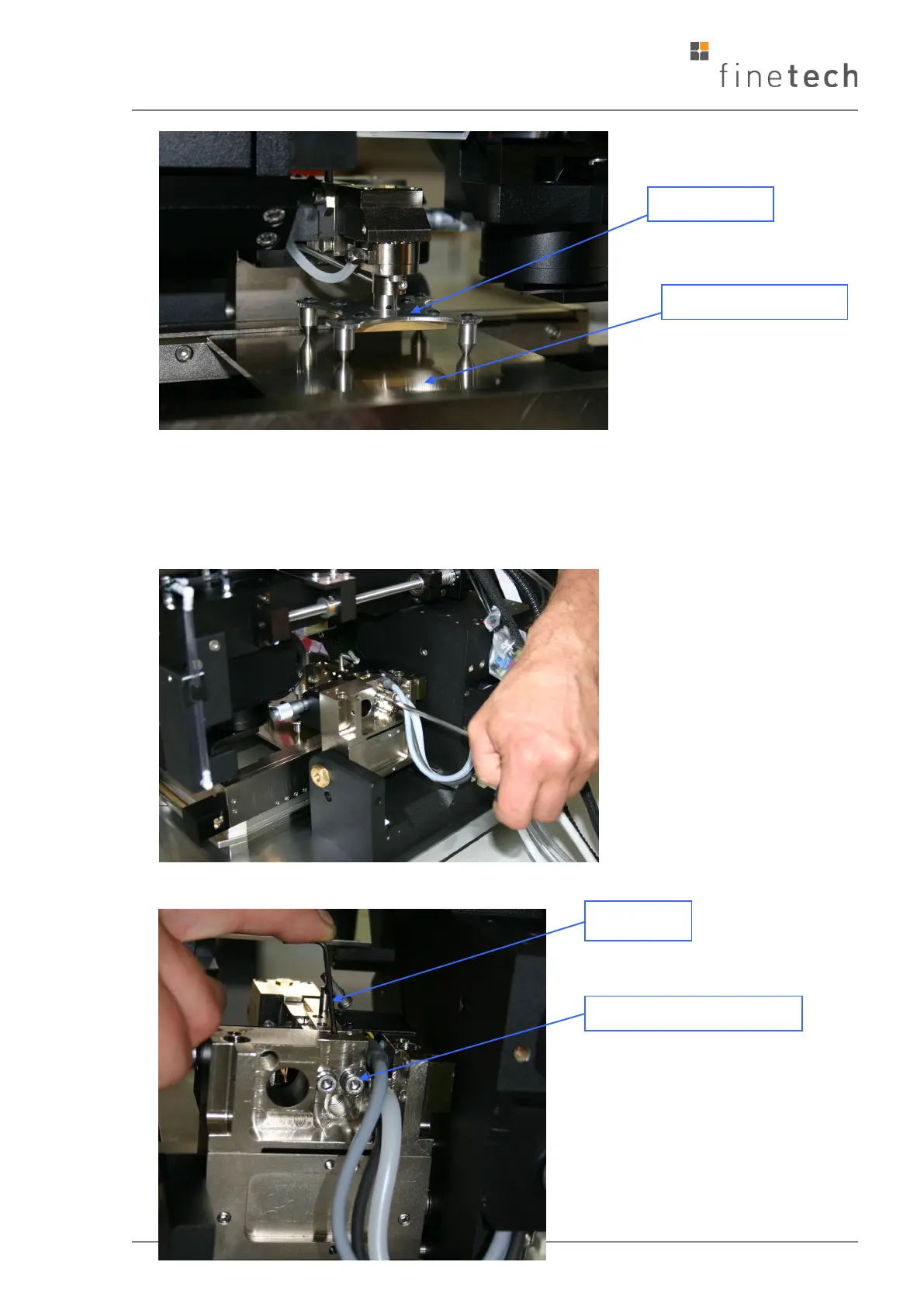

6. Check the parallelism by using a 50 µm spacer or a light reflection that can be
viewed through a gap under one or more legs (all four legs need to be in
contact with the plate).
7. For rotating the tool holder around the y axis, loosen the fixing screws at the
back of the placement arm counter clockwise.
8. Use an Allen key to rotate the placement arm around the y axis.
