Finn 5 Series - Axle, Wheel and Tire Assembly

MB50 MU0518 Rev. A
47
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE

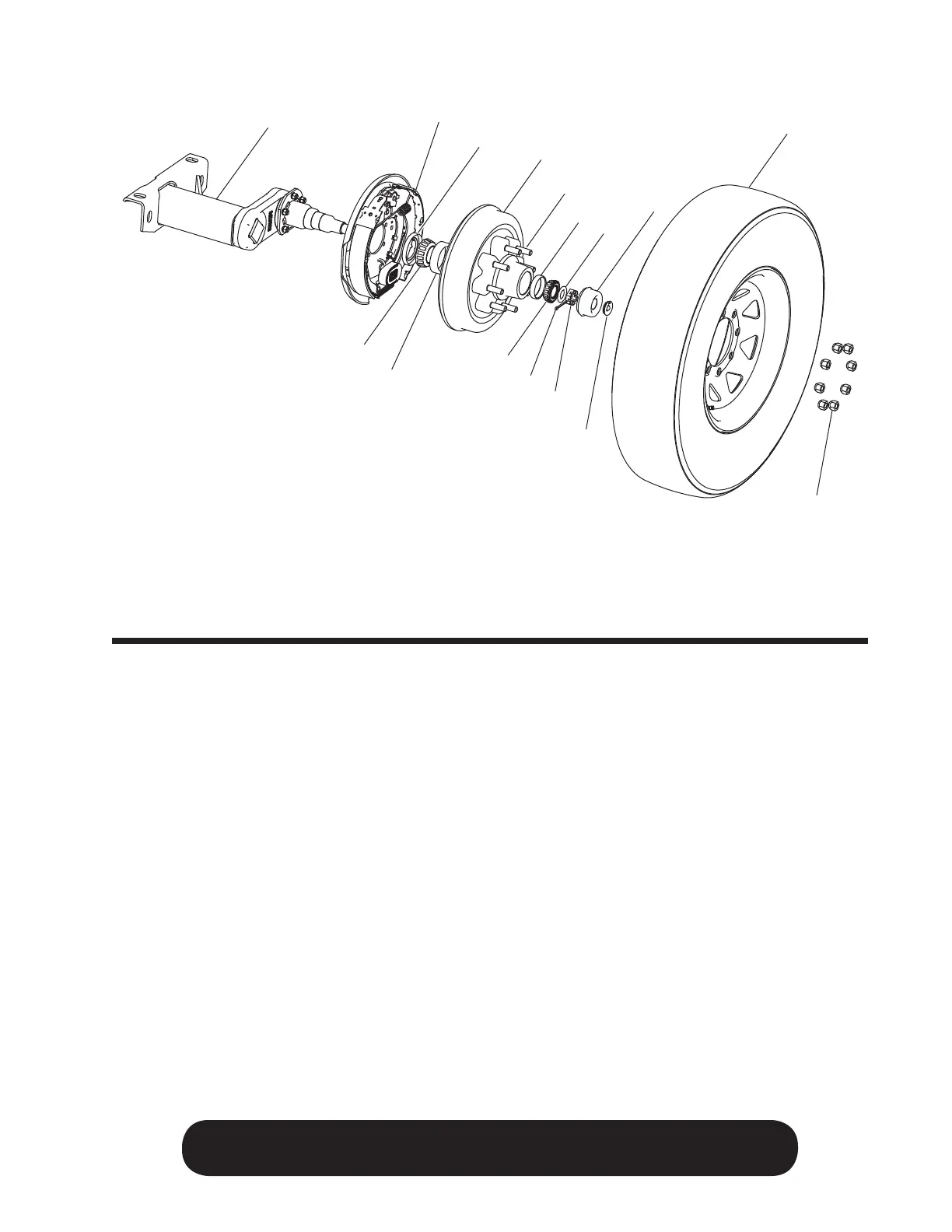

AXLE, WHEEL AND TIRE ASSEMBLY
Ref. No. Part Number Description No. Req’d
1 005808 Axle (7,200 lbs.) 2
2 005823-01 Brake Assembly, LH 1 per axle
005824-01 Brake Assembly, RH 1 per axle
3 005822-01 Grease Seal 1 per side
4 005821-01 Inner Bearing Cone 1 per side
5 005820-01 Inner Bearing Race 1 per side
6 005819-01 Hub / Brake Drum Assembly 1 per side
7 005818-01 Wheel Stud 8 per hub
8 005817-01 Outer Bearing Race 1 per side
9 005816-01 Outer Bearing Cone 1 per side
10 005815-01 Spindle Washer 1 per side
11 005814-01 Cotter Pin 1 per side
12 005813-01 Spindle Nut 1 per side
13 005812-01 Grease Cap 1 per side
14 005811-01 Rubber Plug Insert 1 per side
15 005827 Tire ST235/85R16 on 16 x 6 Steel Wheel 4
16 005825-01 Wheel Lug Nut 8 per side
1
2
3
4
5
6
7
8
10
13
15
16
14
12
11
9
