ADJUSTING THE FEED CHAIN:
1. About halfway between the Idler Sprocket Assembly and the Drive Shaft Idler Assembly, pull the
Feed Chain taut away from the bottom of the Feed Chute Weldment. At the point where you have
pulled the Feed Chain away measure the distance between the top of the Feed Chain and the bottom
of the Feed Chute Weldment. This dimension should be 4-1/2". See Figure 9.
2. If the Feed Chain requires adjustment, loosen the four bolts securing the Idler Sprocket Assembly to
the Feed Chute Weldment.
3. Adjust by moving the Idler Sprocket Assembly towards the end of the Feed Chute until you obtain
the measurement provided in Step 2. If the 4-1/2" measurement cannot be obtained by shifting the
Idler Sprocket Assembly, remove links from the Feed Chain as necessary.
4. Tighten the four bolts securing the Idler Sprocket Assembly to the Feed Chute Weldment.
DIESEL FUEL ONLY
B260
Straw Blower
SEE VIEW A
VIEW A
IDLER
SPROCKET
ASSEMBLY
BOLTS
IDLER
SPROCKET
ASSEMBLY
FEED CHAIN
IDLER
SPROCKET
ASSEMBLY
FEED CHAIN
4-1/2”
BOTTOM OF
FEED CHUTE
WELDMENT
DRIVE SHAFT
IDLER SPROCKET
ASSEMBLY
PULL
FEED CHAIN
TAUT
FEED
CHAIN
GUARD

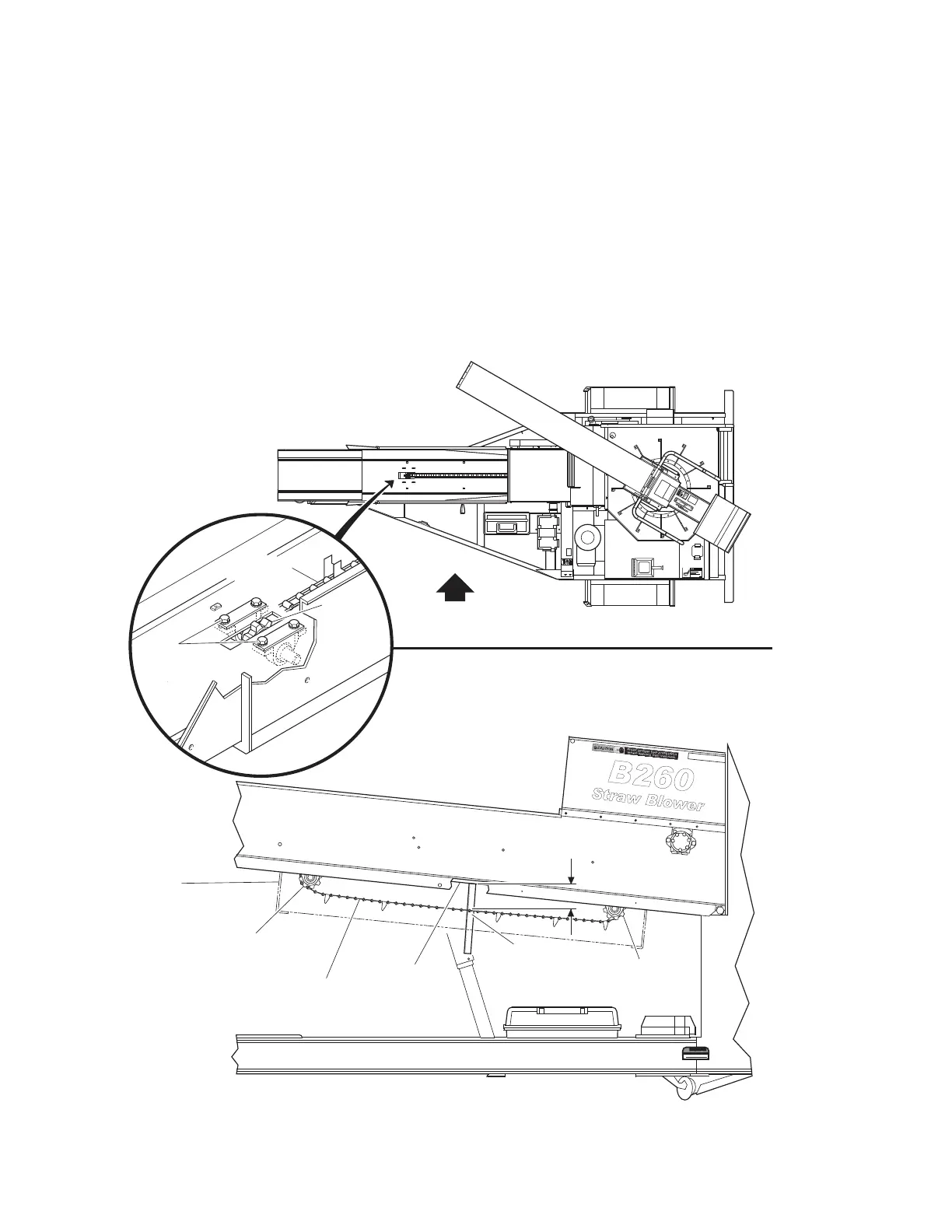

FIGURE 9 - ADJUSTING THE FEED CHAIN
