Finn B260 SEB - Trailer Wiring

29
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE
TRAILER WIRING
Part Number Description No. Req’d
023635 Trailer Wiring Harness 1
075592 7-Blade Trailer Plug 1
023424 Breakaway Switch 1
FW71090 Marker Light 2
005138 Right Taillight Assembly 1
005137 Left Taillight Assembly 1
005236 License Light 1
060316 3-Bar Light 1
NOTE: See Pages 26-27 for Locations of the above components.

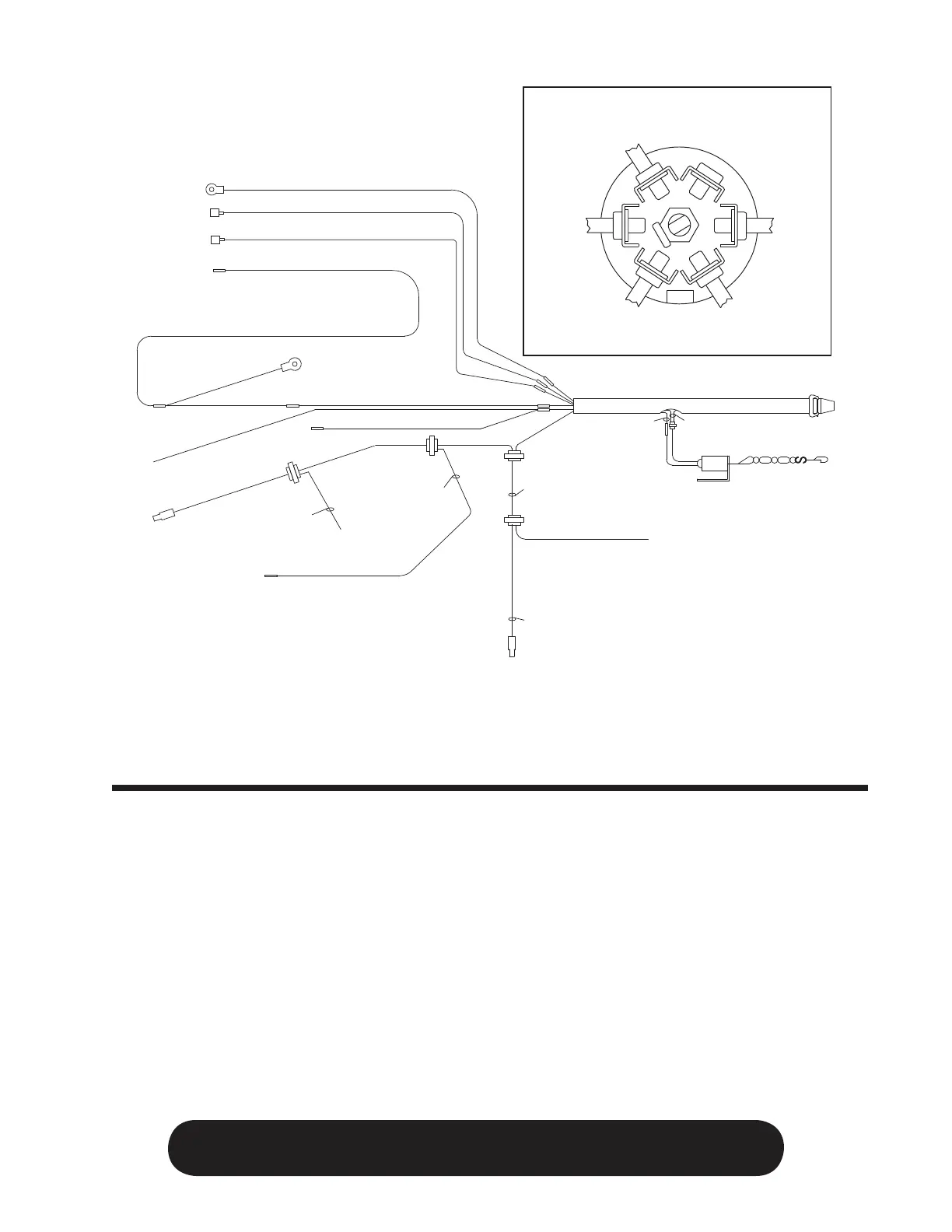

16 GA. (RED) TO STARTER
16 GA. (YELLOW) TO LEFT TAILLIGHT
16 GA. (GREEN) TO RIGHT TAILLIGHT
16 GA. (WHITE) TO BRAKE
16 GA. (WHITE) TO RIGHT BRAKE
16 GA. (BLACK) TO BRAKE
16 GA. (WHITE)
TO BRAKE
16 GA. (BLACK)
TO BRAKE
TO LEFT TAILLIGHT
16 GA. (BROWN)
TO MARKER LIGHT
16 GA. (BROWN)
TO 3-BAR LIGHT
16 GA. (BROWN)
FROM 3-BAR LIGHT
TO LICENSE LIGHT
16 GA. (BROWN)
TO MARKER LIGHT
16 GA. (BROWN)
TO RIGHT TAILLIGHT
(RED)
(BLACK)
NOT USED
RIGHT
TURN
(GREEN)
ELECTRIC BRAKES
(BLACK)
GROUND
(WHITE)
LEFT
TURN
(YELLOW)
TAIL LIGHTS
(BROWN)
TRAILER PLUG
