Finn B260 SEB - Discharge Head

55
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE
DISCHARGE HEAD
Ref. No. Part Number Description No. Req’d
1 023629 Discharge Tube 1
2 023726-01 Top Seal 1
3 023726-04 Top Seal Retainer 1
4 023588-01 Handle Weldment - Left Hand Side 1
5 004996 Plastic Pipe Plug 1
6 023588-02 Handle Weldment - Right Hand Side 1
7 023586-05 Hinge Pin 2
8 023720 Horn Button 1
9 023721 Horn Button Cover 1
10 023726-07 Elbow Side Seal 2
11 023583-04 Elbow Seal 4
12 023560-05 "Z" Piece Seal Bracket 1
13 023726-03 Hinge Seal 1
14 023729 Flapper Door Seal Assembly (See Detail above) 1
15 023560-03 Seal Plate 1
16 023726-02 Flap Side Seal 2
17 023583-03 Hinge Seal 1
18 023726-08 Flap End Seal 1
19 023726-06 Flap End Seal Retainer 1
20 023726-05 Flap Side Seal Retainer 2
15
16
17
16
19
18
20

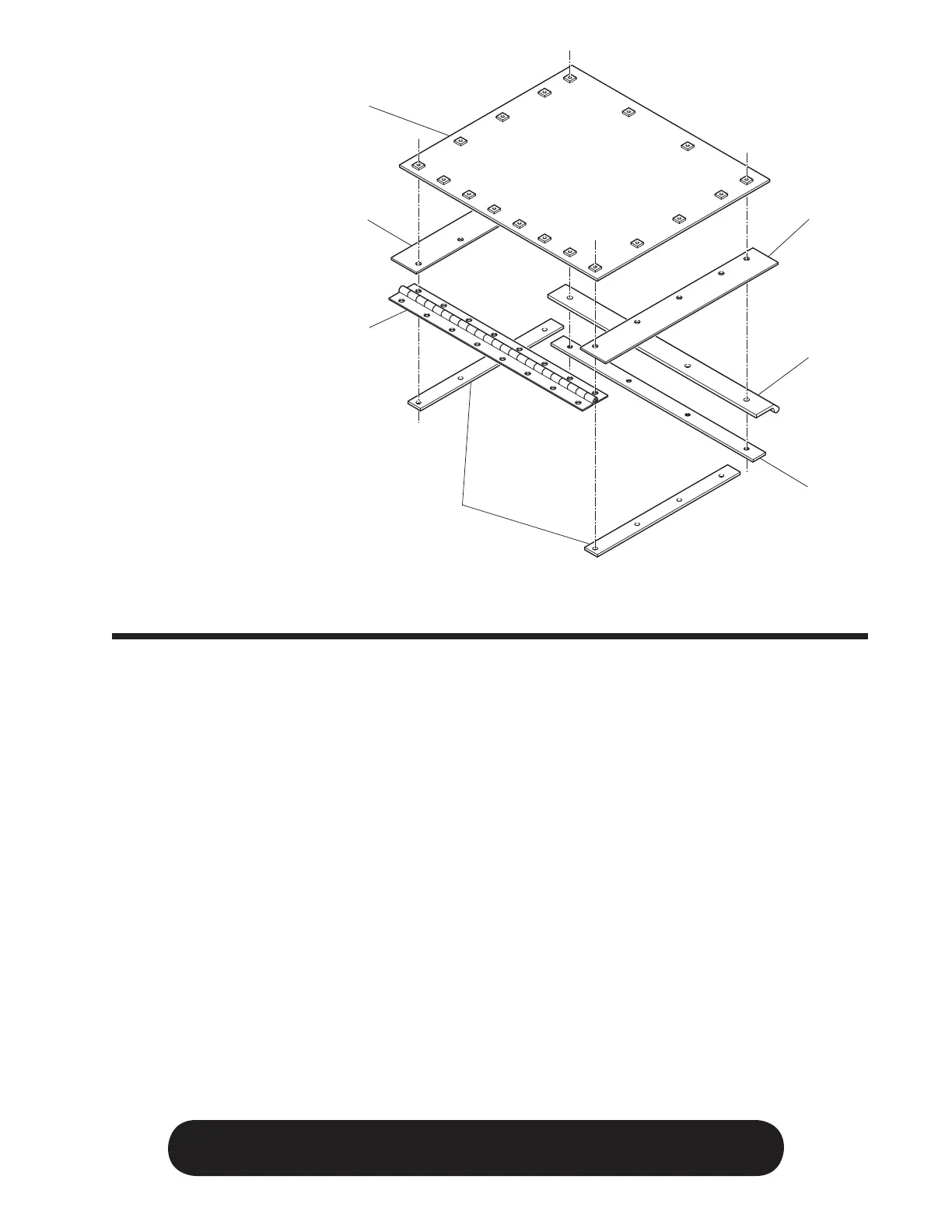

FLAPPER SEAL DOOR DETAIL
ITEM #14
(FLAPPER DOOR
SEAL ASSEMBLY)
INCLUDES ITEMS #15 - 20.
