Finn B260 SEB - Axle Assembly

28
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE

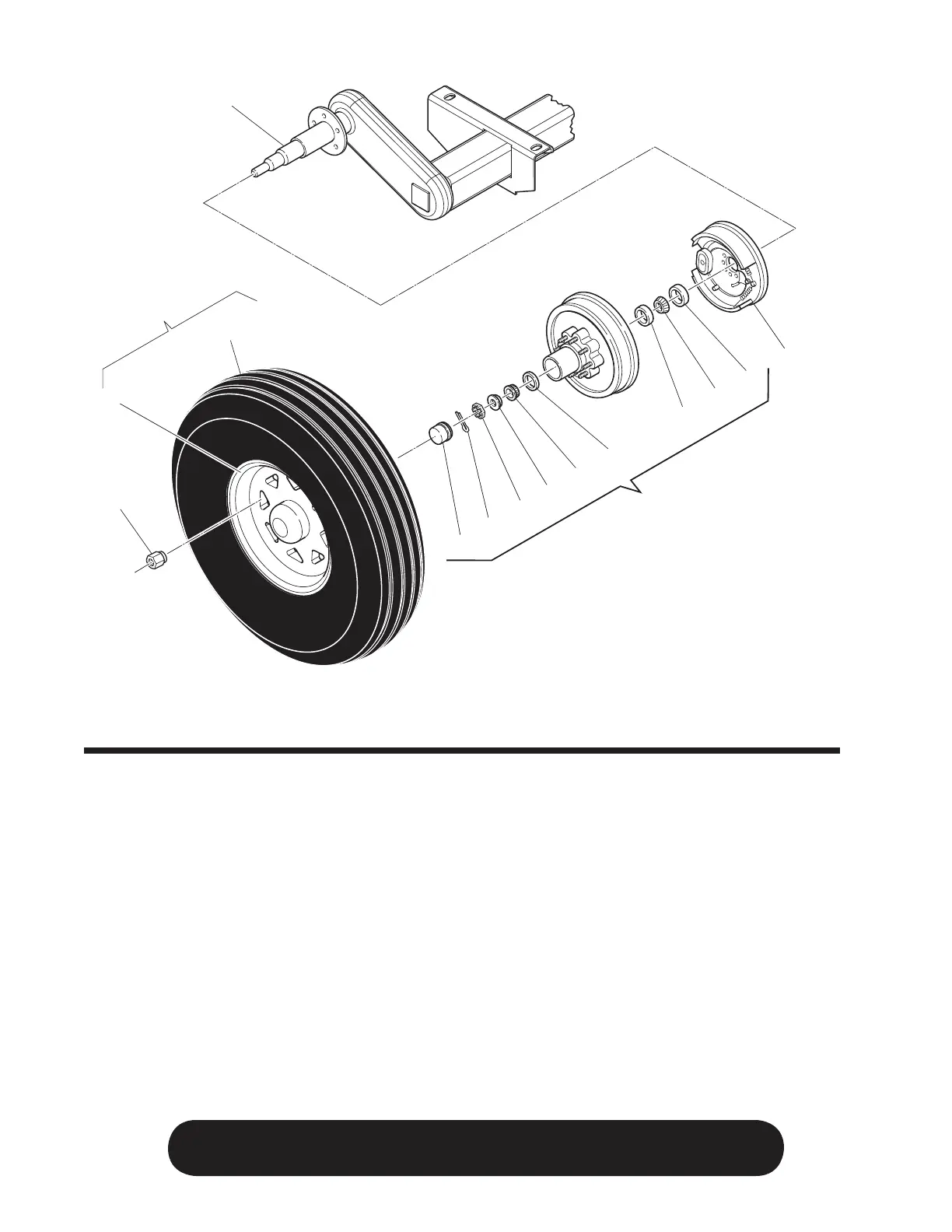

AXLE ASSEMBLY
Ref. No. Part Number Description No. Req’d
1 023741 Axle with Spindles, Hubs and Drums 1
2 080669 Wheel and Tire Assembly 2
3 080668 Tire 1 per
4 023780 Tire Valve 1 per
5 080663 Wheel 2
6 WL8-219-4 Hub and Drum Assembly 2
7 WL6-80 Wheel Nut 8 per
8 WL21-1 Grease Cap 1 per
9 WL19-2 Cotter Pin 1 per
10 WL6-1 Spindle Nut 1 per
11 WL5-23 Spindle Washer 1 per
12 WL5-123 Outer Bearing Cone 1 per
13 WL15245 Outer Bearing Cup 1 per
14 WL25520 Inner Bearing Cup 1 per
15 WL25580 Inner Bearing Cone 1 per
16 WL25580 Grease Seal 1 per
17 022441 Brake Assembly 2
1
4
3
5
7*
8
13
9
10
11
12
14
15
16
17
6*
*NOTE:
ITEM #6 ALSO INCLUDES ITEM #7.
2
