62 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015
Installation Optional Modules and Devices

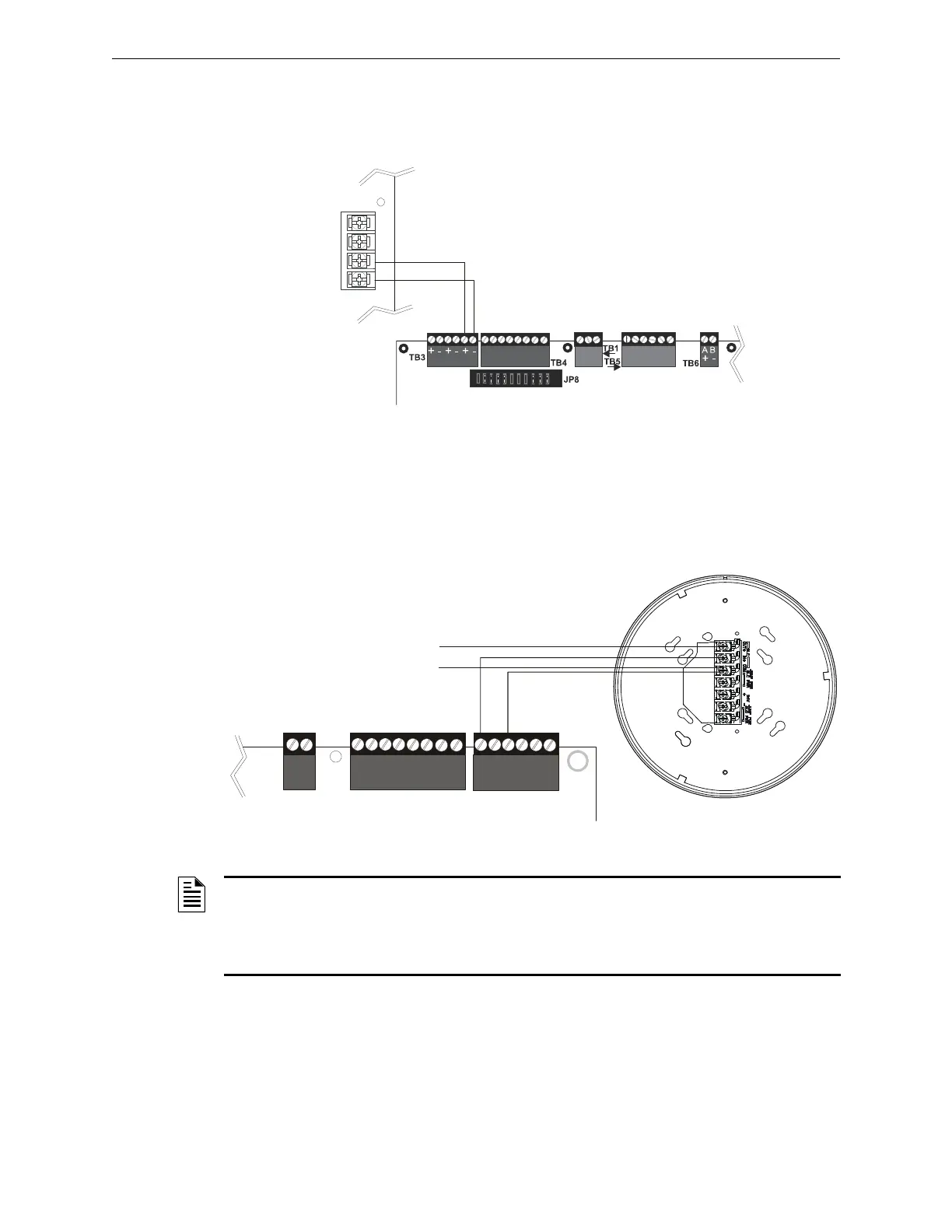

2.6.9 ECC-FFT Firefighter Telephone
The ECC-FFT connects from TB3 (non-resettable aux power) on the FACP to the DC Power input
on the ECC-FFT board.
2.6.10 W-GATE Wireless Gateway
The W-GATE connects to the FACP’s SLC connection at TB8. The W-GATE can be powered by
either the SLC or an external 24 VDC power source. Refer to the SWIFT™ Smart Wireless
Integrated Fire Technology Manual for more information.
FACP
ECC-FFT
Figure 2.34 ECC-FFT Connections
96tofft.wmf
XmtRcvDtrGndIn+In-Out+Out-
+ -
B+ A+ B- A- A B
Slc Slc Slc Slc Shield
TB7
TB8
TB6
W-GATE
mounting plate
out to next
SLC device
MS-9600LS
Figure 2.35 W-GATE SLC Connection
96towg.wmf
NOTE: The W-GATE, as part of the wireless network, has been tested for compliance with the
Federal Communications Commission (FCC) requirements of the United States Government. It
has not been evaluated for use outside the USA. Use of this system outside the USA is subject to
local laws and rules to which this product may not conform. It is the sole responsibility of the user
to determine if this product may be legally used outside the USA.
