Fire-Lite MS-9600LS User Manual

MS-9600LS Series Manual — P/N 52646:B8 11/20/2015 61
Optional Modules and Devices Installation

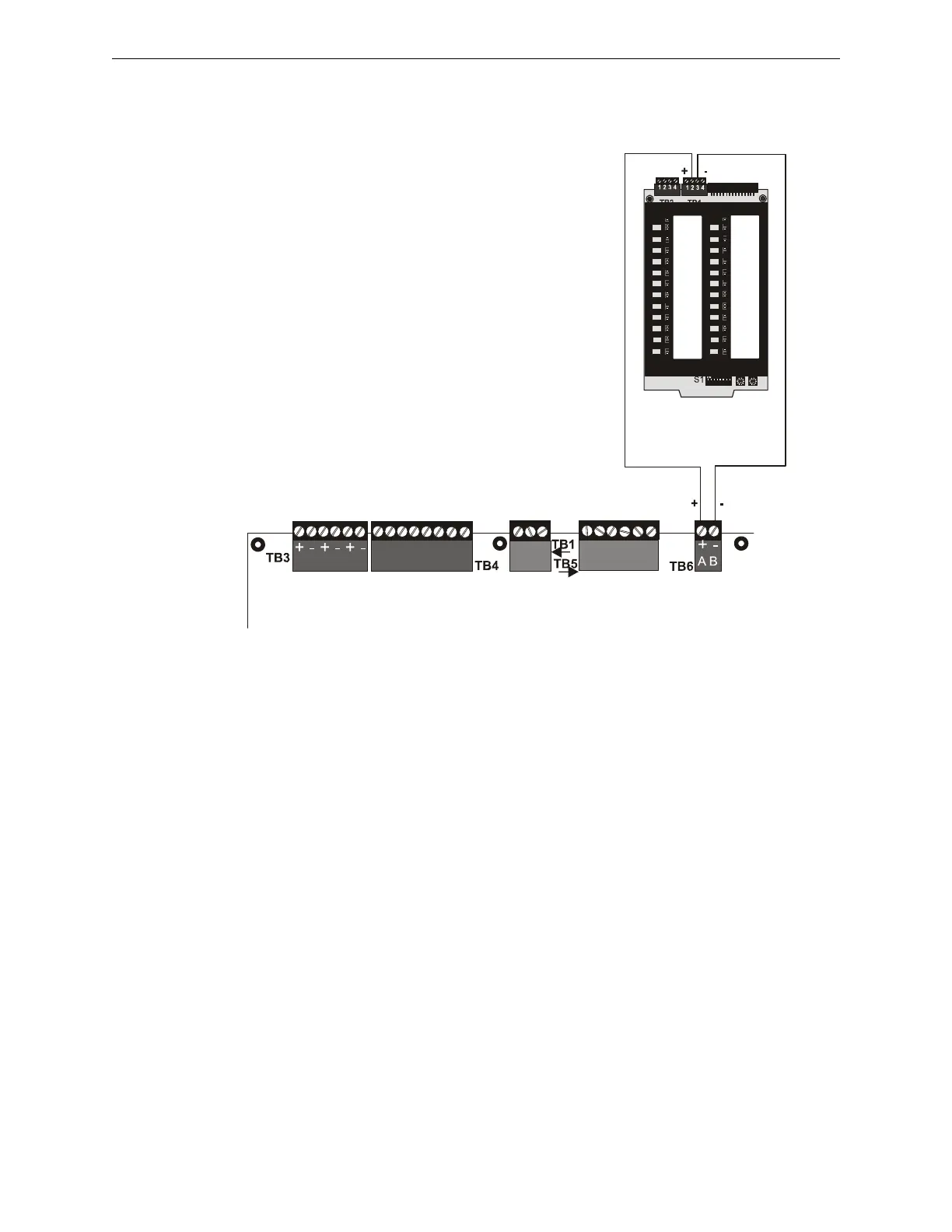

The only connection between the FACP and ACC-25/50ZS Series audio panel is a pair of commu-
nication wires connected between the A(+)/B(-) terminals on TB9 of the FACP and TB1 terminals
2 & 3 of the ACC-ZPMK module on the audio panel.
2.6.8 ACS Annunciators
Legacy ACM-8RF Relay Control Module
The ACM-8RF module provides eight Form-C relays with contacts rated for 5 amps.
Legacy ACM Series Annunciators
ACM and AFM Series Annunciators provide visual indications of FACP status in remote locations.
Refer to the appropriate annunciator manual for information on installation, wiring and operation.
A (+) B (-)
FACP
ACC-ZPMK
on ACC-25/50ZS Series
Figure 2.33 FACP Connection to ACC-25/50ZS Series Audio Panel
ANN-BUS
acczpmtoms9600udls.wmf
