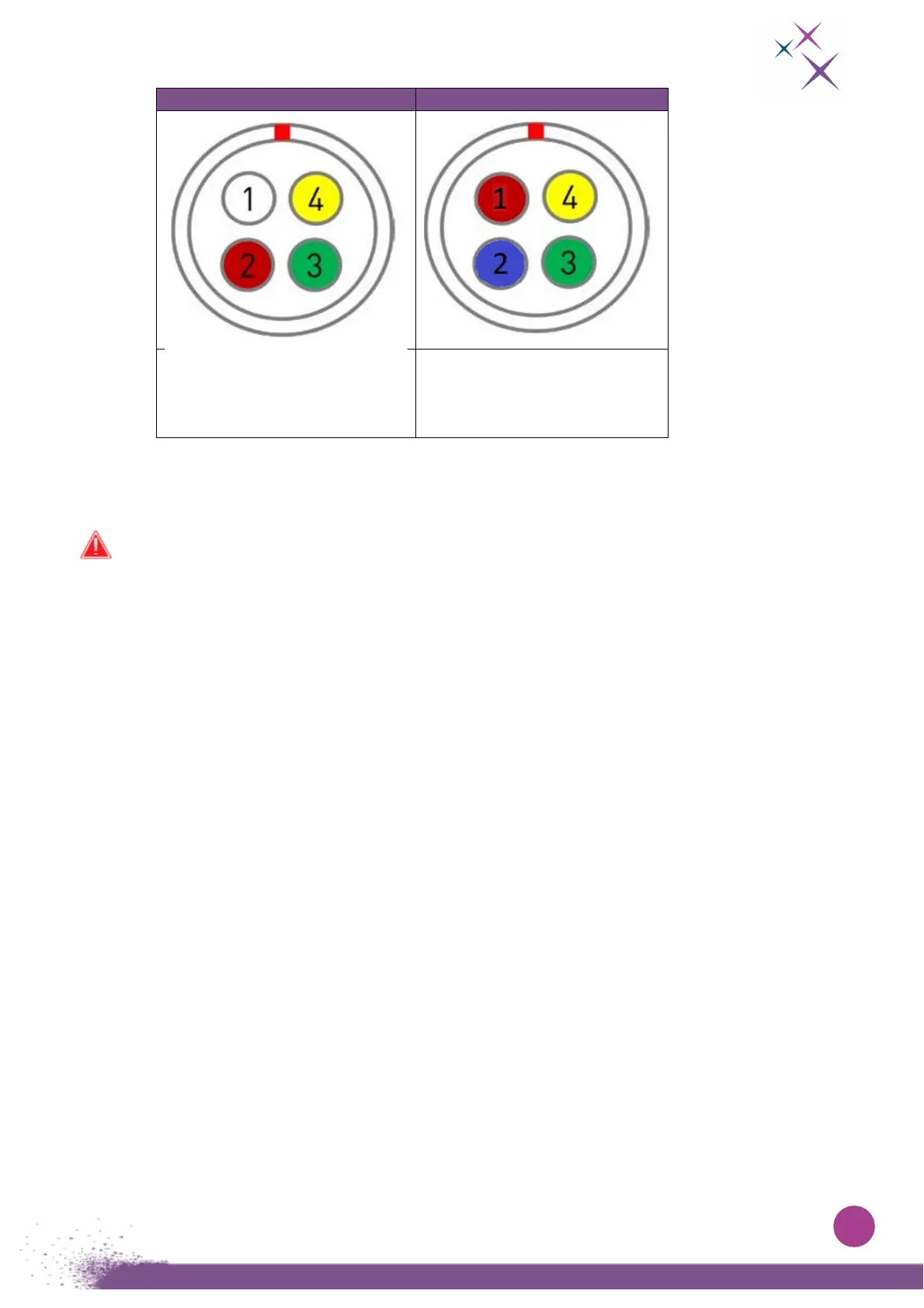

Cable version A
Cable version B
1 White
2 Red
3 Green
4 Yellow
1 Red
2 Blue
3 Green
4 Yellow
Input signals (Trigger_in and FPS_Tint_in) are 5V compatible.
The maximum voltage value is 5.5V. Applying higher voltage will result in a permanent
damage of the camera.
Output signals (LVAL_out and FSYNC_out) are in LVCMOS 3.3V.
