Standard polarity / internally controlled integration time
When external polarity is set to standard and integration time is controlled by software, the falling
edge triggers the start of the integration time. The readout starts automatically once the configured
integration time has been elapsed. The rising edge of the signal is ignored.

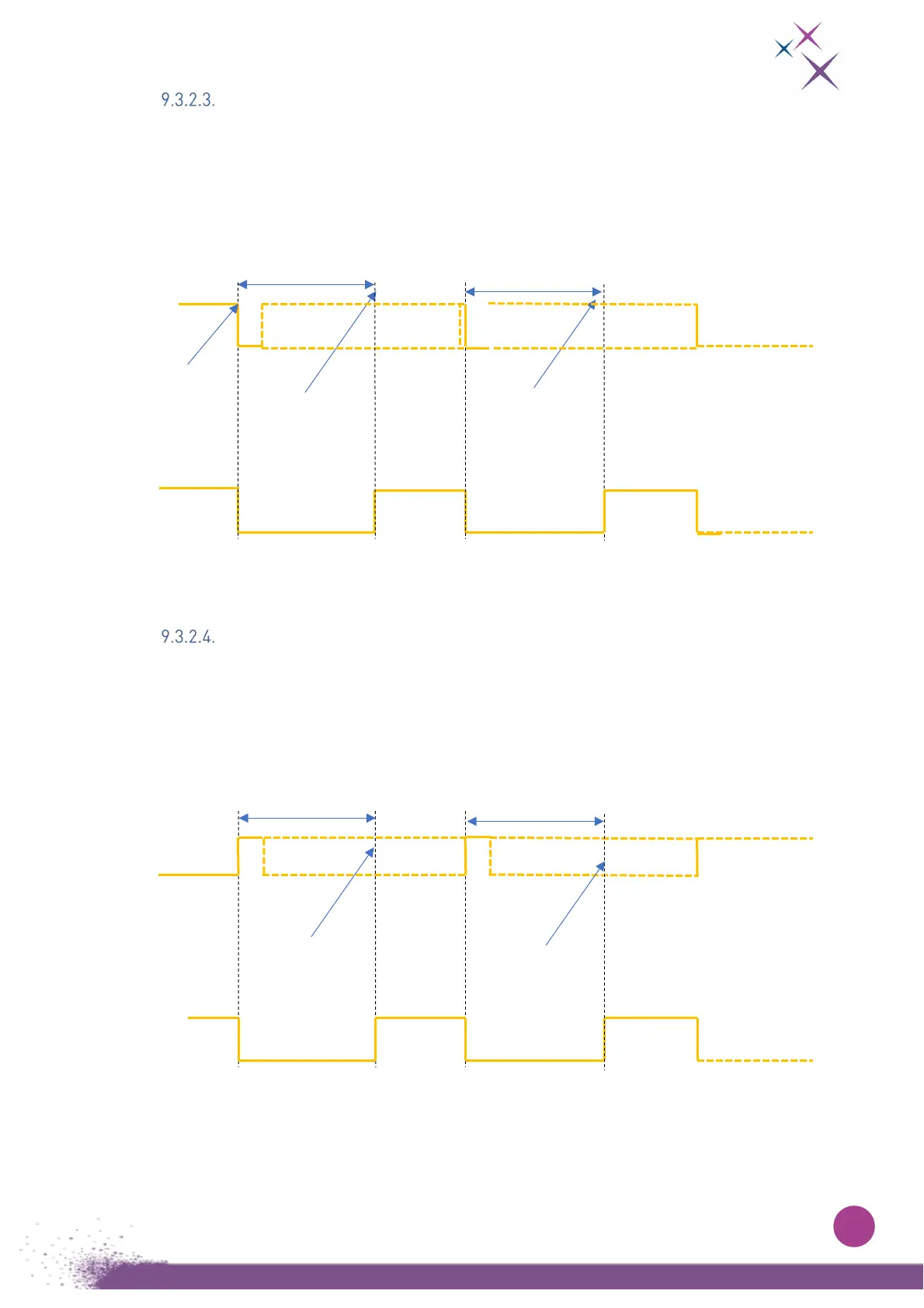

Figure 25: Standard polarity / internally controlled integration time
Inverted polarity / externally controlled integration time
When external polarity is set to inverted and integration time is controlled by software, the rising edge
triggers the start of the integration time. The readout starts automatically once the configured
integration time has been elapsed. The falling edge of the signal is ignored.
Figure 26: Inverted polarity / externally controlled integration time
