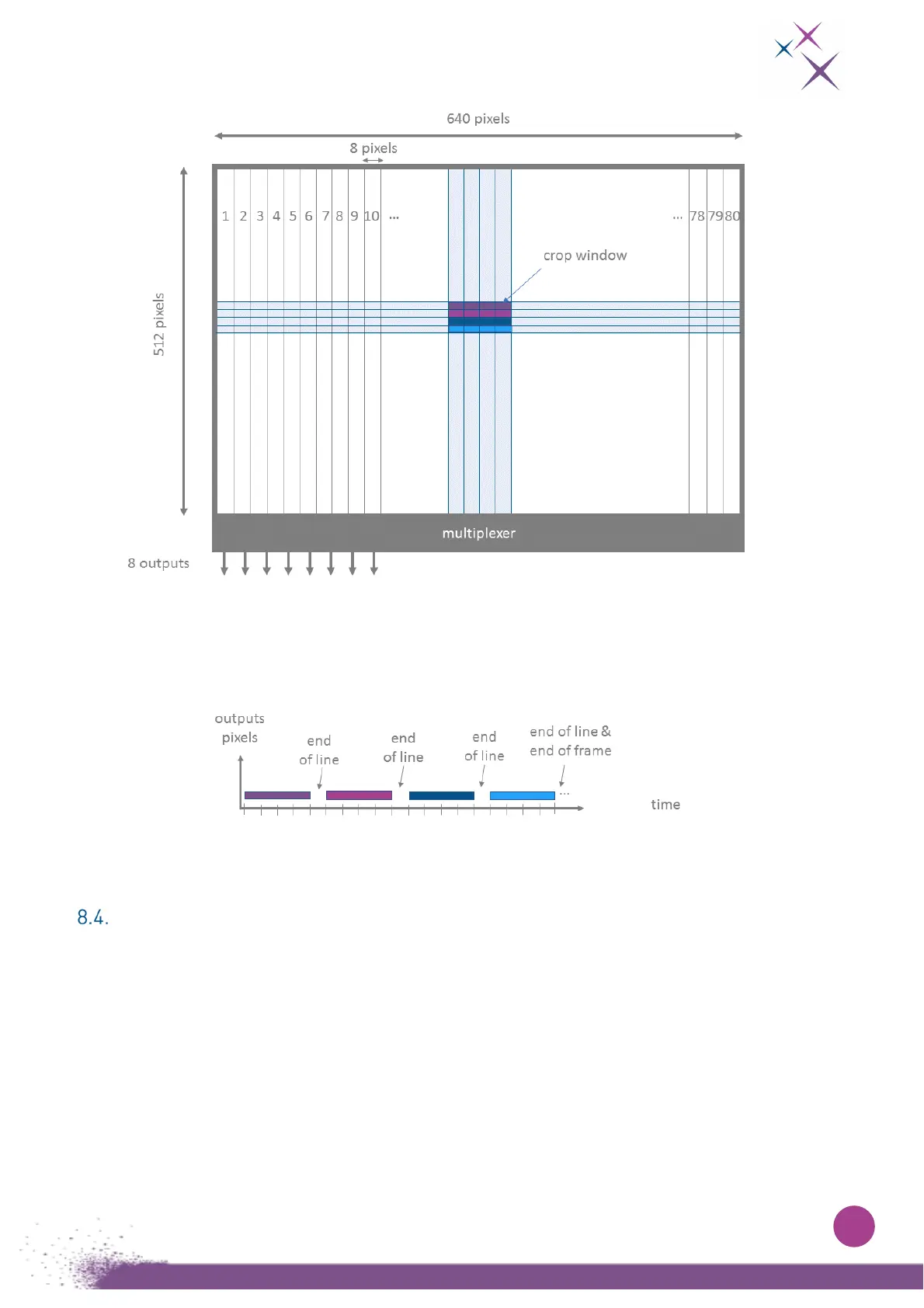

F
igure 17:
Cropping example on geometry detector.
Figure 18:
Sensor Output in cropping mode. Pixels are read from left to right and up to down.
Conversion gain
S
ignal can be integrated in low, medium or high gain corresponding to high, medium and small
integration capacity, respectively. The modification of the integration capacity impacts the dynamic of
the signal and thus implies a change of the noise level.
It is possible to modify the integration capacity using “set sensitivity low”, “set sensitivity
medium” or “set sensitivity high” commands in the command line interpreter.
