Step 3: Screw the Staubli male connector on one of the cooling plate side with
an
adjustable wrench N°13 until there is contact between the two metals.

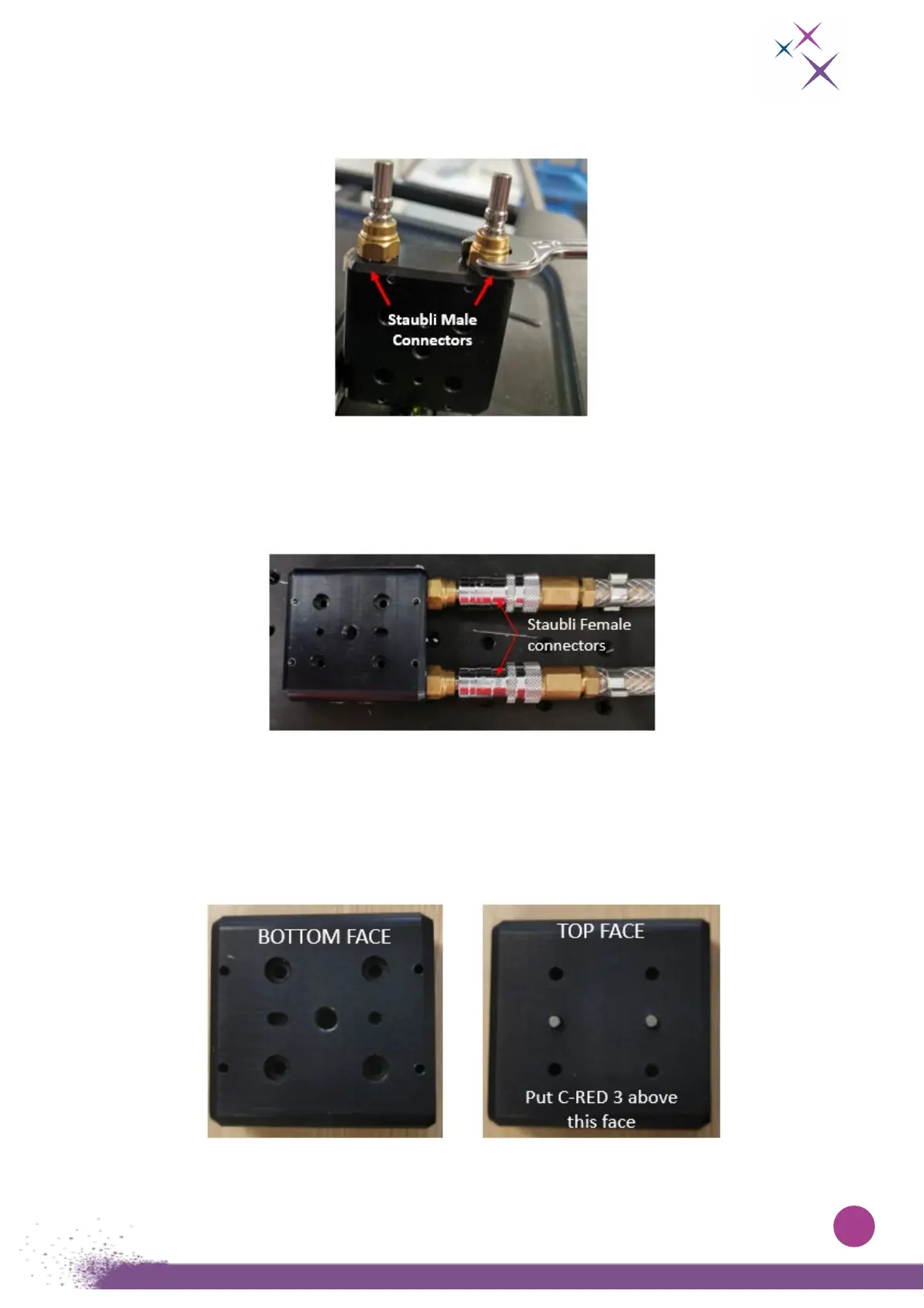

Figure 35:
Staubli Screwed Connectors
Step 4: Once the Staubli are connected, plug the cooling plate to the cooling system by the mean of
female connectors.
Figure 36:
Cooling System without C-RED 3
Step 5: Turn the cooling system on and check that no leakage is present. Then, disconnect the cooling
plate from the female connectors.
Step 6: Put your C-RED 3 on the cooling plate top face.
Figure 37:
Cooling plate Top and Bottom face
