Fisher 1098-EGR - Mounting Parts; 6350 Series Mounting Parts (Figure 25)

Types 1098-EGR and 1098H-EGR
39
BOTTOM VIEW OF PILOT
(SHOWN ROTATED 90°
FROM NORMAL)
CONTROL LINE
CONNECTION
14A5706-A

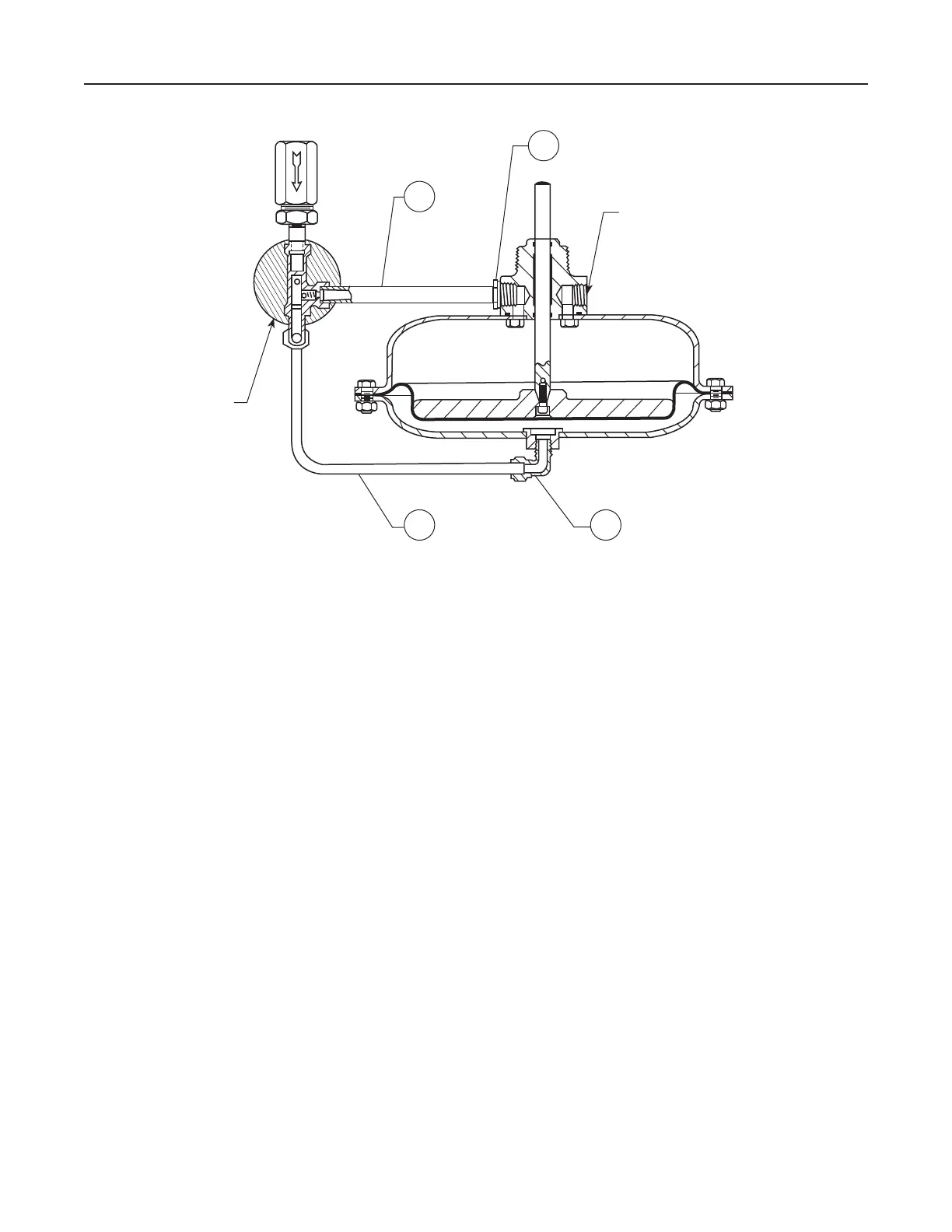

Figure 25. Single-Pilot Mounting Assembly
Mounting Parts
6350 Series Mounting Parts (Figure 25)
Key Description Part Number
16 Pipe Tee for use with 50 psig (3,4 bar) relief 1C597547362
21 Tube Fitting Connector for use with
50 psig (3,4 bar) relief, steel 15A6002XW22
23 Pipe Nipple
Type 1098
Actuator Sizes 30 and 40
Plated steel 1C210026232
Stainless steel (NACE) 1C2100X0012
For use with 50 psig (3,5 bar) relief 1C782526012
Actuator Size 70
Plated steel 19A7858X012
Stainless steel (NACE) 19A7858X032
Type 1098H
Steel 1C488226232
Stainless steel 1C488238982
24 Tubing
Actuator Sizes 30 and 40
Copper 14A9458X012
Stainless steel (NACE) 14A9458X052
Actuator Size 70
Copper 0500211701W
Stainless steel (NACE) 0500213809W
Key Description Part Number
25 Tube Fitting Elbow (2 required for standard
and 3 required for use with 50 psig (3,4 bar)
relief mounting)
Actuator Sizes 30 and 40
Brass 15A6002X162
Aluminum (NACE) 15A6002X402
Steel 15A6002XW32
Stainless steel (NACE) 15A6002X612
Actuator Size 70
Brass 15A6002X162
Steel 15A6002XW32
Stainless steel (NACE) 15A6002X612
26 Pipe Bushing
Steel (NACE) 1C379026232
Stainless steel (NACE) 1C3790X0012
51 Pipe Nipple, for use with 50 psig (3,5 bar)
relief (2 required) (not shown) 1C488226232
52 Pipe Tee, for use with
50 psig (3,5 bar) relief (not shown) 1A473621992
23
26
2524
