Fisherbrand 50152755 | 19
Product Description |
Chapter 4
Shelf System
The incubator is supplied with two perforated shelves. The shelf support rails [1] have an
alternating pattern of oblong and round perforations spaced evenly at 30 mm, allowing the shelf
support brackets [8] to be inserted without any room for error, yet in a very flexible way to
accommodate any required height of sample container. The shelves [2] have an integrated tilt
protection and pull-out stop. For details on using the shelf system, see “Installing the Shelf
System” on page 21.

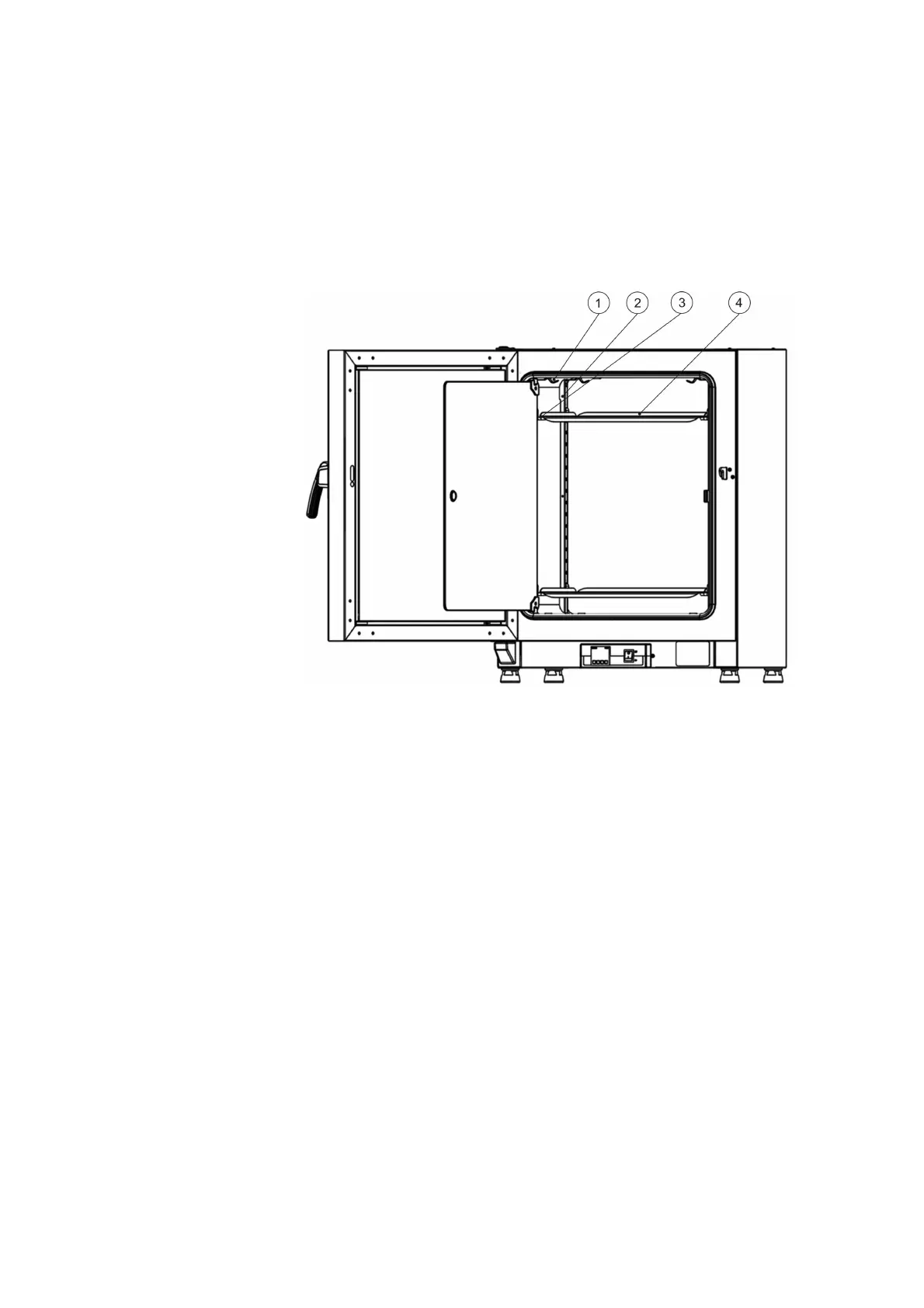

[1] Retaining Springs
[2] Support Rails
[3] Shelf Support
[4] Shelves
Figure 4-4. Basic Gravity Incubator Shelf System
