Installation |
Chapter 3
Installing the Anti-tilt Anchor
Table-top incubators
The anti-tilt anchor secures the device to a solid part of a building. The anti-tilt anchor is to be
mounted on the side opposite of the door hinges.
Bend the fixing tabs of the anti-tilt anchor up on one side and down on the other by an angle of
approx. 90°.

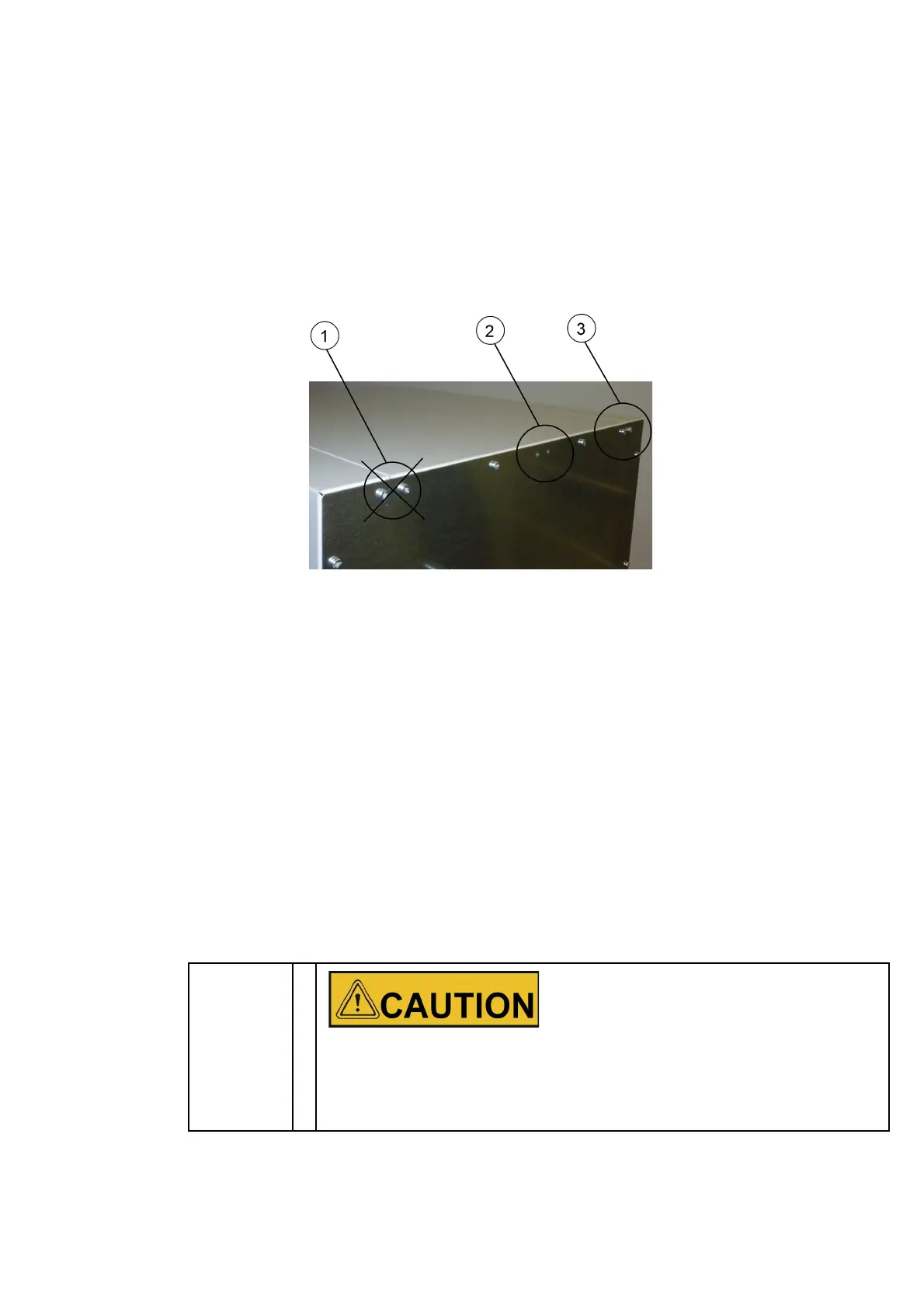

1. Do not use this position if the door is hinged on this side. Right-hand hinges represent the
standard configuration.
2. Preferred position.
3. Alternative position. Do not use if the door is hinged on this side.
4. Remove the bracket screws. Use the preferred position, if possible.
5. Fix the anti-tilt anchor with the bracket side down to the unit.
6. Position the unit with the anti-tilt anchor to in an angle of approx. 90° +/- 20%.
7. Take care that the stacking feet of the unit are still in correct place on the lower unit or on the
stacking adapter.
8. Fix the anti-tilt anchor to a solid part of the building.
Additionally, the following caution notes must be heeded at all times:
Unsafe part of the building!
Install the anti-tilt anchor to a solid part of the building, which is able for shoring loads.
The installation has to be carried out by qualified personnel only.
The connection to the building must be carried out with appropriate screws and
dowels according to the consistence of the building part.
