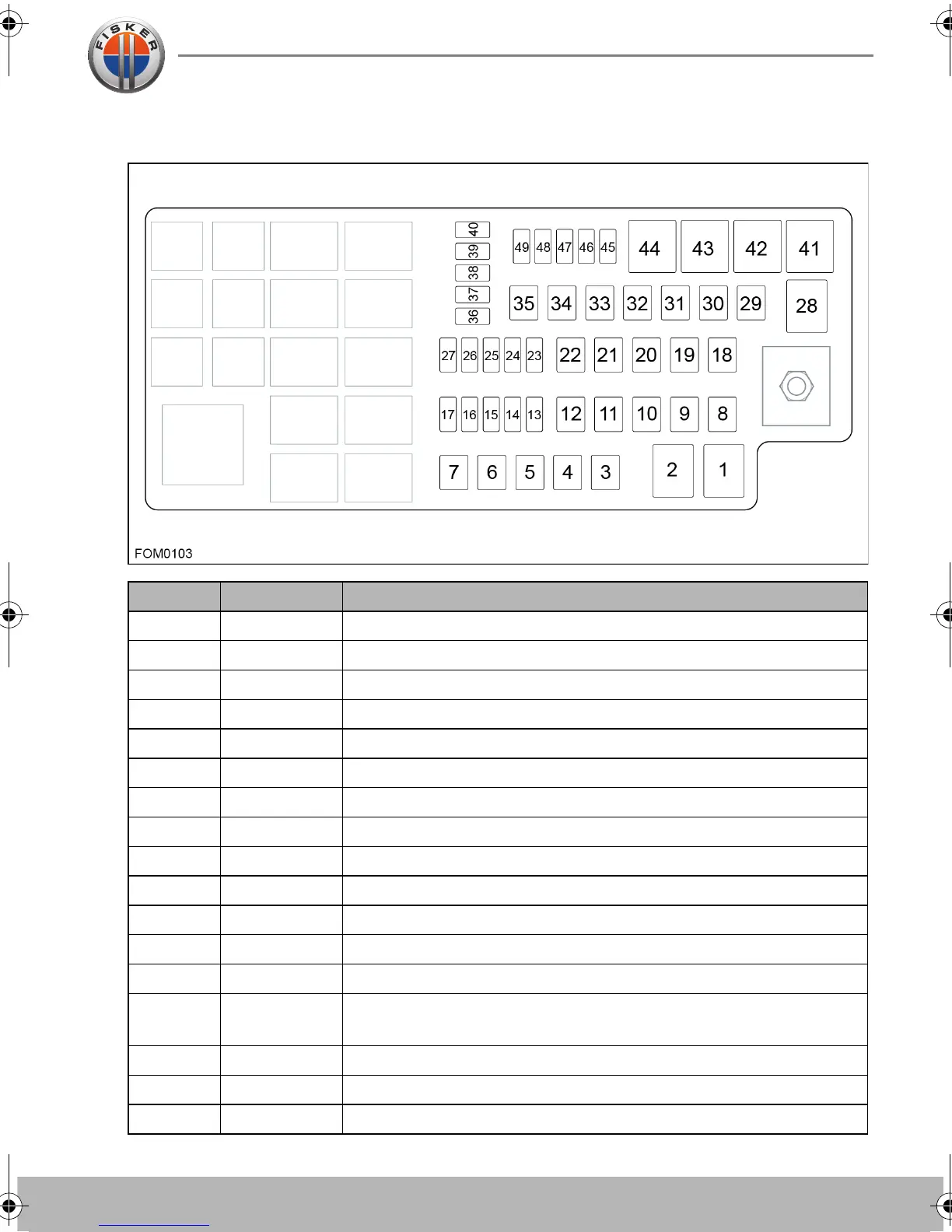

FUSE SPECIFICATIONS
Fuse Rating Circuit protected
1 50 A RH Cooling fan - Low temperature cooling system
2 50 A LH Cooling fan - Low temperature cooling system
3 30 A Windshield wipers and washers
4 25 A Rear window defrost
520 AFuel pump relay
6 30 A Subwoofer amplifier
7 25 A Infotainment
8 30 A Driver’s power seat and seat memory
9 40 A Passenger’s power seat
10 40 A Climate control
11 20 A Coolant pump - Front
12 40 A Power windows
13 15 A Powertrain
14 15 A Glove compartment, trunk and fuel filler cover switches.
Evaporative emission control system.
15 20 A Diagnostic socket
16 15 A Air bag and Supplementary Restraint Systems (SRS)
17 10 A Hybrid Control Unit
