Engine Compartment
OVERVIEW

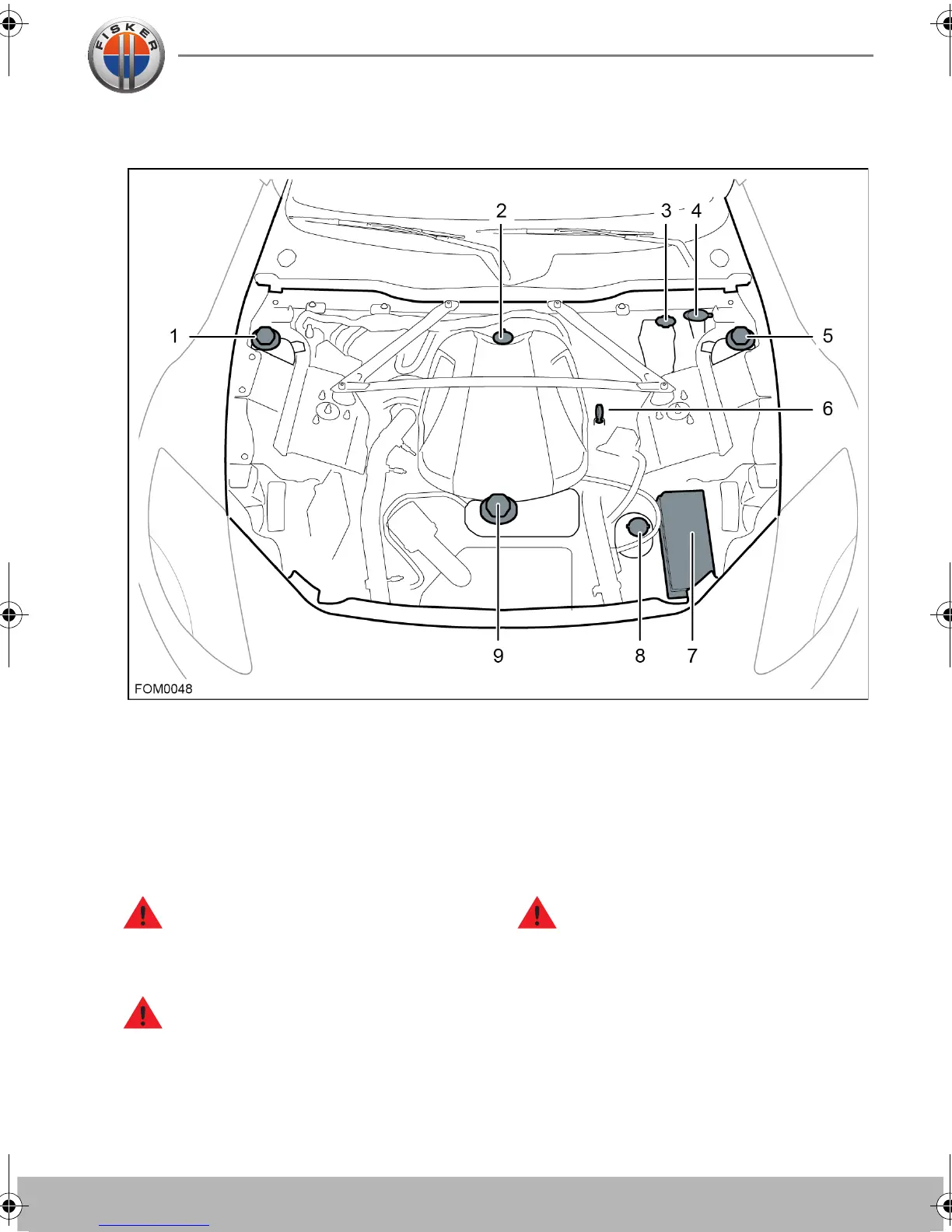

1. Coolant reservoir - Electric drive
components
2. Engine oil filler cap
3. Brake fluid reservoir
4. Windshield washer reservoir
5. Coolant reservoir - Engine
6. Engine oil level dipstick
7. Engine compartment fuse box
8. Power steering reservoir
9. Coolant reservoir - Battery
WARNING: Before working in the
engine compartment, ensure that the
vehicle is OFF and the key fob is outside the
vehicle.
WARNING: Your vehicle uses high
voltage. System components can be
hot to touch during and after starting and
when the vehicle is shut off. Be careful of
both the high voltage and the high
temperature. Obey all labels that are
attached to the vehicle.
WARNING: The vehicles high voltage
system has no user serviceable parts.
Disassembling, removing or replacing high
voltage components, cables or connectors
can cause severe burns or electric shock
that may result in serious injury or death.
High voltage cables are colored orange for
easy identification.
