FlashCut CNC Section 5 Signal Generator
23

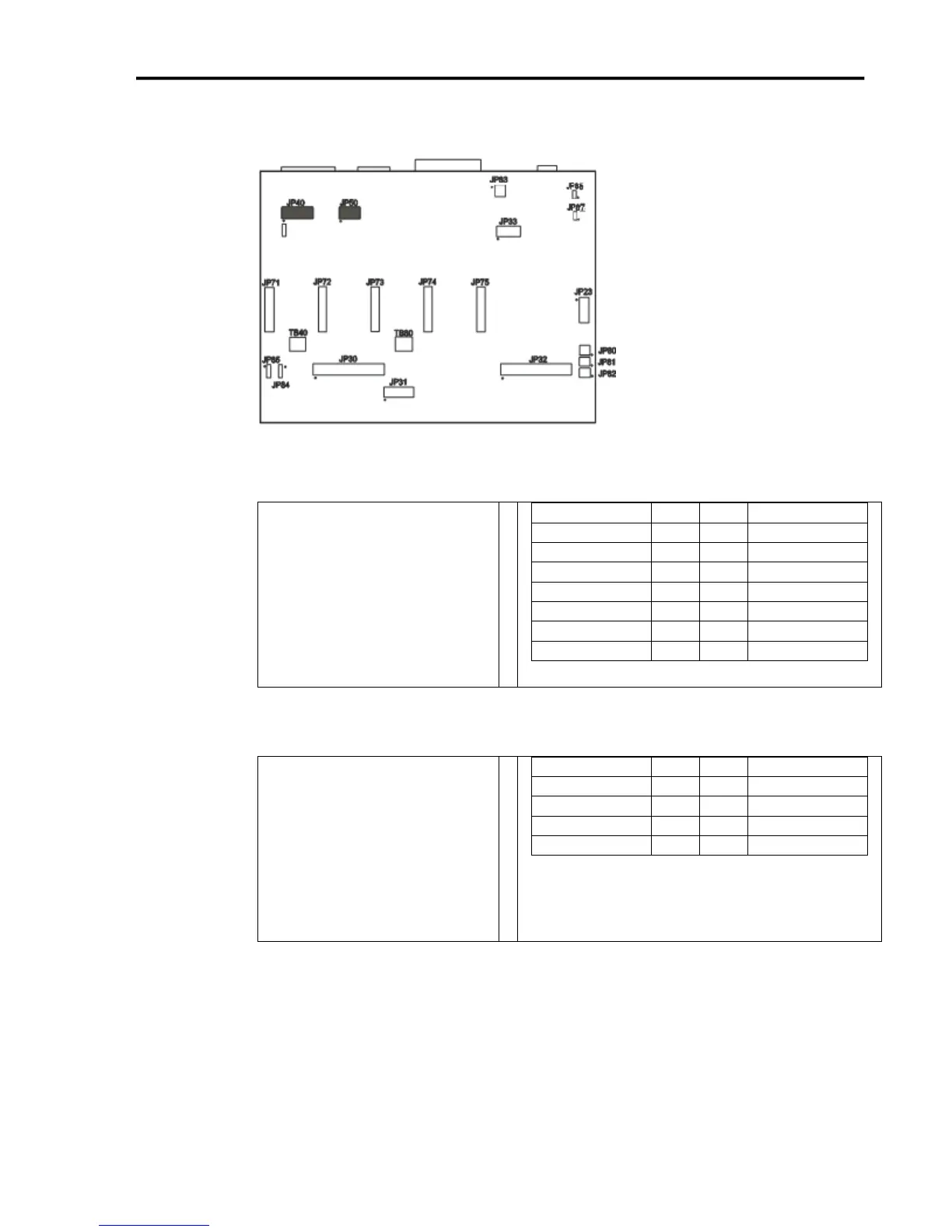

Connectors JP40, JP50
JP40 – Input Aux Header
This contains the same
signals as the Mini-Fit Jr.
Input Connector. It is
provided for the convenience
of using a different input
connector or an external input
connector on a custom
chassis.
GPI1
1
2
OPT-GND
GPI2
3
4
OPT-GND
GPI3
5
6
OPT-GND
GPI4
7
8
OPT-GND
GPI5
9
10
OPT-GND
GPI6
11
12
OPT-GND
GPI7
13
14
OPT-GND
GPI8
15
16
OPT-GND
JP50 – Output Aux Header
This contains the same
signals as the Mini-Fit Jr.
Input Connector. It is
provided for the convenience
of using a different input
connector or an external input
connector on a custom
chassis.
GPO2
1
2
GPO1
GPO4
3
4
GPO3
GPO6
5
6
GPO5
GPO8
7
8
GPO7
GND
9
10
VCC
