6. Drive Settings

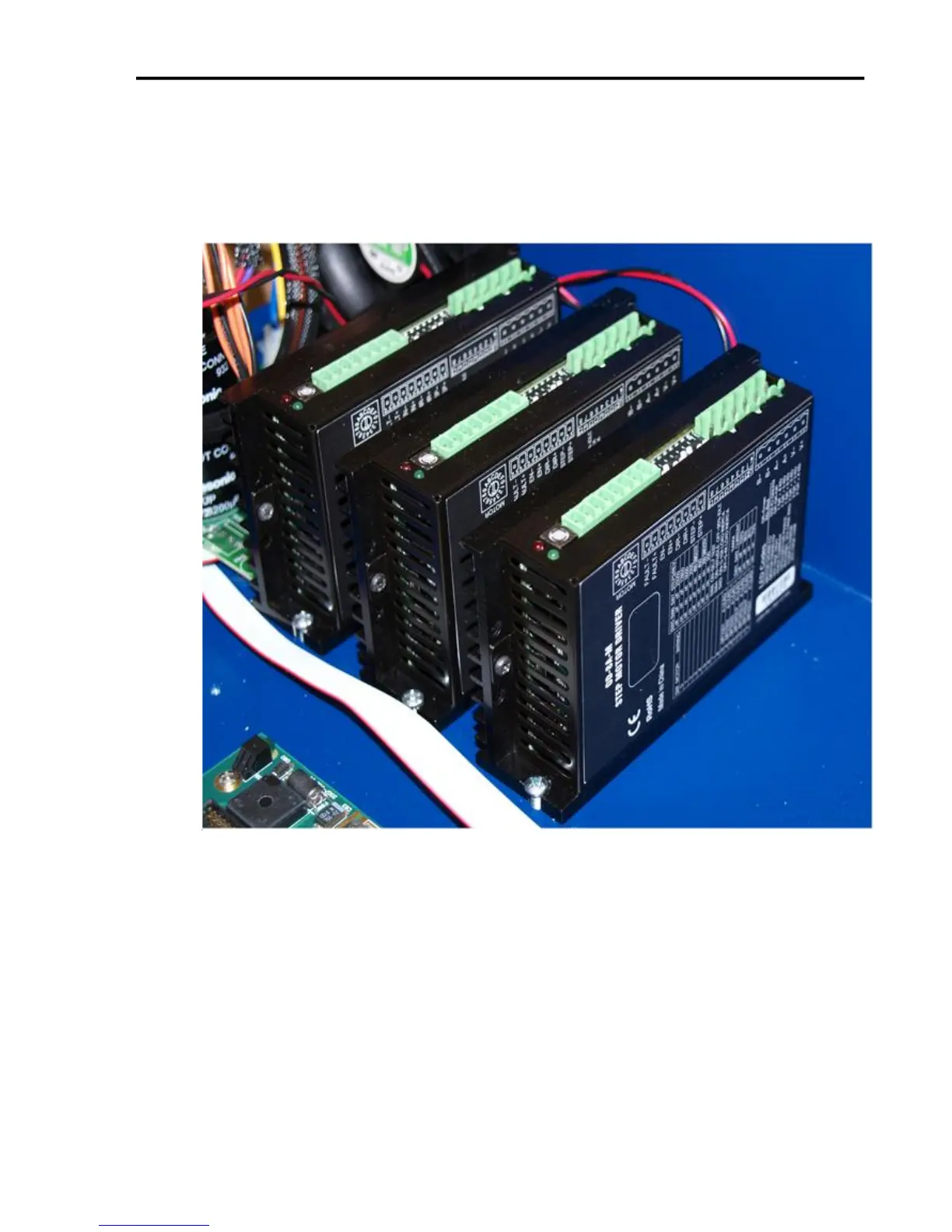

Inside of the controller box are the individual drive modules for axes 1-5.
Each drive module has Logic Connector for the Step, Direction, COM and Enable signals
coming from the Axis Plug-in connector on the Signal generator, a Motor Connector for
the A and B Coils of the motor, a Power Connector, and a group of DIP Switches for
configuring the drive for your specific requirements. The configuration of the DIP
switches vary depending on your application.
