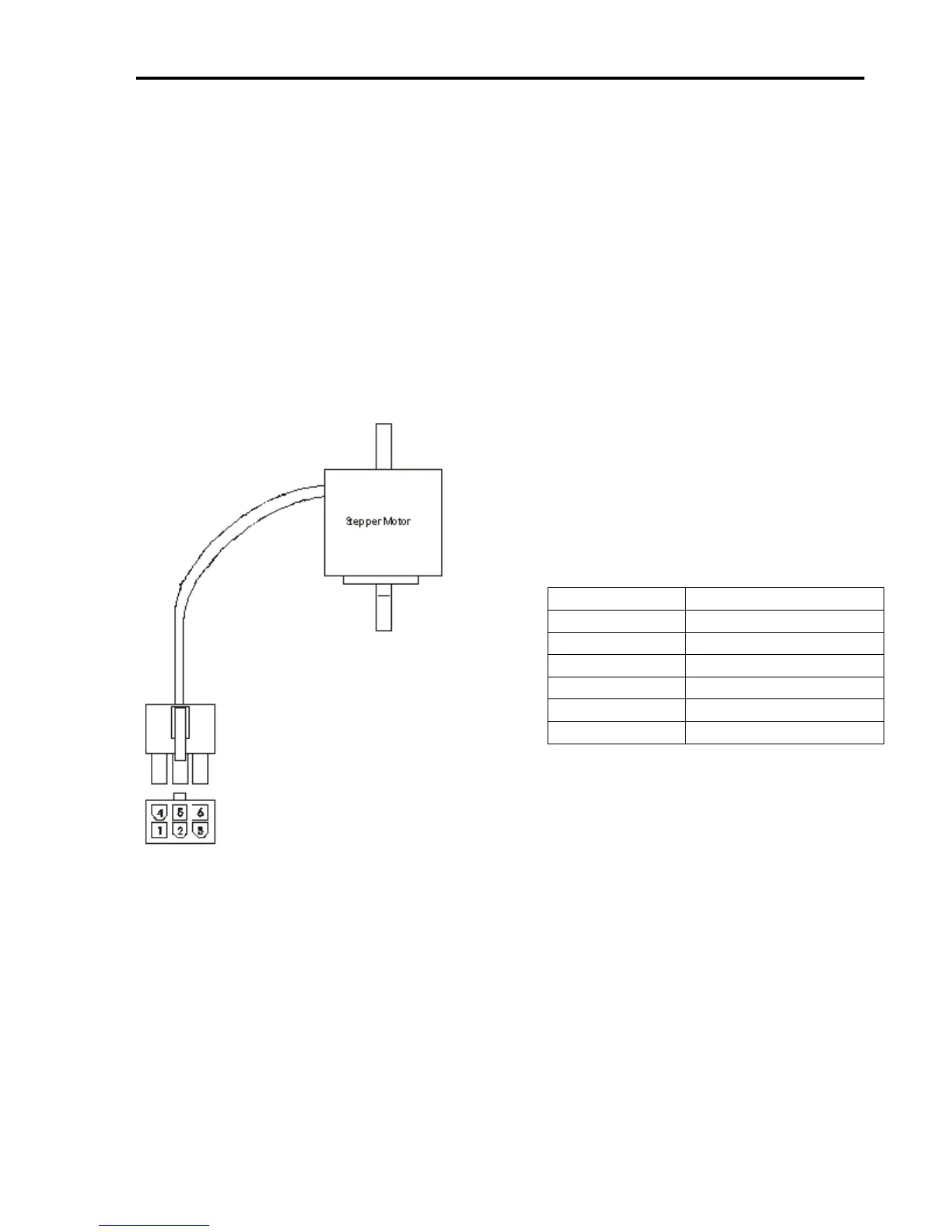

8. Stepper Motor Cabling
Motor Cable - 2 Twisted pair (one pair for A coil and one pair for B Coil) 22 gauge and
shielded (18 gauge for 6A motors). Shield is only connected to noted pin on Molex-
Waldom connector and should not be connected to motor end. Use Belden - M 8723 CM
2PR22 Shielded Cable or equivalent.
Connector - Molex - Waldom 6-Pin Mini-Fit Jr.
Receptacle Housing Part # 39-01-2060.
Female Pins Part # 39-00-0039 or 39-00-0047
Motor Wiring for Other Stepper Motors
If you have your own stepper motor, you can use the following charts for your
wiring. Note that the motor wire colors will vary.
Molex Pin
Motor Wire
1
B
2
Cable Ground Shield
3
A
4
B~
5
No Connection
6
A~
