FlashCut CNC Section 10 Driver Module Upgrades
39
10. Driver Module Upgrades
To upgrade your CNC controller such as adding a 4
th
or 5
th
axis you should install the
new drive module(s) using the following instructions.
Improper wiring can cause damage to your driver box and/or motors. Please take
care in following these instructions properly. Please refer to the drawings below for
the correct logic connectors.

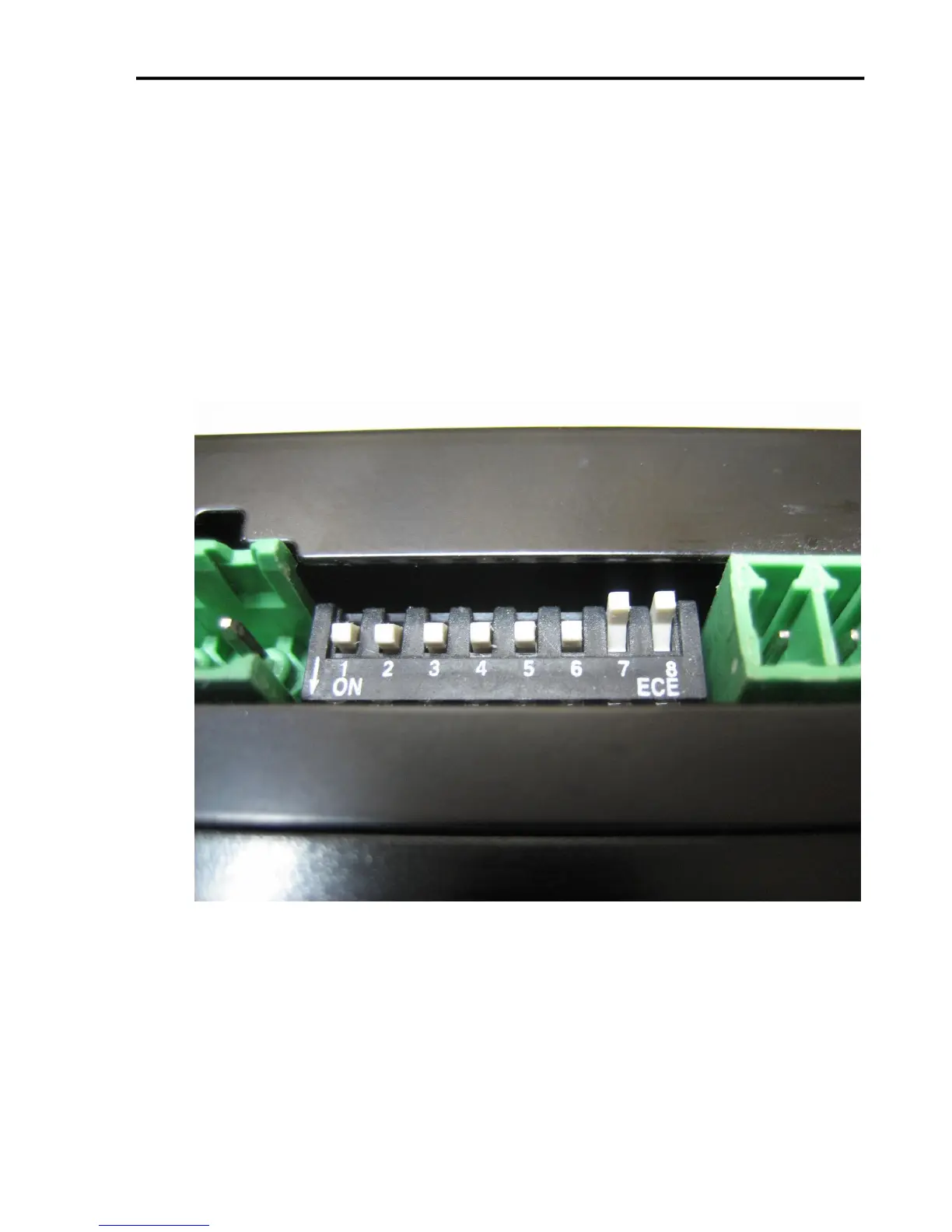

1. Set the Dip Switches to the appropriate settings for your application (default settings
pictured).
