Connectors JP80, JP81, JP82

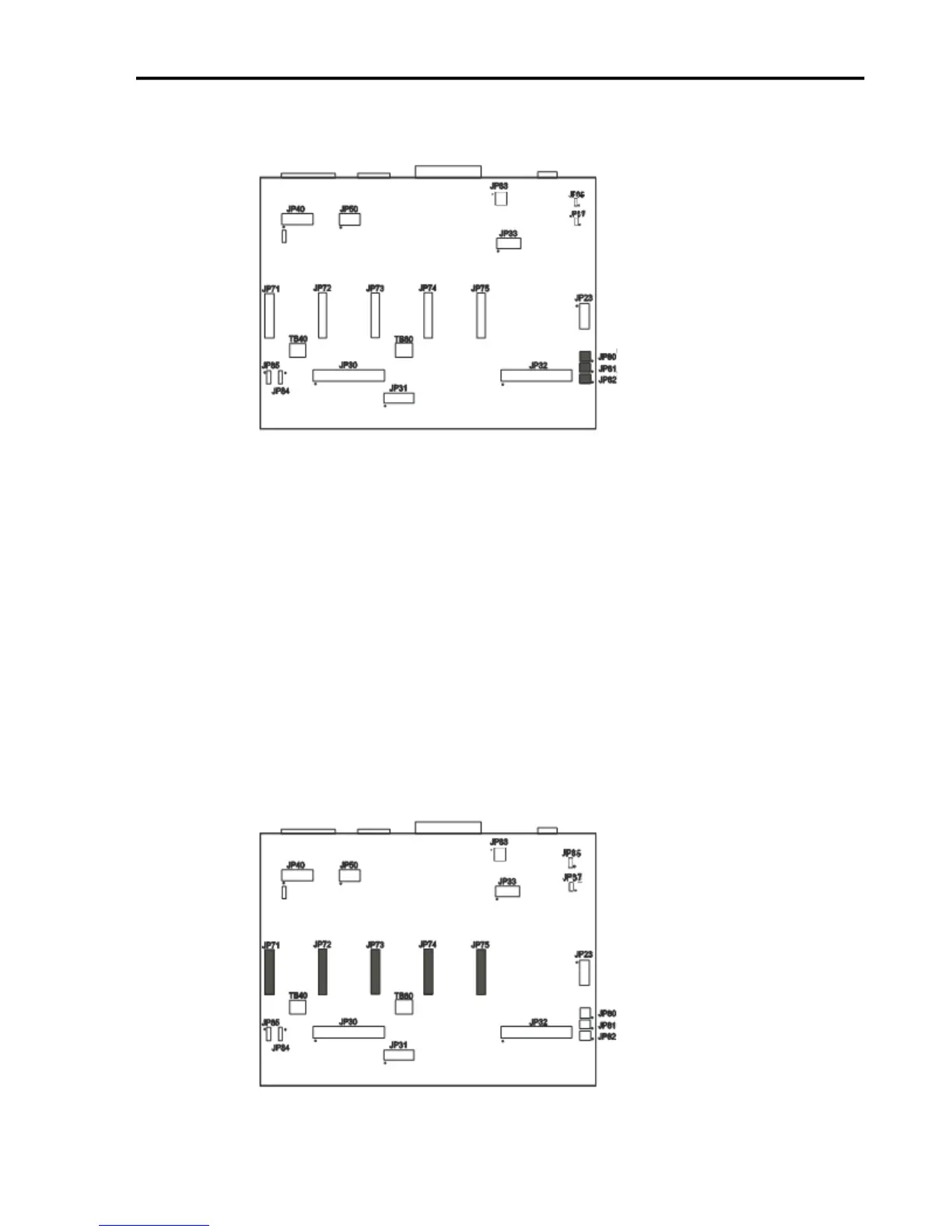

JP80 – Rear Panel Power
Connect the main power here. It can be 8.5V – 16V DC or AC. See
current draw chart for power requirements.
JP81 – Rear Panel Fuse
This is for an optional power fuse. The unit is shipped with a shunt
instead of a fuse. If you replace the shunt with a fuse, it should be sized
according to your power requirements.
JP82 – Front Panel Switch
Connect the main power switch here.
Axis Plug-In Interfaces
Axis Plug-Ins JP71 – JP75
