Dreamer NX User Guide | www.flashforge.com
50

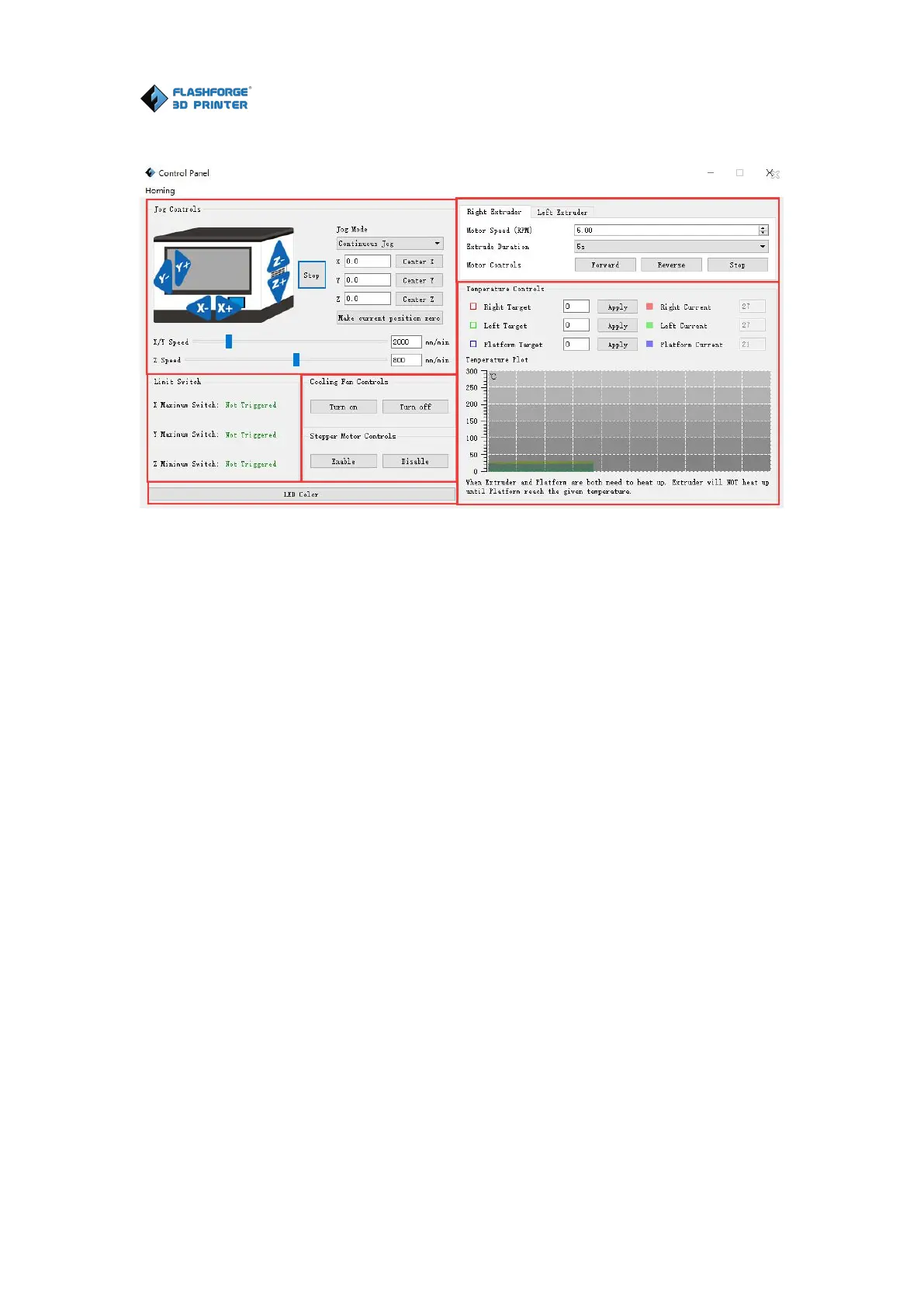

control panel.
6-23
● Jog Controls
a. Jog Mode：Select the distance that extruder/build plate move a single time
(that is, the distance extruder/build plate move upon your single click).
b. Six blue arrow direction buttons: Control the move along X/Y/Z axis. X/Y
axis button control extruder move, Z axis button control build plate move. Click
X-, extruder will move leftward a specified distance; Click X+, extruder will
move a specified distance rightward. Click Y-, extruder will move forward a
specified distance; Click Y-, extruder will move backward a specified distance.
Click Z-, build plate will move upward a specified distance; Click Z-, build plate
will move downward a specified distance. (Specified distance refers to the
move distance you set in Jog Mode.
c. Stop: Click the [Stop] button to abort the current movement.
d. XYZ coordinate frame on the right side: Show the current position of
extruder/build plate.
e. Make Current Position Zero button: Set the current position of the
extruder/build plate as (0, 0, 0). (NOTE: X, Y, and Z boxes are for display
