4 - VALVE OPERATION
4.2 VALVE 6700 PRESENTATION

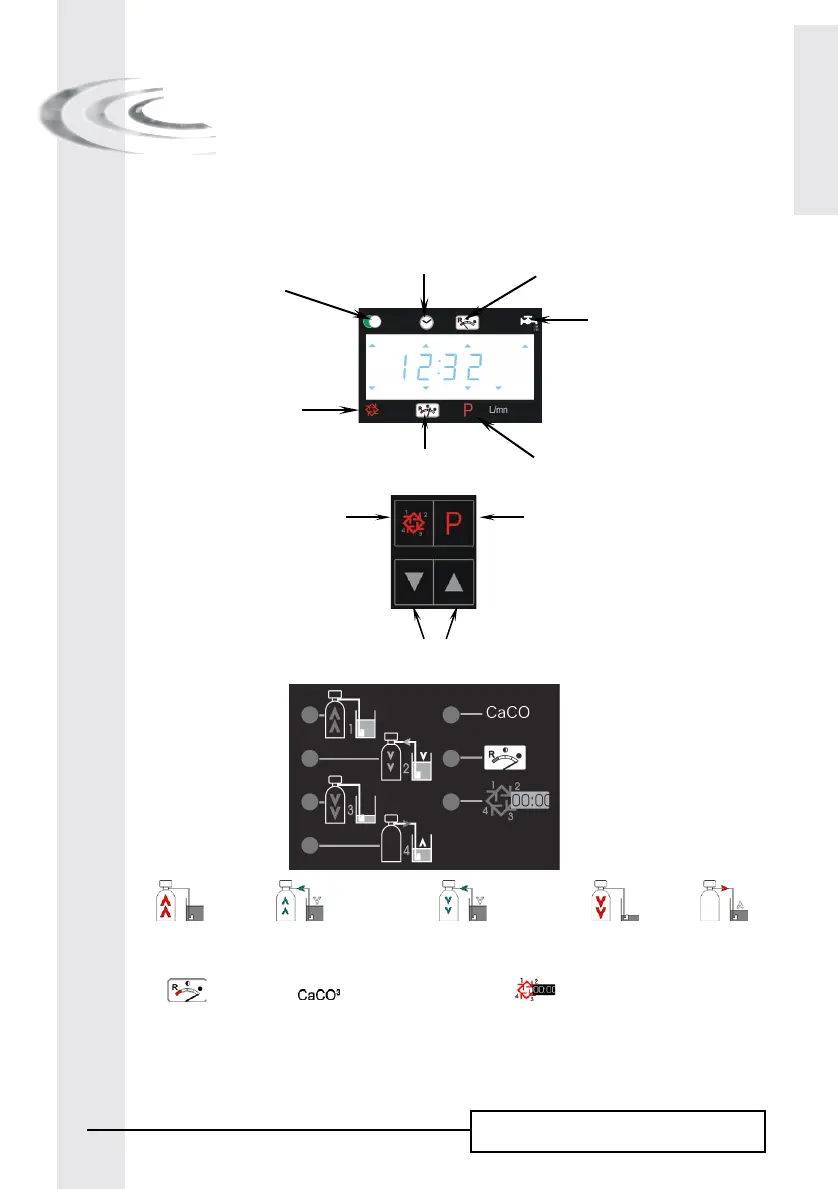

Program display indicator: Arrow on
Volume remaining display indicator:
Arrow on
Regeneration indicator: Arrow on
Extra cycle button
Program button
Up and Down set
button
Backwash
Valve capacity
Hardness Regeneration time
Brine draw/slow rinse
Up flow
Brine draw/slow rinse
Down Flow
Rapid rinse Brine refill
Time of day display indicator
Time of day display: arrow on
Service Indicator:
Valve in service : arrow on
Regeneration tonight: flashing arrow
Flow indicator
Arrow flashes with water flow
Reserve indicator
Volume remaining at or below the reserve : flashing
arrow
Note: during programming and during regeneration, the red led next to the appropriate symbol turns on
