SECTION 4 - ADJUSTMENTS
page 4-5

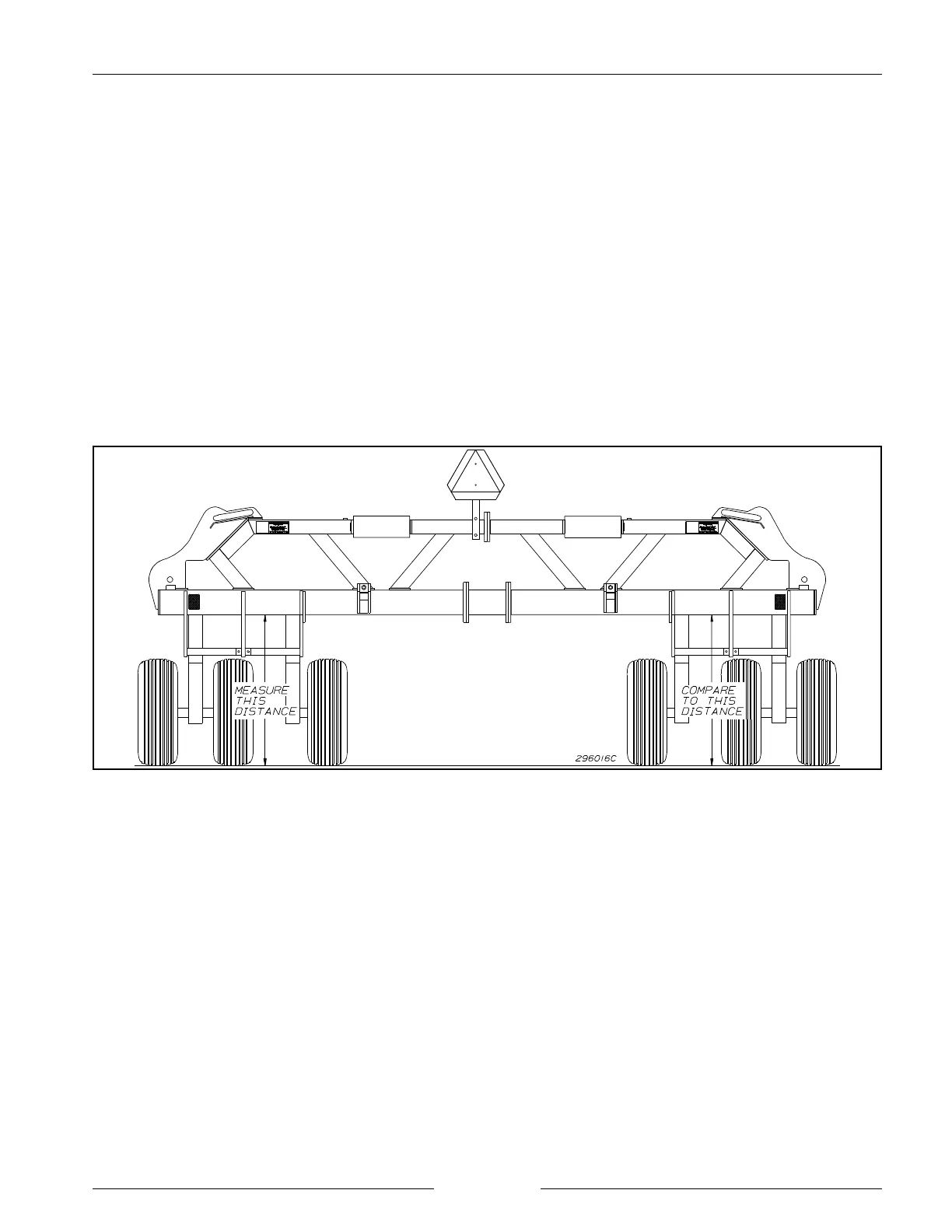

Measure Rear Bar Height and Compare Distances
6. Release all the down pressure springs from the
openers.
NOTE: This is a one time leveling operation.
7. Lower the machine so the rear bar is 52 to 69 cm (23"
to 27") from the ground surface.
8. Measure the distance from the bottom of the rear bar to
the ground on the left side of the center section.
9. Measure the distance from the bottom of the rear bar to
the ground on the right side center section.
10. Adjusting the bolt on the right adjuster link to raise or
lower the right side until the distance measured in step
8 is the same as the distance measured in step 9.
Repeat as necessary.
11. Lock jam nuts and proceed to the wing initial leveling
procedure.
