SECTION 4 - ADJUSTMENTS
page 4-4

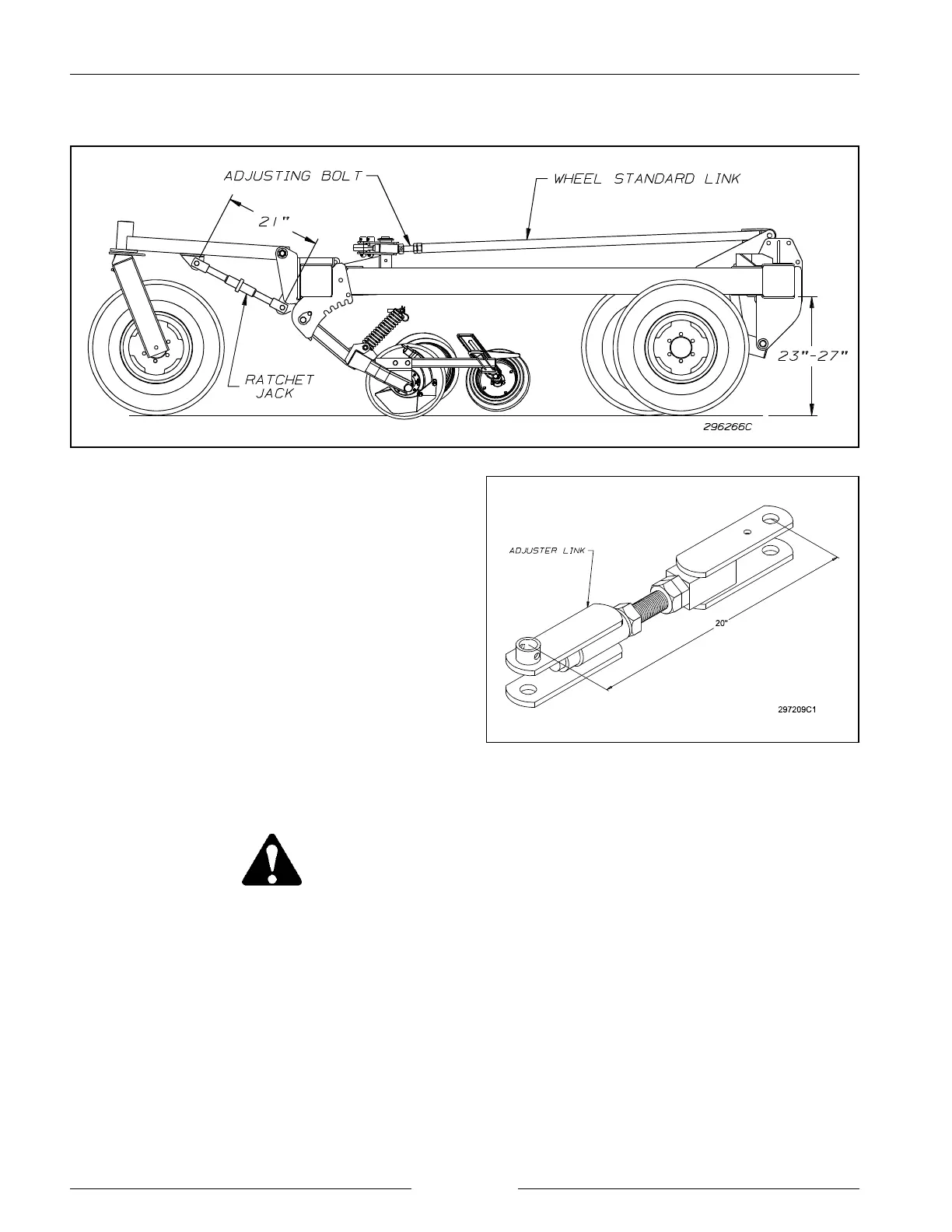

Side View of the Air Drill
Adjuster Link Initial Setting
WARNING!
CENTER SECTION INITIAL LEVELING
1. Before leveling the machine, be sure tires have the
correct operating pressures.
2. Locate the air drill on level ground.
3. Lower the wings and be sure the wing lift cylinders are
fully extended.
4. Check that all caster wheel ratchet jacks are adjusted
to a pin center-to-center distance of 533 mm (21").
5. Check that the left adjuster link assembly on the center
section measures 508 mm (20") from pin center to pin
center. If it does not, adjust as necessary. Refer to the
assembly manual for detailed instructions.
Never extend the adjuster link to exceed 22
inches center to center between pins. Failure to
follow these instructions could result in separation
of the adjuster link and tension link causing rapid
uncontrolled falling of the implement. Failure to
follow these directions could cause serious bodily
injury.
