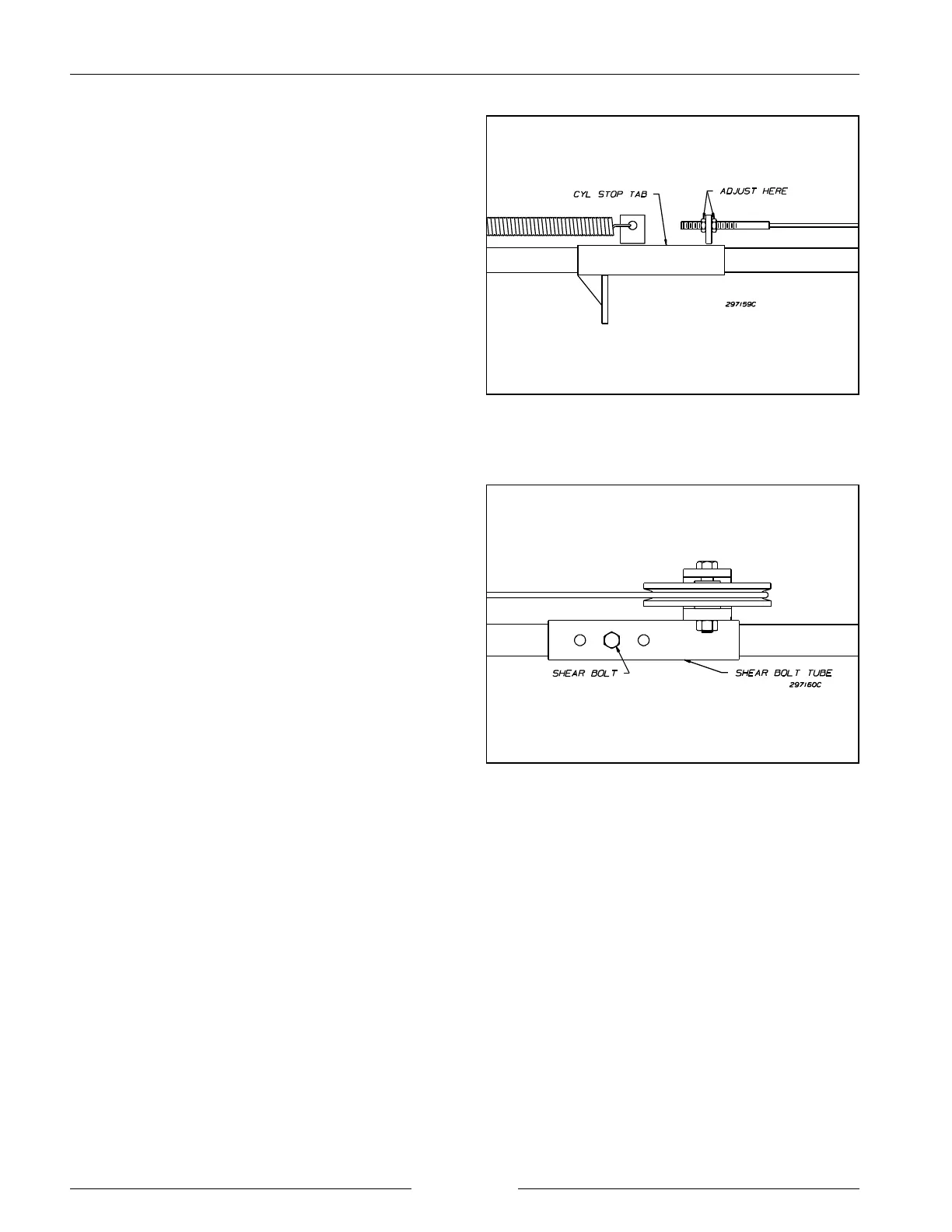

Cylinder Stop Tab Adjustment
Shear Bolt Tube Adjustment
6. If the front to back measurements are not equal adjust
the cylinder depth stop tab accordingly. If the machine
is low in the back adjust the cylinder stop tab towards
the rear of the machine. If the machine is high in the
back adjust the cylinder stop tab towards the front of
the machine
7. Repeat steps 4 - 6 until the machine is level front to
back.
8. If there is not enough adjustment on the threads of the
depth stop cable reposition the shear bolt to a new hole
in the shear bolt tube and continue with step 6.
9. Reattach the down pressure springs on the openers and
adjust the frame to desired height.
FINAL LEVELING
The initial center section and wing leveling will provide
adequate frame leveling. However, to ensure accurate
seeding depth from your implement, final adjustments
should be carried out in the field under normal field
conditions. The openers system provide additional depth
control directly behind where the seed is placed
completing the depth control no-till seeding system. The
final depth control adjustments should be done with the
openers. Refer to the Opener Operator’s manual for
complete instructions.
