SECTION 4 - ADJUSTMENTS
page 4-6
Leveling Wings

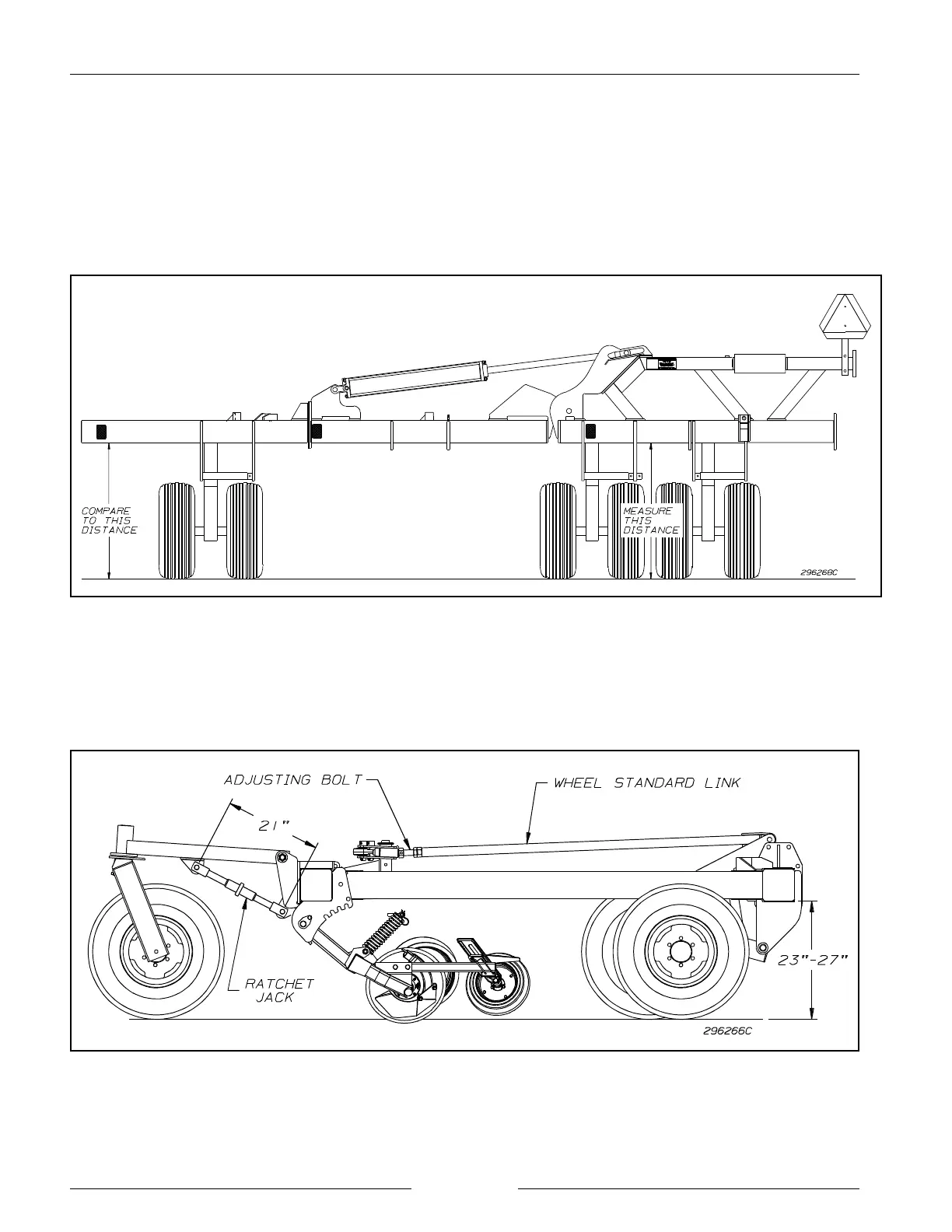

Side View of the Air Drill
WING INITIAL LEVELING
1. Before beginning to level wings, make sure the center section initial leveling has been completed and the center section
rear bar is level.
2. Measure the distance from the bottom of the rear bar to the ground on the left side of the center section. Compare
distance with the outer measurement on the wing.
3. Adjust the bolt on the wheel standard link to raise or lower the wing until the center frame distance is equal to the
distance of the wing frame.
NOTE: Do not allow the threaded portion to exceed 14 cm (5.5 inches) in length. For drills with serial number
DOC-114040 and less, do not allow the threaded portion to exceed 9 cm (3.5 inches) in length.
4. Repeat steps 2 and 3 for the right hand wing. Lock all jam nuts once leveling is complete.
