SECTION 4 - ADJUSTMENTS
page 4-9
Hitch Leveling Adjustment
HITCH ADJUSTMENT

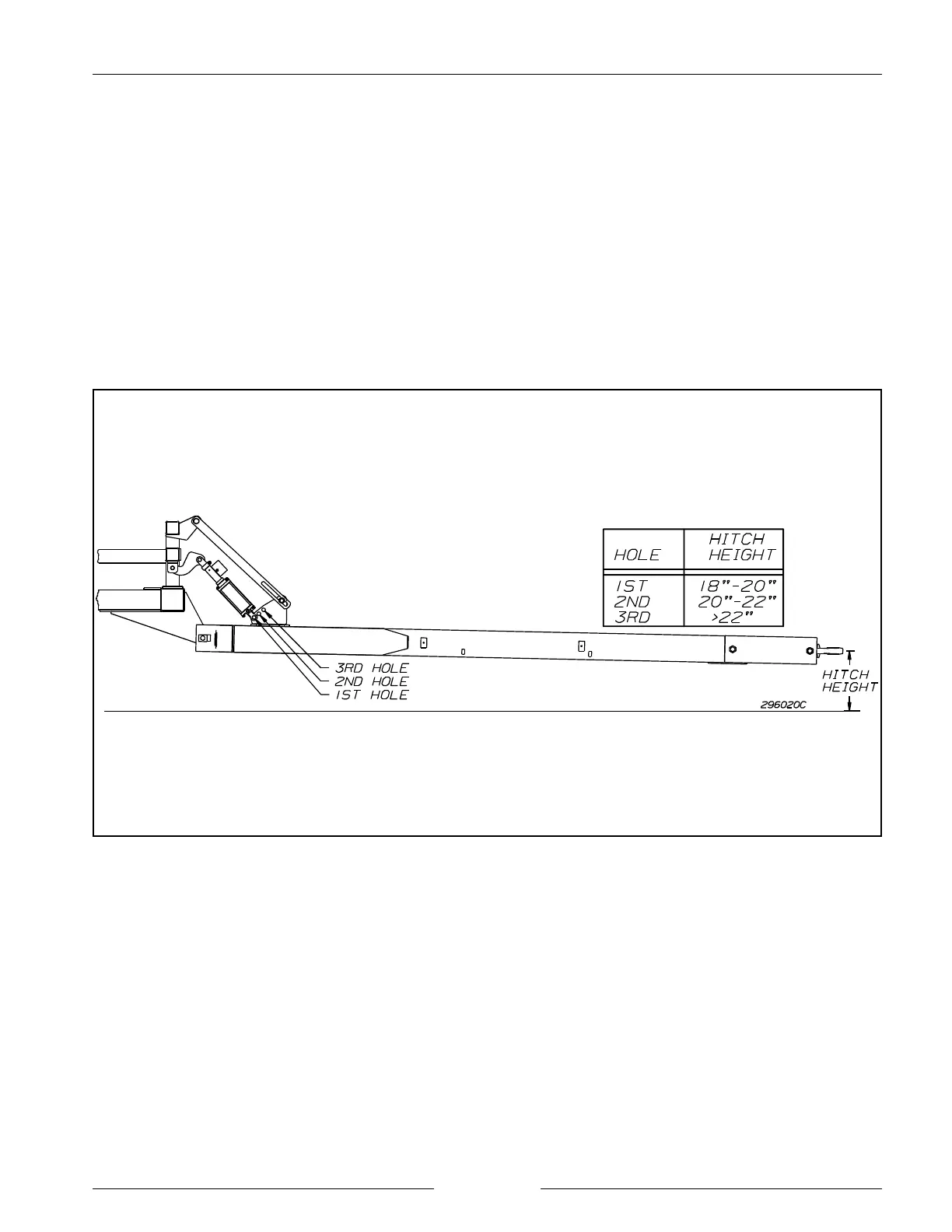

The air drill hitch may be adjusted to accommodate various tractor hitch heights. This adjustment allows the implement
to be level when in transport position.
1. Position the air drill in field position and locate on level ground. Lower the frame to allow the floating hitch to become
operational (float link free to rotate).
2. Remove the snap rings and pins at the base end of the hitch cylinders and position in the hole that matches the tractors
hitch height.
3. Engage the lift cylinder and lift the implement to maximum height. Check the center section for front-to-back level.
Readjust pin hole location if necessary.
