Introduction
6
6.1.4
Research
&
development
1
2
3
4

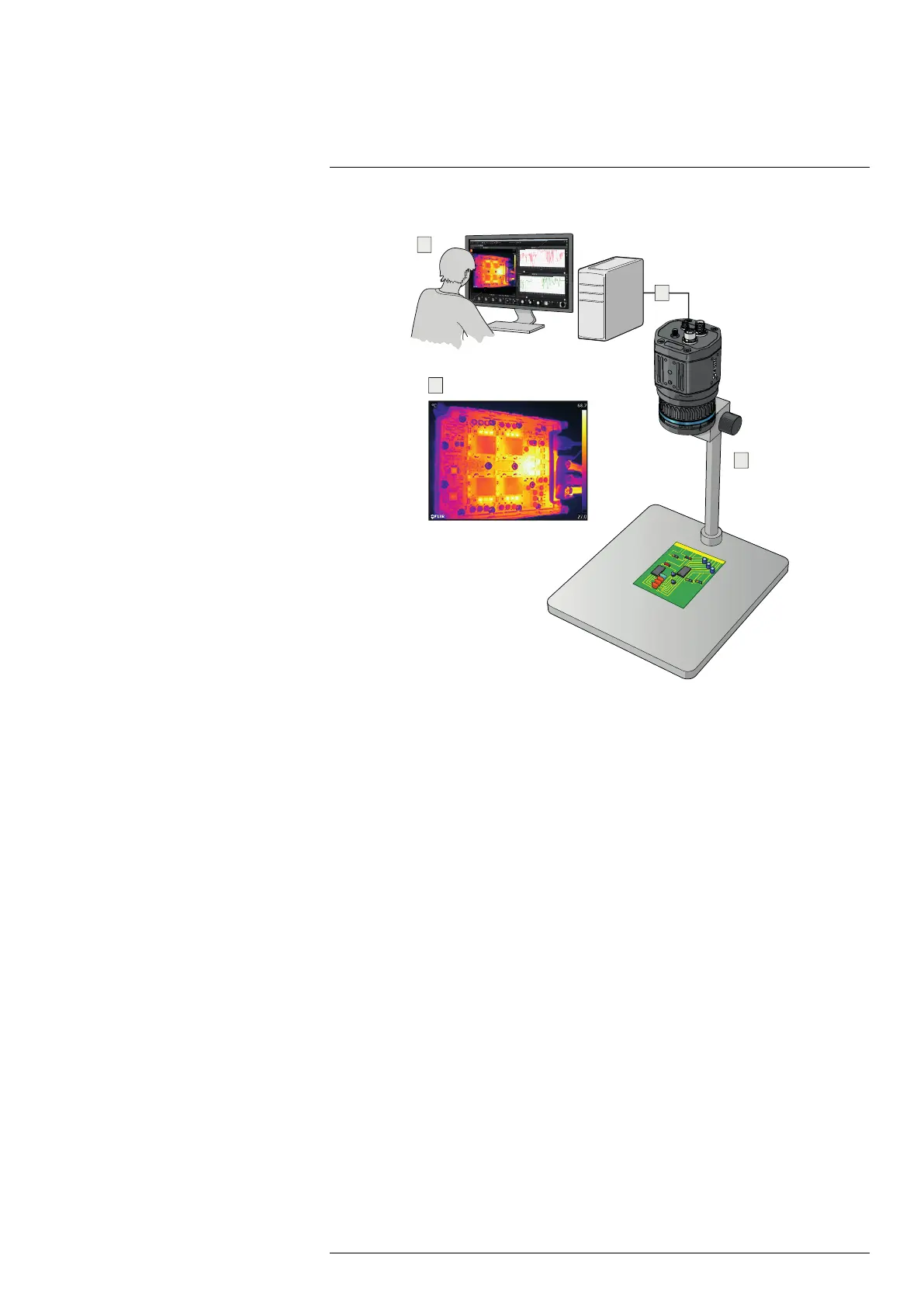

Figure
6.5
Checking
heat
dissipation
on
PCB
during
development
1.
Computer
running
FLIR
science
software,
e.g.,
FLIR
Research
Studio
.
2.
CA
T
6
Ethernet
cable.
3.
Laboratory
setup
with
a
FLIR
A400/A700
Streaming
camera.
4.
Example
thermal
image.
#T810409;
r.
AB/66574/66574;
en-US
13
16
18
