FLIR FC series User Manual

427-0089-00-12 Version 160 March 2019 43
This document does not contain any export-controlled information.
Advanced Configuration

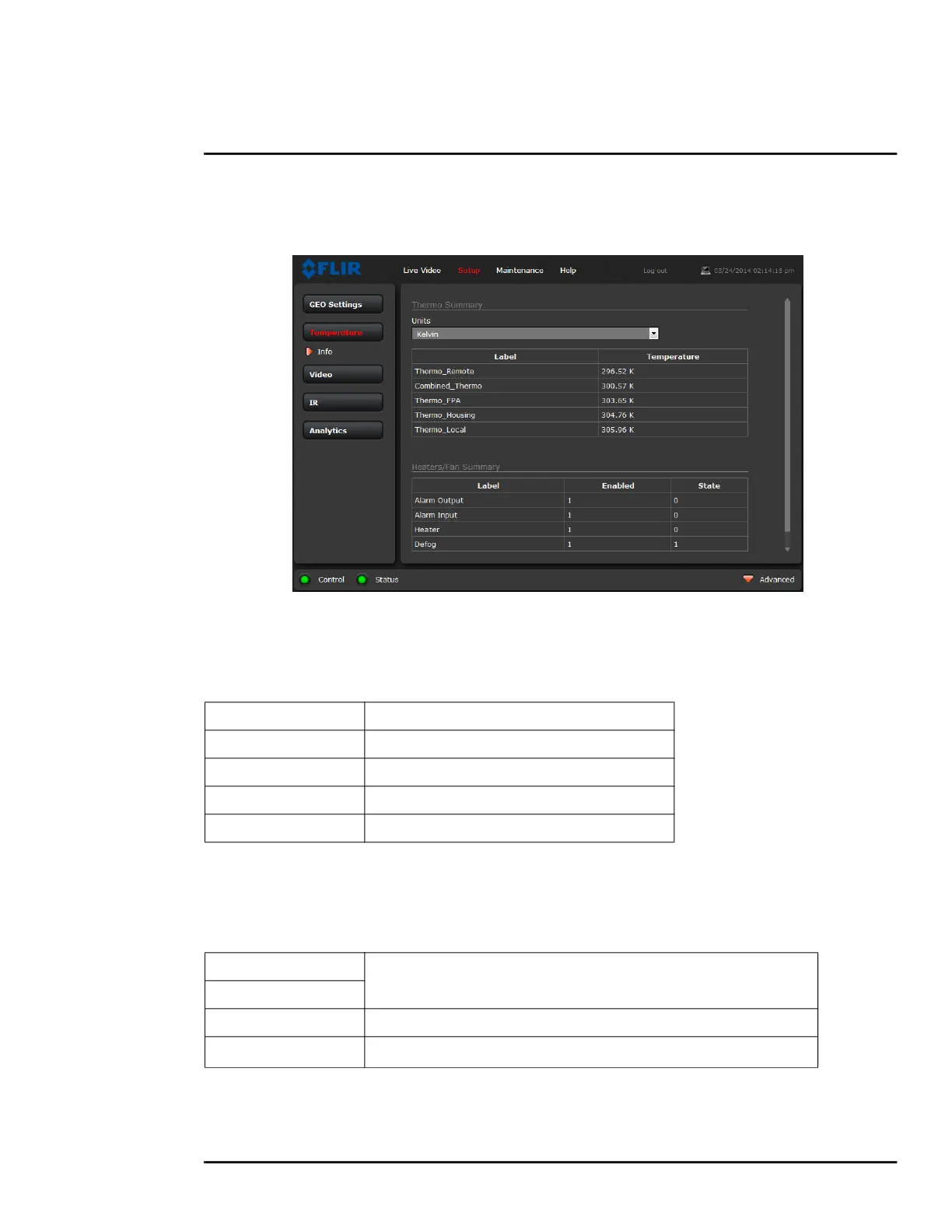

3.1.1 Temperature Page
The Temperature Info page displays temperature readings from the camera and GPIO signal status.
Thermo Summary
Select the temperature units to display: Kelvin, degree Celsius, or degree Fahrenheit.
Heater/Fan Summary
The GPIO signal status is shown.
Table 3-1: Temperature Labels
Thermo_Remote Heater temperature
Combined_Thermo Calculated window target temperature
Thermo_FPA Tau IR core Focal Plane Array temperature
Thermo_Housing Tau IR core housing
Thermo_Local FC-Series camera circuit board
Table 3-2: GPIO Labels
Alarm Output
User GPIO signals are enabled by default.
(Refer to General Purpose Input/Output (GPIO), pg. 6.)
Alarm Input
Heater Internal heater output signal
Defog
Internal heater input signal—when 0, heater power is limited
a
a. For example, when the camera is powered by the lower power IEEE 802.3af-2003 PoE standard. Re-
fer to PoE+ Power Supplies, pg. 7.
