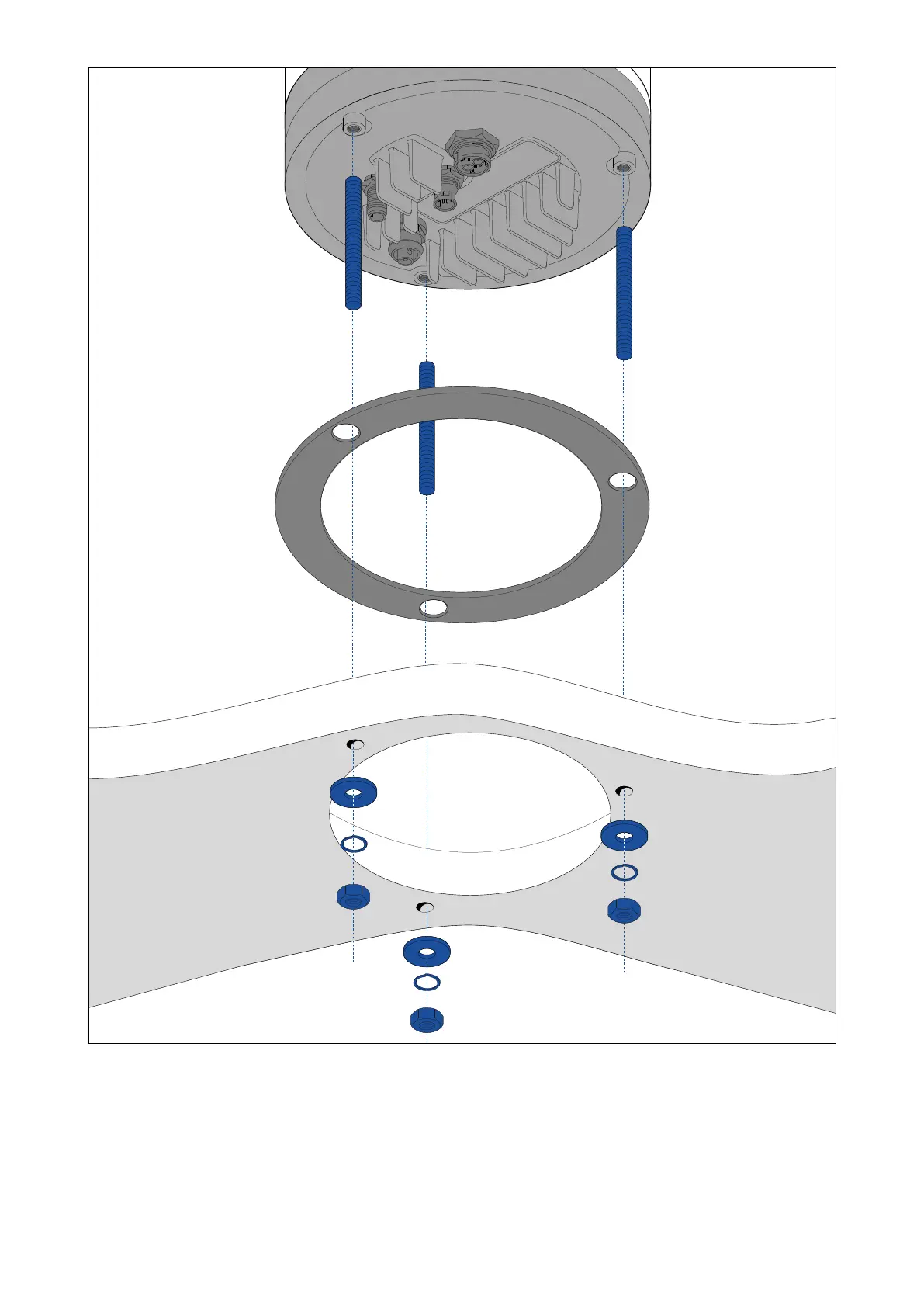

1.Usingthetemplatesupplied,markanddrilltheholesformountingthecamera.
Mountingholescarepoints:
•Checkthedimensionsofanyprintedtemplate(toensurethatthetemplateisprintedto
thecorrectscale)priortodrillinganyholes.
•Notetheareaatthefrontofthecamera,andmakesurethetemplateisoriented
properlyrelativetothebowofthevessel.Thisisaffectedbywhetherthecamera
istobemountedball-uporball-down.
Installation
33
