FLIR PTU-5 - 26-Pin Base Connector

PTU-5 User Manual
Copyright 2017, FLIR Commercial Systems, Inc.
A-2

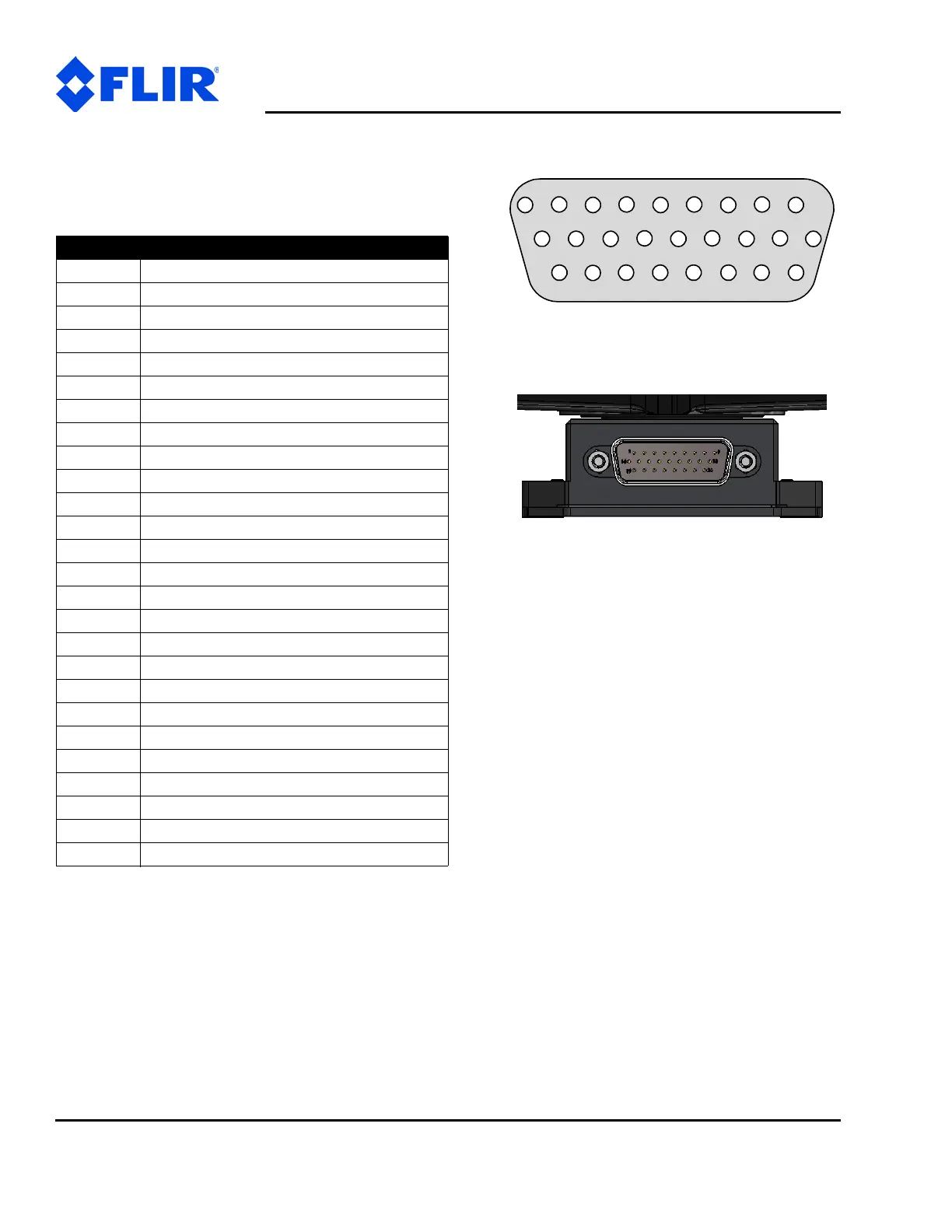

A.1 - 26-Pin Base Connector
This table displays the PTU-5 Norcomp, D-Sub HD26-pin
connector pin assignments.
PIN ASSIGNMENT
1 PTU POWER SUPPLY
2 PTU POWER SUPPLY RETURN
3 PTU_PHY_RXP
4 PTU_RS485_TX-
5 PTU_RS485_GROUND
6 PAYLOAD SIGNAL 6
7 PAYLOAD SIGNAL 9
8 PAYLOAD SIGNAL 2
9 CHASSIS GROUND
10 PTU POWER SUPPLY
11 PTU_PHY_TXP
12 PTU_PHY_RXN
13 PTU_RS485_RX+
14 PAYLOAD SIGNAL 7
15 PAYLOAD SIGNAL 10
16 PAYLOAD SIGNAL 3
17 PAYLOAD SIGNAL 4
18 CHASSIS GROUND
19 PTU POWER SUPPLY RETURN
20 PTU_PHY_TXN
21 PTU_RS485_TX+
22 PTU_RS485_RX-
23 PAYLOAD SIGNAL 11
24 PAYLOAD SIGNAL 5
25 PAYLOAD SIGNAL 8
26 PAYLOAD SIGNAL 1
24 36 58 79
11 101215 14
17
16
20 192124 2325
18
26
22
1
13
