A.3 - 26-Pin Breakout Cable

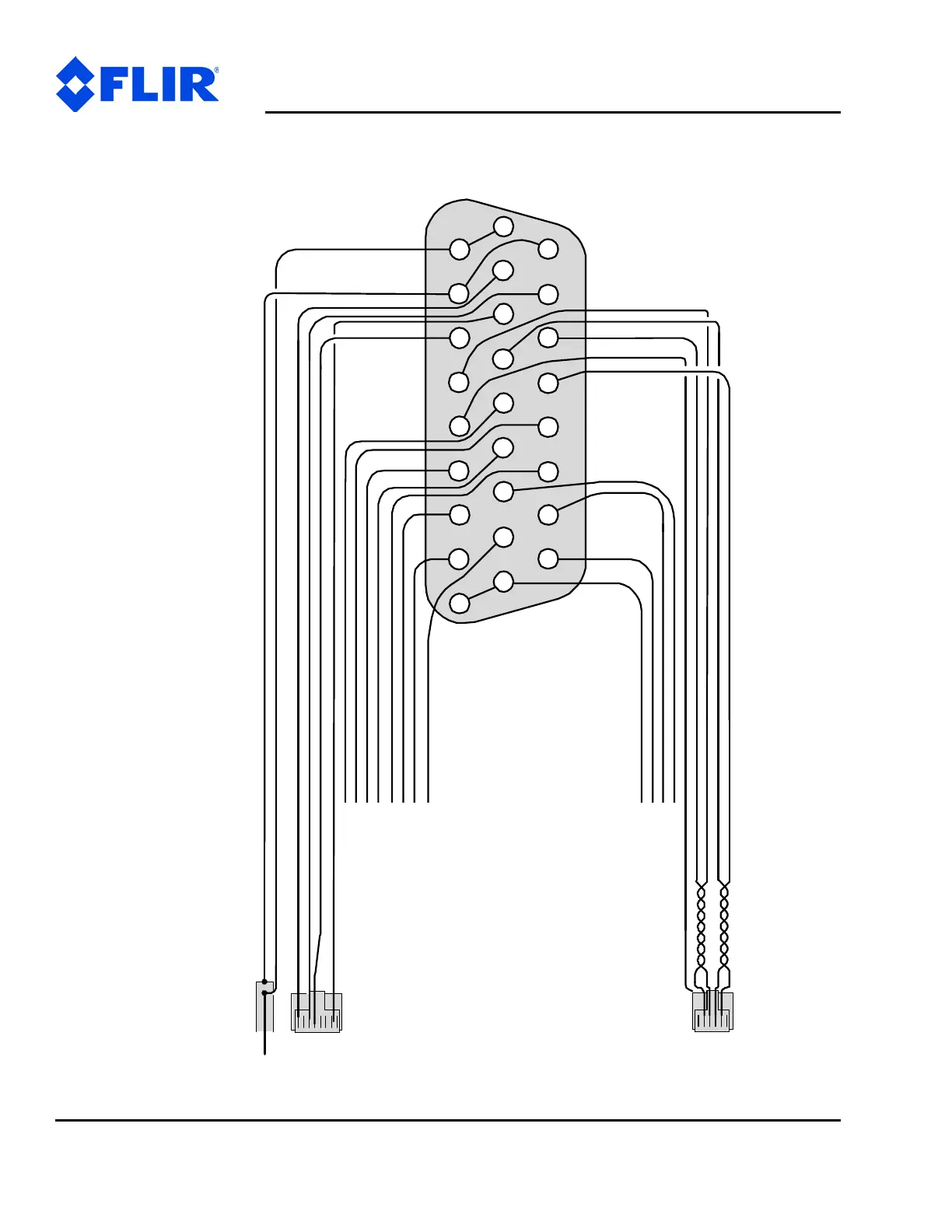

This diagram displays the optional 26-pin breakout cable (308-0278-XX-00) wiring and connectors.
2
1 4
PTU-5 Breakout Cable
Note: Some of the signals shown here may not be used in your configuration.
4 36 58 79
11 101215 14
17
16
20 192124 23
25
18
26
Power connector (center hot)
PTU SUPPLY (PIN_1 = WHITE/RED; PIN_10 = DARK BLUE) PTU SUPPLY RETURN (PIN_19 = KHAKI; PIN_2 = PURPLE)
1 8
PTU_PHY_TXP (WHITE/ORANGE) PTU_PHY_TXN (ORANGE) PTU_PHY_RXP (WHITE/GREEN) PTU_PHY_RXN (GREEN) PTU_RS485_GND (BLACK) PTU_RS485_TX+ (BROWN) PTU_RS485_TX- (RED) PTU_RS485_RX+ (WHITE) PTU_RS485_RX- (YELLOW)
1
9
8
7
6
5
4
3
10
12
11
22
1
13
2
13
PAYLOAD SIGNAL 3 (WHITE/YELLOW) PAYLOAD SIGNAL 8 (WHITE/GRAY) PAYLOAD SIGNAL 1 (YELLOW/GREEN) CHASSIS GROUND (NONE) PAYLOAD SIGNAL 4 (BLACK/BLUE) PAYLOAD SIGNAL 2 (BLACK/RED) PAYLOAD SIGNAL 9 (GRAY) PAYLOAD SIGNAL 5 (LIGHT BLUE) PAYLOAD SIGNAL 10 (WHITE/BROWN) PAYLOAD SIGNAL 6 (WHITE/PURPLE) PAYLOAD SIGNAL 11 (WHITE/BLUE) PAYLOAD SIGNAL 7 (WHITE/BLACK)
DIN M12 Ethernet connector
RJ11 6P4C, tab up
