Appendix A: Electrical Specifications
A-3

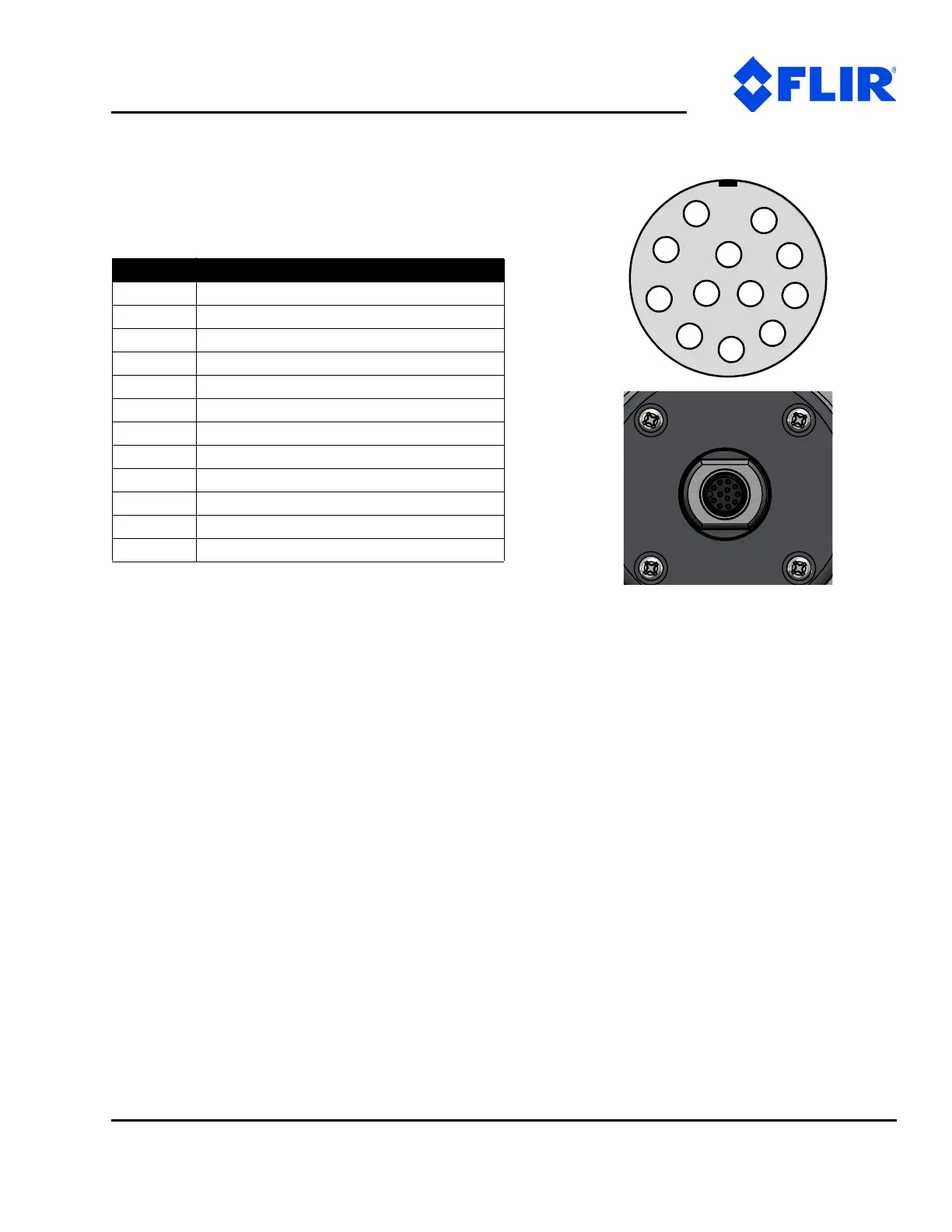

A.2 - 12-Pin Payload Connector
This table displays the PTU-5 Phoenix M12 12-pin payload
connector (part number 1411979; mates to part number
1411987) pin assignments.
PIN ASSIGNMENT
1 PAYLOAD SIGNAL 1
2 PAYLOAD SIGNAL 2
3 NOT USED
4 PAYLOAD SIGNAL 3
5 PAYLOAD SIGNAL 4
6 PAYLOAD SIGNAL 5
7 PAYLOAD SIGNAL 6
8 PAYLOAD SIGNAL 7
9 PAYLOAD SIGNAL 8
10 PAYLOAD SIGNAL 9
11 PAYLOAD SIGNAL 10
12 PAYLOAD SIGNAL 11
2
3
4
5
6
7
8
9
10
11
12
1
