Appendix B: Mechanical Drawings
B-3
2.35
59.6
2.29
58.2
.19
4.7
1.42
36.0
1.37
34.7
1.57
40.0
.39
10.0 TYP
1.18
30.0
.08
R2.0
1/4-20 UNC THRU

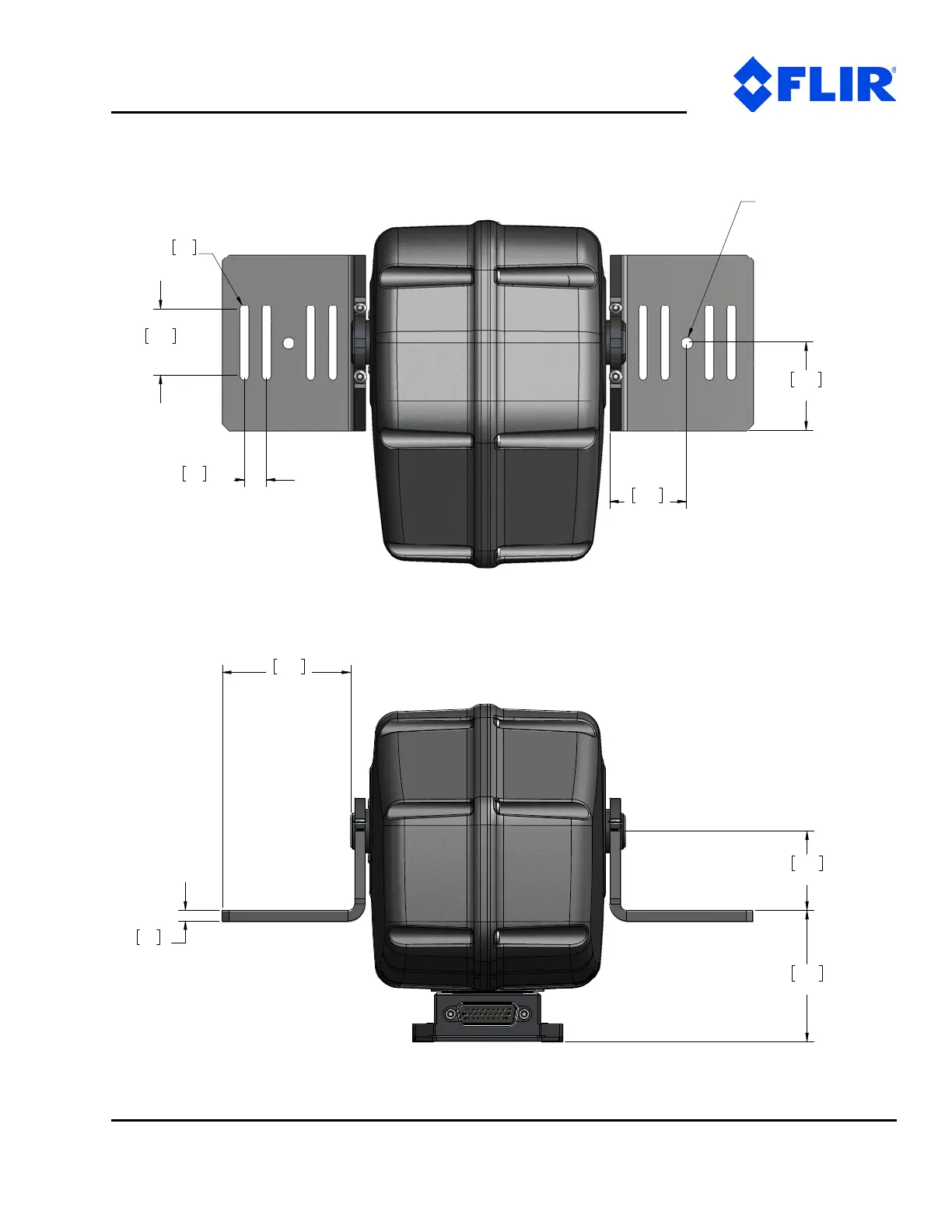

SIDE MOUNT BRACKET CONFIGURATION
