to extend the range of night vision goggles. The Laser Pointer is
integrated with a keyed safety interlock switch (Figure 1-4) that will
disable the laser, unless armed. The Laser Pointer must be enabled
(armed) before the Laser Pointer can be activated with the Laser Pointer
Switch (Figure 1-5). The Laser Pointer Eye Safety Data is shown in
Table 1-5 and the Laser Pointer Optical Characteristics are listed in
Table 1-6.
NOTE:
When any menu is displayed the Laser Pointer is disarmed
(Turned Off).

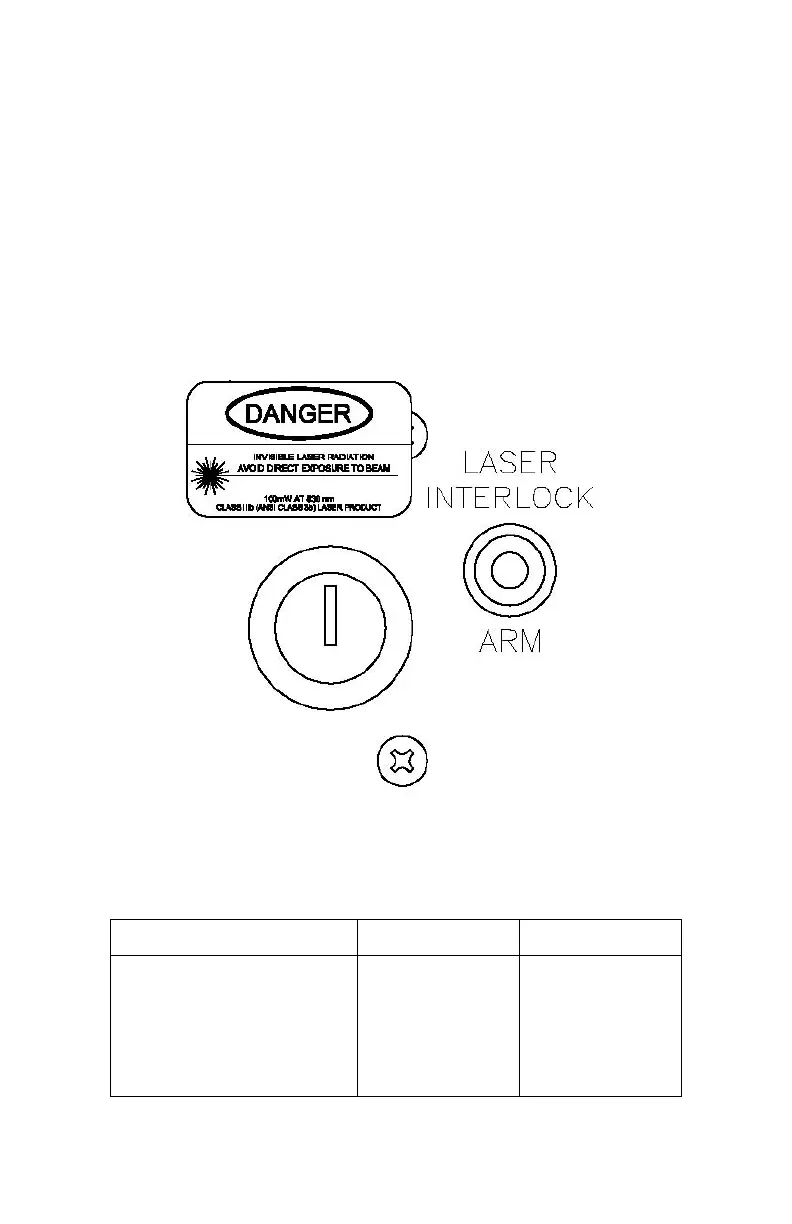

Figure 1-4. Laser Safety Switch (Key controlled)
Table 1-5. Laser Pointer Eye Safety Data
Eyesafe limit Feet Meters
Unaided Eye 376 115
7 x 50 mm Binoculars 2201 671
11 x 80 mm Binoculars 3458 1054
20 x 120 mm Binoculars 5390 1643
