18
Hot targets when in IR black-hot polarity
Cold targets when in IR white-hot polarity
Dark colored targets when in Color CCD
Correlation Mode (CORR) - This mode is an Area Correlation Mode. It
is much like Scene Lock Mode except the scene of interest is only that
contained within the tracking window. This mode is good for tracking
slow moving or still targets in an uncluttered area.
3.1.6 Symbology (SYM) Switch
The SYM Switch (like the Symbology Level Select Menu) allows the user
to change the system symbology overlay by selecting between the four
different levels of graphic information displays or “masks”. Four pieces
of the graphic information are displayed at all times; Date and time, FLIR
Logo, El (Elevation) and Az (Azimuth) position indicators.
The following graphic symbols (selectable) will only be displayed when
the operator has selected (or not selected) the respective mode or
function:
The SYM switch is also used in Radar Bearing, Single shot Mode to
allow the SeaFLIR II Imaging System to accept a single Radar Bearing
input and slew to the radar data point. During Radar Bearing Mode the
SYM Switch has no affect on symbology. In the Radar Bearing Single-
shot Mode the SeaFLIR II operator would press the SYM switch to
accept radar bearing data and the SeaFLIR II Imaging System would
slew to the radar bearing. In the Radar Bearing Continuous Mode the
SeaFLIR II operator would press the SYM switch to remove offsets and
return to the radar bearing.

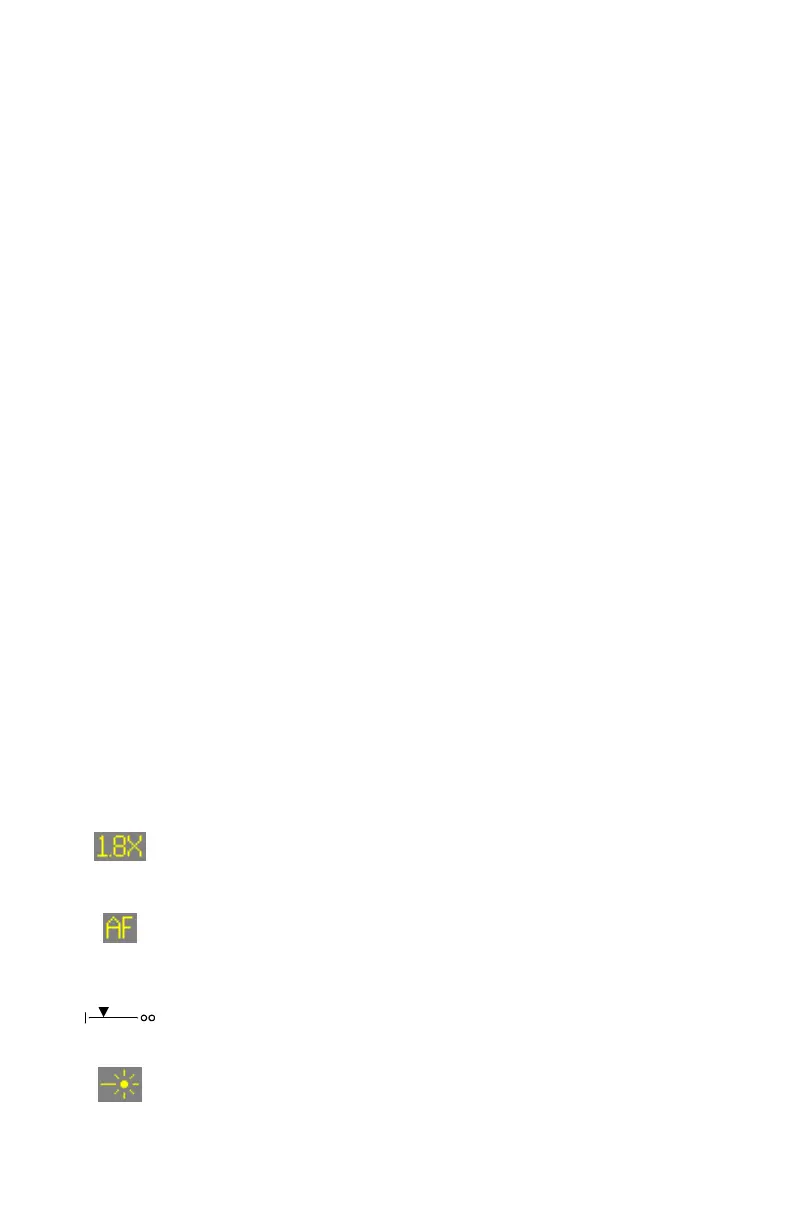

1.8X Extender – Displayed when the IR camera is the
active sensor 1.8X optical extender is engaged.
Auto Focus – Auto Focus is the default focus mode at
system power-up. When in Auto Focus for either IR or
CCD camera, the symbol AF appears in the left middle of
the display.
FOCUS – Displayed during focus (manual or auto) with
either IR or CCD cameras.
Laser Pointer – When the Laser Pointer (option) is
installed; the Laser Pointer symbol will display on the right
middle of the display when the Laser Pointer is activated.
