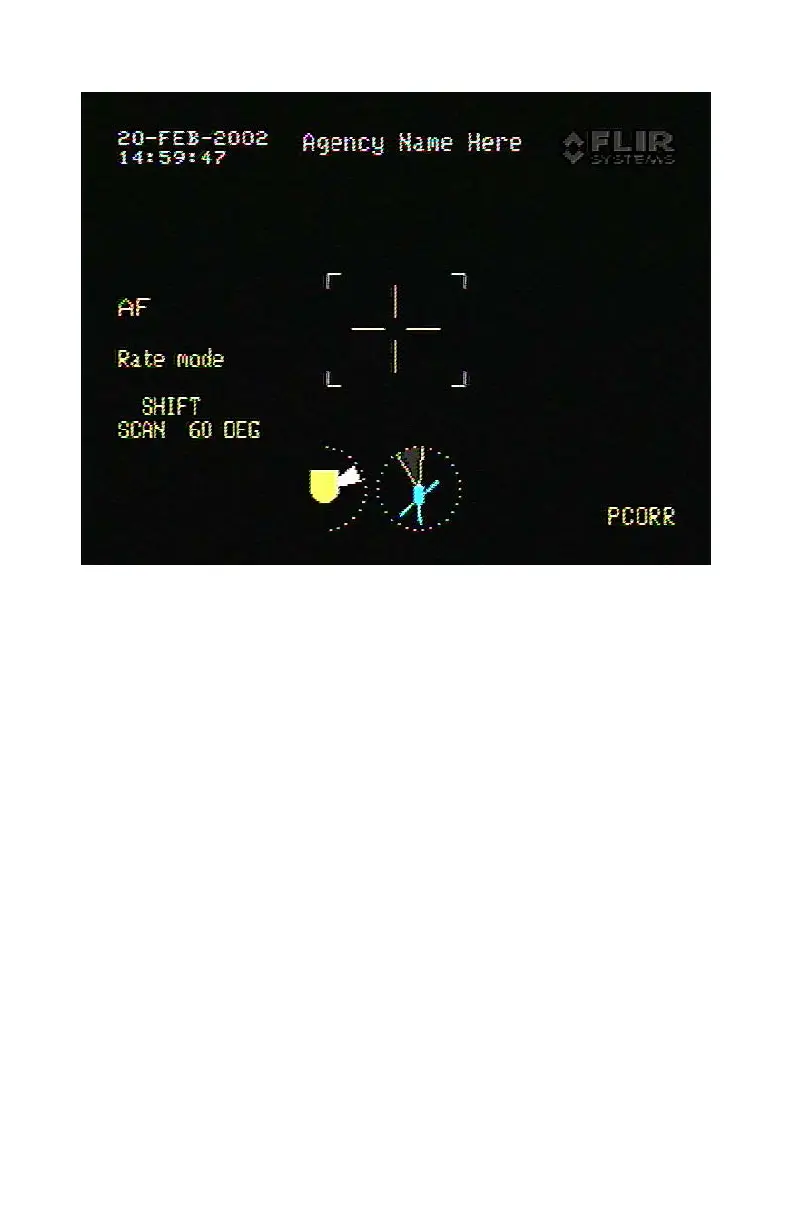

Figure 3-8. Auto Scan Width Adjust Display
3.2 Menu Mode
The SeaFLIR II Imaging System has a series of pull down menus.
These menus allow the operator to customize the display with identifying
information and to access many of the optional settings and features of
its on-board cameras and Laser Pointer (optional). Pressing the MENU
Switch will access the pull down menus to access the various internal
functions in the SeaFLIR II Imaging System. The operator can use the
Strain Gauge or the ZOOM or FOCUS controls to scroll up or down
through the menu items. To complete the change of the menu, press the
EXIT Switch.
MENU Switch – Pressing the MENU Switch activates the SeaFLIR II
Imaging System pull down menus (Figure 3-9).
ADJ Switch – activates the menu item on which the high liter rests.
 When the item selected is a command, ADJ executes the
command.
 When the item is a command that toggles a setting, the menu text
will contain a checkbox reflecting the current value of the setting.
