31
Also, after ADJ is pressed, the current menu remains active, and
the menu item is changed, to reflect the current value of the setting.
When the item is another menu, ADJ activates that menu.
When the item is either, Date and time or Agency name, ADJ
activates editing for that particular field.
When the item is “12 O’clock position set”, ADJ sets the current
azimuth position of the Gimbal to be the new 12 O’clock position.

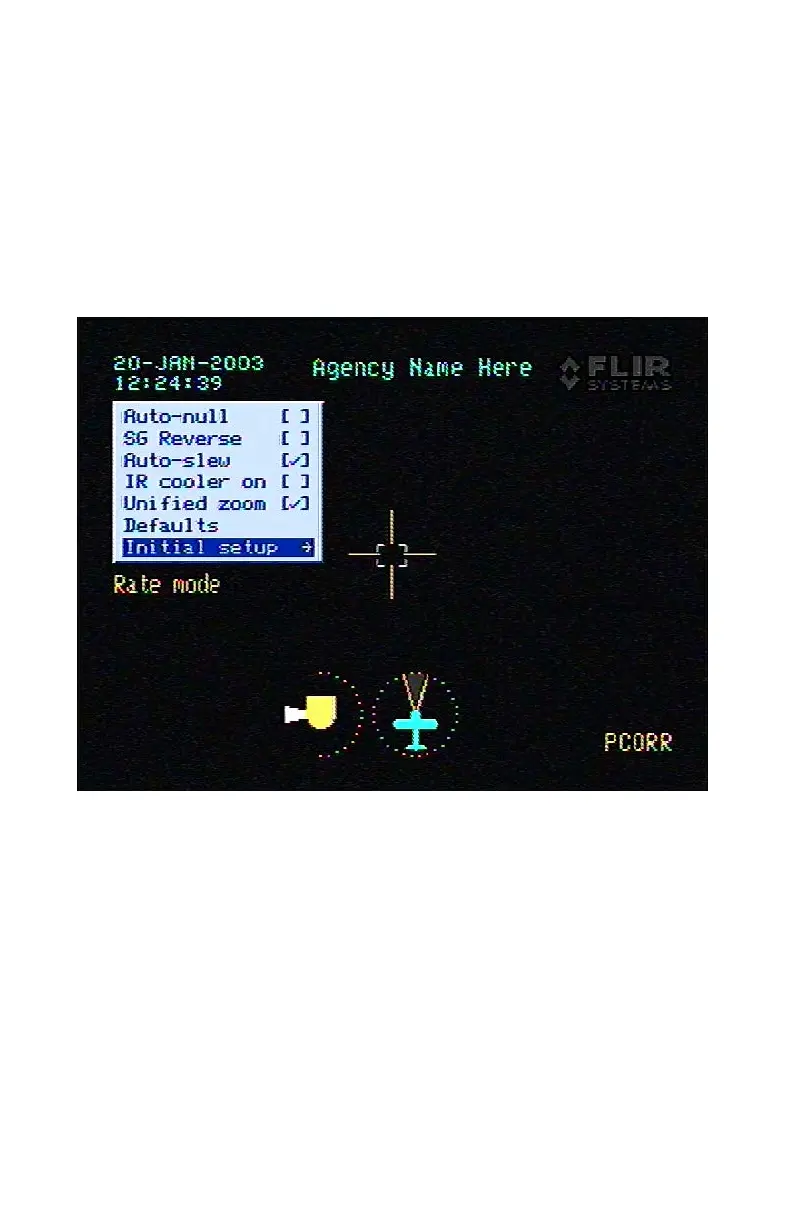

Figure 3-9. Top Level Menu
Exit Switch – if editing agency text or Date and time, saves changes and
exits the edit mode. If in a menu, exits the menu.
Strain Gauge – pressing the Strain Gauge up and down will select fields
in a menu, or increment and decrement the value of a field or character
when editing Date and time or Agency name.
FOCUS Rocker Switch – performs the same actions as the Strain
Gauge, moving among fields in Date and time edit, among character
positions in Agency name edit, or among menu items in a menu.
ZOOM Rocker Switch – increments or decrements a field value in Date
and time edit or a character value in Agency name edit.
