11.2 External battery charging
➲ External battery charger is an extra option.
You can also charge the battery by using the external battery charger. The battery
status during charging is indicated by a number of LEDs.
10379603;a4

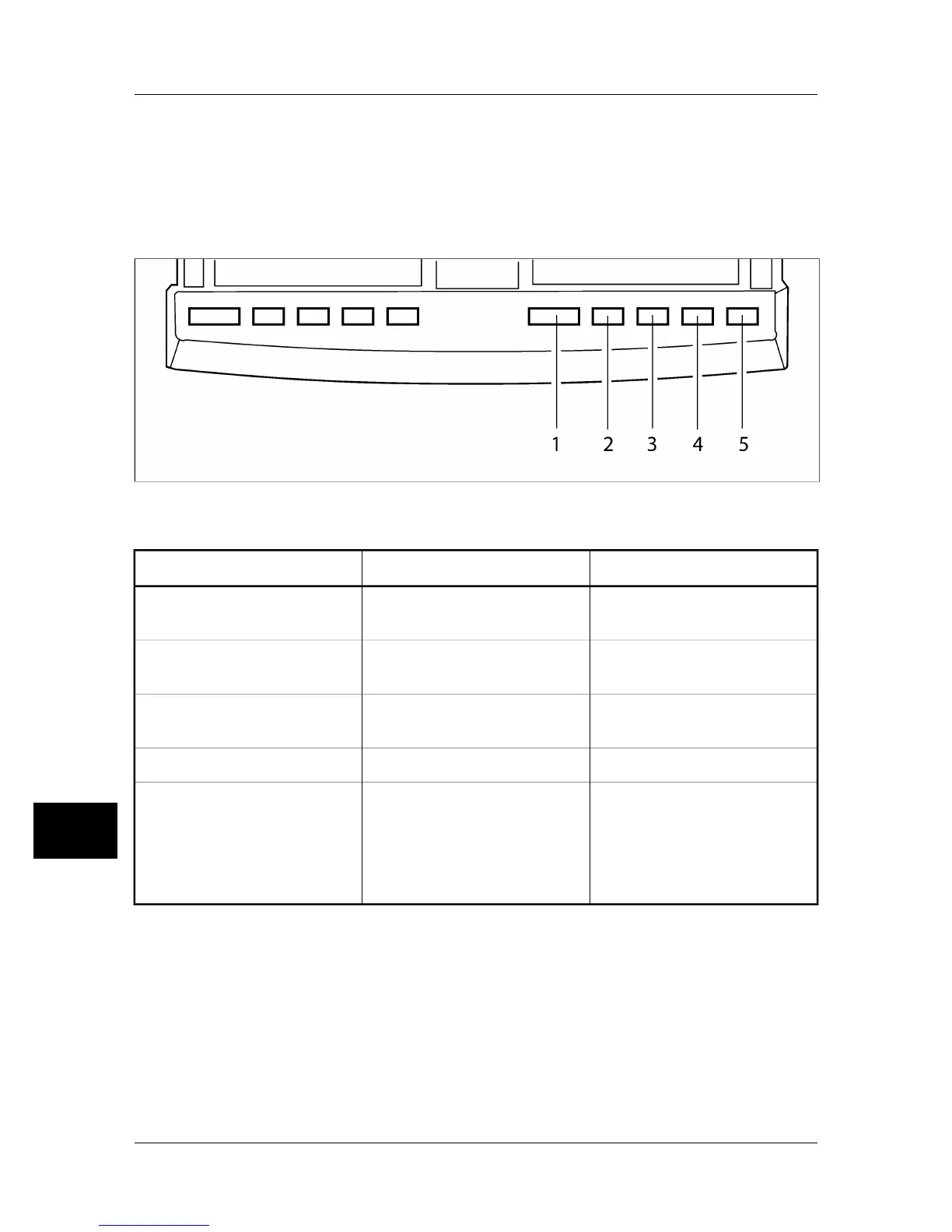

Figure 11.3 LED indicators on the external battery charger
Figure 11.4 LED indicators – explanations of callouts
Color & modeLED indicator no.Situation
Fixed red light1The charger is under power, but
no battery is inserted
Fixed green light1The charger is under power, and
a battery is inserted
Flashing green light1The battery is too cold or too
warm
Flashing red light1The battery is out of order
Pulsing green light from LED no.
5 to LED no. 2
Each LED represents 25 % bat-
tery capacity and will be lit ac-
cordingly.
5-2The battery is now being
charged
11
76 Publ. No. 1558439 Rev. a156 – ENGLISH (EN) – February 28, 2006
11 – Electrical power system
