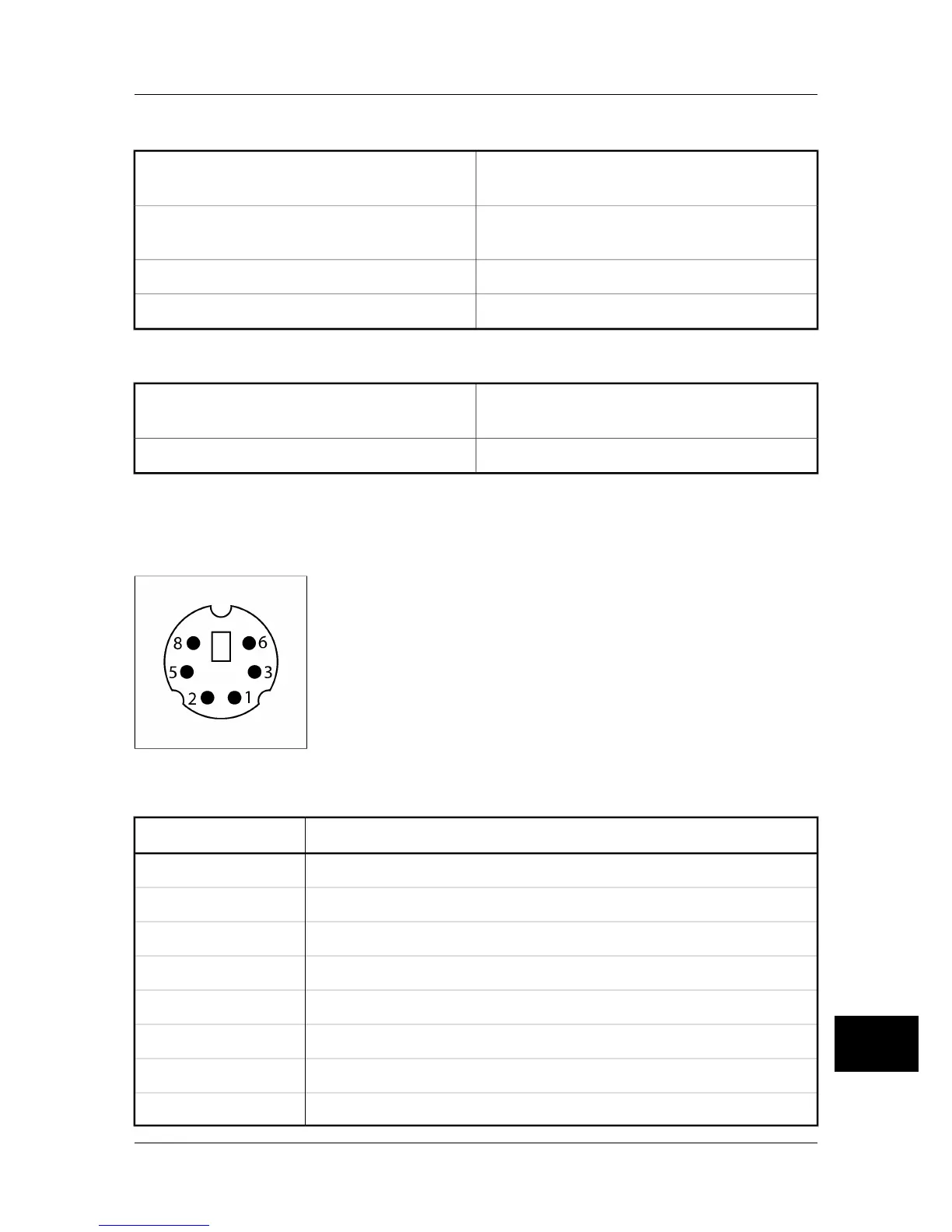

14.7 Physical specifications
0.8 kg (1.76 lb), including battery and 27.4 mm
lens
Weight
259 × 80 × 135 mm (10.2 × 3.2 × 5.3") with 27.4
mm lens
Size (L × W × H)
Standard, 1/4"-20Tripod mount
Plastics & rubberHousing
14.8 Communications interfaces
Image transfer to PC
USB Rev 2.0 (full speed 12 Mbit)
USB
Image transfer to PCRS-232 (optional)
14.9 Pin configurations
14.9.1 RS-232/USB connector
10384403;a4
Figure 14.1 Pin configuration RS-232/USB (on camera operator’s side)
Figure 14.2 Pin configuration
Signal namePin
USB -1
RS-232_TX2
GND3
N/C4
USB POWER5
USB +6
N/C7
RS-232_RX8
14
Publ. No. 1558439 Rev. a156 ENGLISH (EN) February 28, 2006 85
14 Technical specifications & dimensional drawings
