Limitorque

L120-190 through L120-2000 FCD LMENIM1203-01-A4 – 05/15

ﬂowserve.com

Table 4.4 – Maximum Drive Sleeve Turns

Limit Switch Gearing PIC Gearing

Actuator Size W.G. Ratio 4-Gear 5-Gear PIC or R/I (270) RVDT(90)

L120-190 13.3:1 3110 31100 13706 4569

33:1 1250 12500 5521 1837

60:1 690 6900 3037 1012

85:1 N/A N/A N/A N/A

L120-420 10.33:1 N/A N/A N/A N/A

16:1 3300 33000 11405 3797

41:1 1280 12800 4445 1481

57:1 910 9100 3195 1065

80:1 N/A N/A N/A N/A

L120-800 12.67:1 N/A N/A N/A N/A

19:1 2850 28500 9586 3195

49:1 1050 10500 3720 1240

58:1 N/A N/A N/A N/A

86:1 N/A N/A N/A N/A

L120-2000 43:1 1210 12100 4234 1413

71:1 740 7400 2566 855

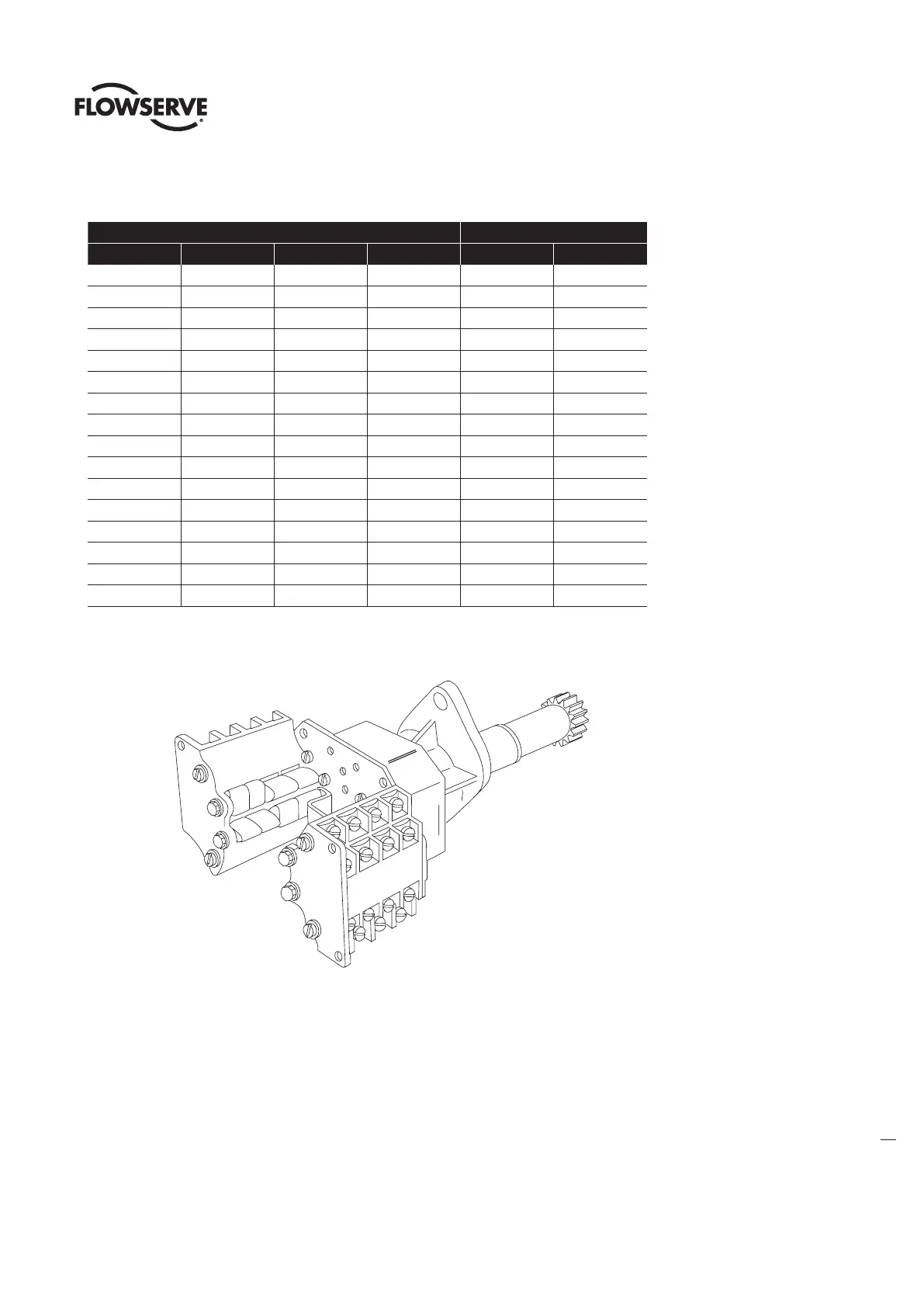

Figure 4.4 – Geared Limit Switch

Set the limit switch as shown on the following page. All item letters and piece numbers refer to Figure 4.5.
