Flowserve Limitorque L120-190 - Figure 7.8 -L120-2000 Top View (Refer to Table 8.2 for Parts List)

Limitorque
®
L120-190 through L120-2000 FCD LMENIM1203-01-A4 – 05/15
44

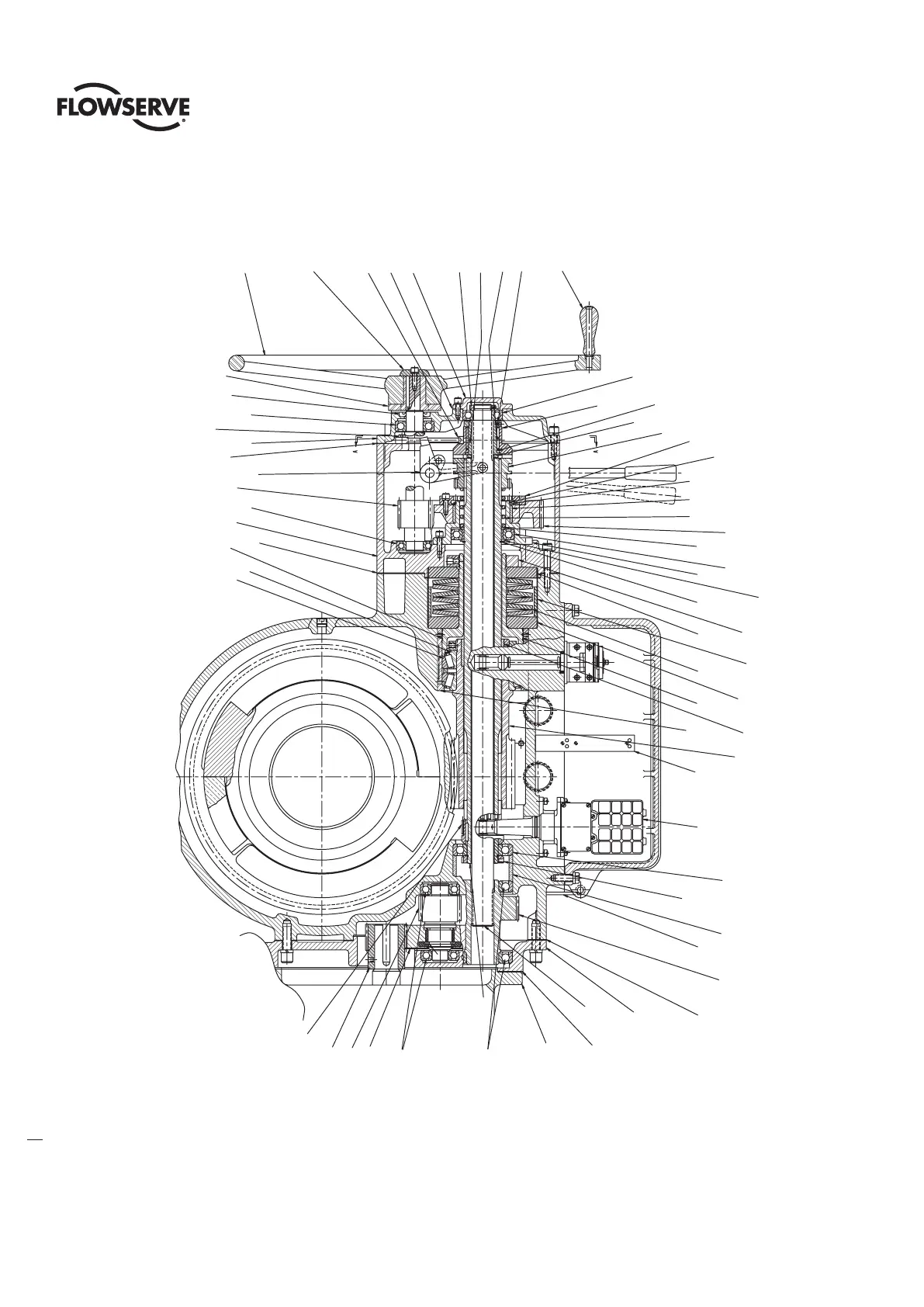

Figure 7.8 -L120-2000 Top View (Refer to Table 8.2 for parts list)
83
86
11
18
2
54-1
41
73
56-13
54-11
52-6
44-1
54-6
52-1
76 56-7
32-1 32-1 31-2
52-9 52-8
Motor
105
77
22
101
81-1 81-2
31-2
52-8
305 200-1
30-1
30-2
16-1
16-8
16-3
16-5
16-10
16-2
16-2
79
84
49
46
85 89
87
33
82-6
82-1
82-7 82-4
82-3 82-2 88 5 80-1 4 54-2
52-1
182
78
952-7
53-3
53-8
162
70
17
Drawing 01-413-0036-4
Drawing 01-413-0036-4
